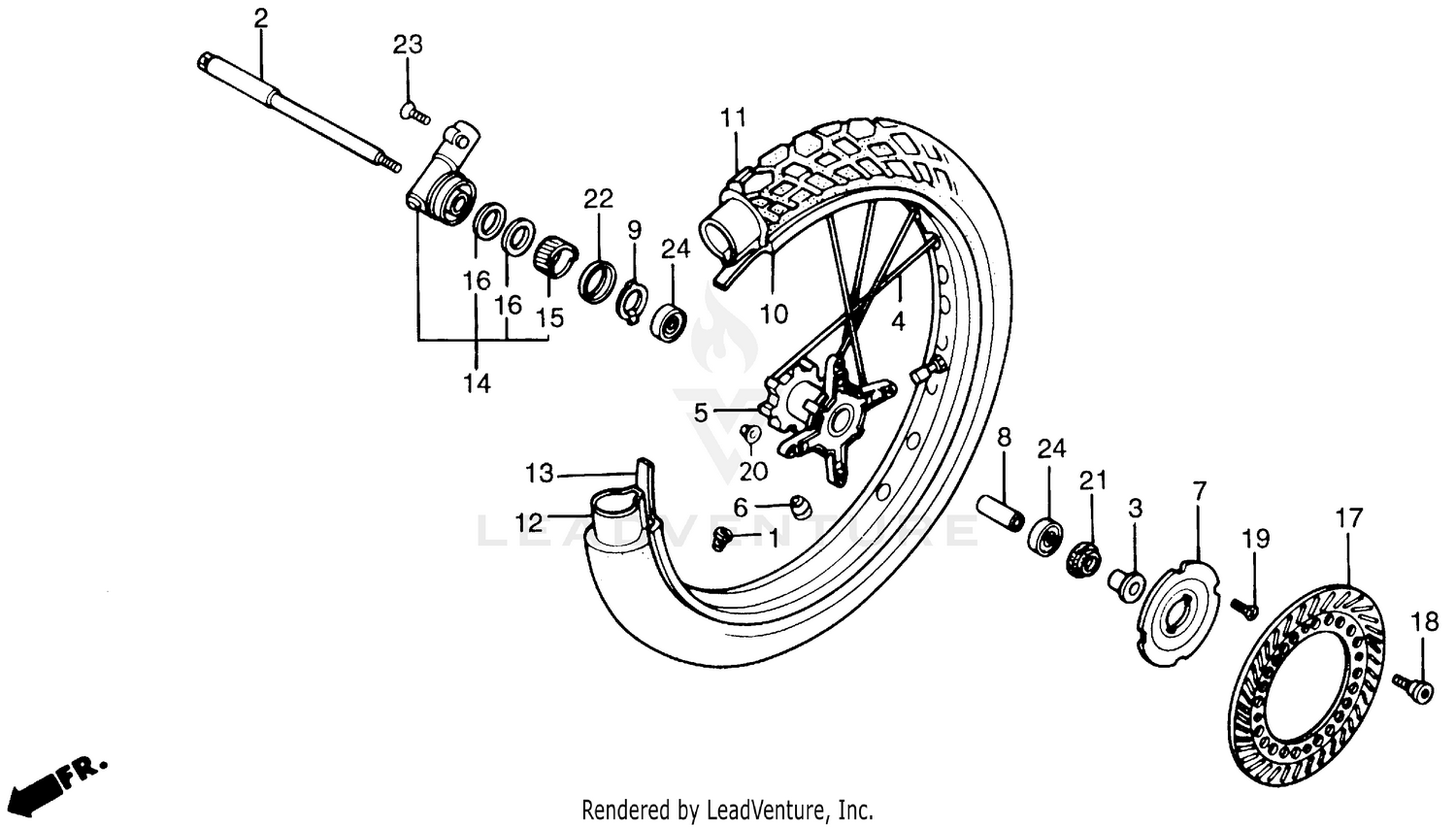

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, RIM HOLE
42717-329-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE, FR. WHEEL
44301-KBR-000
|
$71.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE, FR. WHEEL
44301-KF0-000
Superseded by 44301-KBR-000
|
$71.76 | ||
|
Unavailable |
|||
|
#3
COLLAR, FR. WHEEL
44311-MG3-000
|
$21.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPOKE SET, FR. (A9X258)
446A0-MN9-000
Superseded by 44610-MN9-405
|
$4.35 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, FR. (A9X258)
44610-MN9-405
|
$4.35 | ||
|
Unavailable |
|||
|
#5
HUB, FR. WHEEL *NH129M* (MAX GRAY METALLIC)
44601-MN9-010ZB
|
$231.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
BALANCER (20G)
44606-283-000
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, FR. HUB
44610-MN9-000
Superseded by 44610-MN9-010
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, FR. HUB
44610-MN9-010
|
$16.42 | ||
|
Unavailable |
|||
|
#8
COLLAR, FR. WHEEL DISTANCE
44620-MG3-000
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER, GEAR BOX
44680-MA0-000
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
RIM, FR. WHEEL
44701-MN9-671
|
$339.53 | ||
|
Unavailable |
|||
|
#11
TIRE, FR. (90/90-21) (54S TW41) (BS) (NOT AVAILABLE)
44711-MN9-013
|
$54.30 | ||
|
Unavailable |
|||
|
#11
TIRE, FR. (90/90-21) (54S K560) (DUNLOP) (NOT AVAILABLE)
44711-MN9-015
|
$86.70 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
0Y400-33100
Superseded by 44712-446-631
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
08400-33100
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
08400-34010
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-MC4-005
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-340-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-400-004
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-437-971
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#13
FLAP, TIRE (BS)
44713-MG7-003
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLAP, TIRE (1.40/1.60-21) (DUNLOP)
44713-400-004
|
$7.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)
44800-MN9-671
|
$73.25 | ||
|
Unavailable |
|||
|
#15
GEAR, SPEEDOMETER
44806-KF0-000
|
$42.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPEEDOMETER GEAR
44809-402-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
DISK, FR. BRAKE
45351-MN9-010
Superseded by 45351-MN9-020
|
$303.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
DISK, FR. BRAKE
45351-MN9-020
|
$303.62 | ||
|
Unavailable |
|||
|
#18
BOLT, FR. DISK (8X24)
90105-MN9-870
|
$5.13 | ||
|
Unavailable |
|||
|
#18
BOLT, RR. DISK (8X22)
90105-ML0-730
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, OVAL (4X10)
90204-MM9-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (21X37X7) (ARAI)
90755-229-003
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (21X37X7) (ARAI)
90755-229-005
Superseded by 90755-229-003
|
$6.35 | ||
|
Unavailable |
|||
|
#22
DUST SEAL (40X50X5) (ARAI)
91258-410-003
Superseded by 91258-410-013
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUST SEAL (40X50X5) (ARAI)
91258-410-006
Superseded by 91258-410-013
|
$11.87 | ||
|
Unavailable |
|||
|
#22
DUST SEAL (40X50X5) (ARAI)
91258-410-013
|
$11.87 | ||
|
Unavailable |
|||
|
#23
SCREW, OVAL (5X20)
93700-05020-0A
|
$0.53 | ||
|
Unavailable |
|||
|
#24
BEARING, RADIAL BALL (6202U)
96140-62020-10
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
