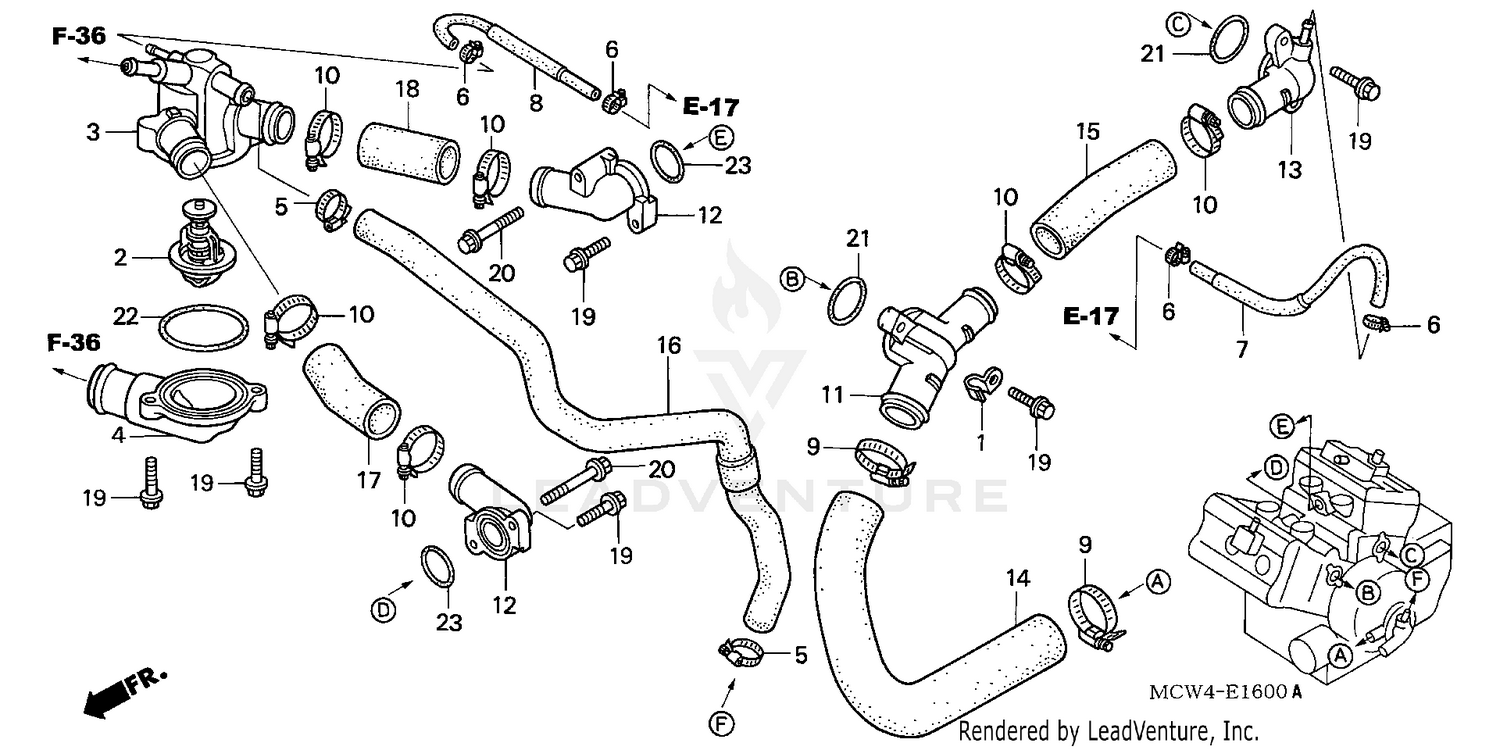

Water Pipe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP B, TUBE
16106-KW7-900
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMOSTAT ASSY.
19300-MBG-003
|
$57.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
CASE, THERMOSTAT
19310-MCW-000
|
$150.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, THERMOSTAT
19315-MBG-000
|
$45.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, WATER HOSE (A)
19505-KS6-700
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, RADIATOR HOSE
19507-MAT-000
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, WATER JOINT
19511-MBG-D00
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, THERMOBODY
19512-MCW-000
Superseded by 19512-MCW-010
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, THERMOBODY
19512-MCW-010
|
$10.42 | ||
|
Unavailable |
|||
|
#9
CLAMP, HOSE (24-32MM)
19516-ML7-691
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT A, WATER
19522-MW4-000
|
$22.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, WATER
19523-MT3-000
|
$16.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT B, WATER
19524-MBG-D00
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE A, WATER
19525-MBG-000
|
$24.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE B, WATER
19526-MBG-000
|
$13.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, WATER BYPASS
19527-MCW-000
|
$84.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, FR. HEAD WATER
19528-MBG-000
Superseded by 19528-MCW-H00
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, FR. HEAD WATER
19528-MCW-H00
|
$7.93 | ||
|
Unavailable |
|||
|
#18
HOSE, RR. HEAD WATER
19529-MBG-000
Superseded by 19529-MCW-H00
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, RR. HEAD WATER
19529-MCW-H00
|
$7.93 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X22)
90010-GHB-660
Superseded by 96001-06022-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X40)
90010-GHB-710
Superseded by 96001-06040-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
Unavailable |
|||
|
#21
O-RING (23X2.4)
91304-MCP-900
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (47.5X2)
91311-MCP-901
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (21.2X2.4) (ARAI)
91331-MCP-900
Superseded by 91331-PC9-003
|
$3.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
O-RING (21.2X2.4) (ARAI)
91331-PC9-003
|
$3.93 | ||
|
Unavailable |
|||
