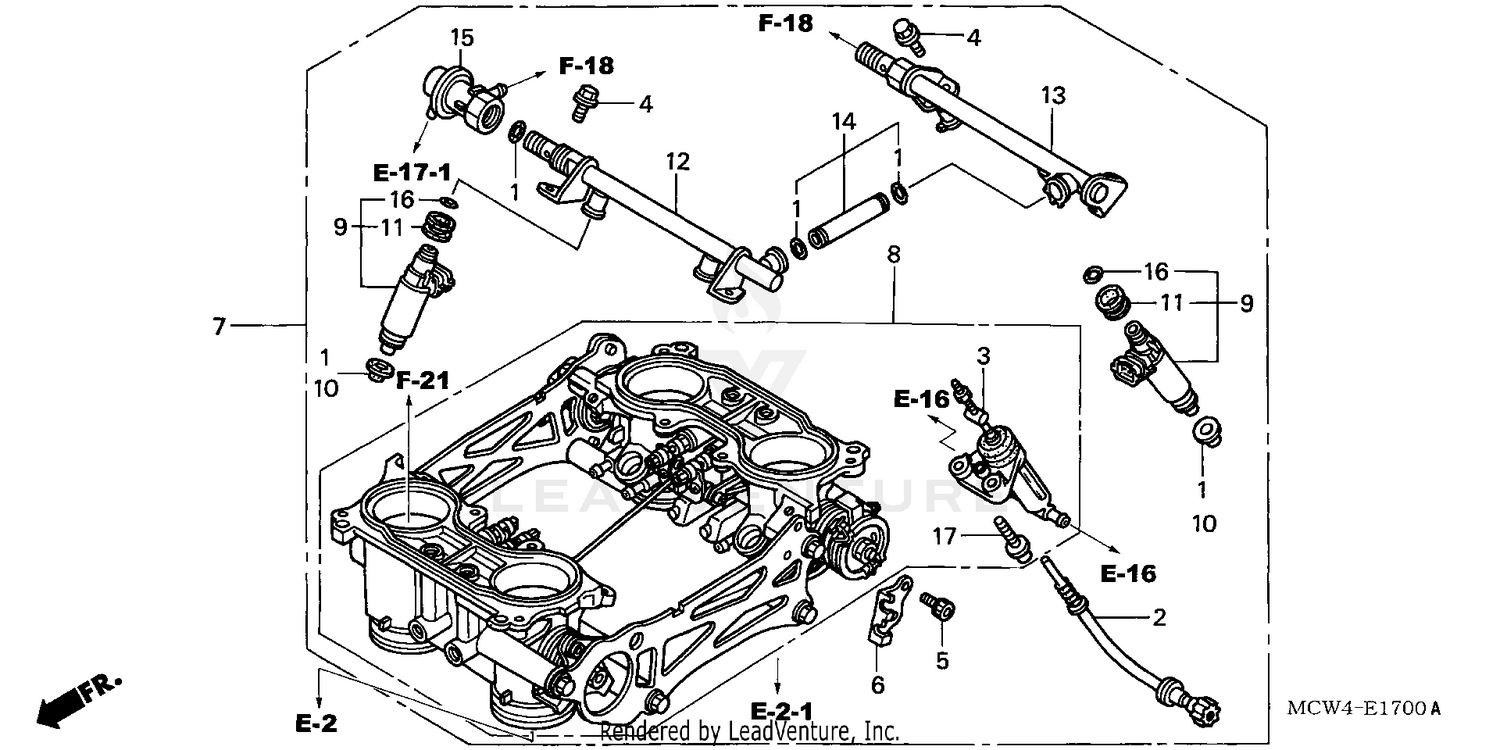

Throttle Body (assy.) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-MCW-003
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW SET, STOP
16029-MCW-003
|
$49.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
WAX ASSY.
16044-MCW-003
|
$88.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE (6X12)
16080-MCJ-003
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SOCKET (5X8)
16081-MCW-003
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, WIRE (FRAME NO.)
16169-MCW-013
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY ASSY., THROTTLE (GQ33B A)
16400-MCW-L03
|
$1,710.43 | ||
|
Unavailable |
|||
|
#8
BODY ASSY., THROTTLE
16401-MCW-L01
|
$1,869.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
INJECTOR ASSY., FUEL
16450-MCW-004
|
$232.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL RING, INJECTOR
16472-MCW-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION RING, INJECTOR
16473-P7A-004
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, FR. FUEL
16610-MCW-003
|
$79.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, RR. FUEL
16620-MCW-003
|
$74.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE SET, FUEL
16630-MCW-003
|
$35.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
REGULATOR ASSY., PRESSURE
16740-MCW-013
|
$88.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (7.8X1.9)
91301-P7A-004
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-WASHER (6X20)
93892-06020-00
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-WASHER (6X20)
93892-06020-10
Superseded by 93892-06020-00
|
$0.90 | ||
|
Unavailable |
|||
