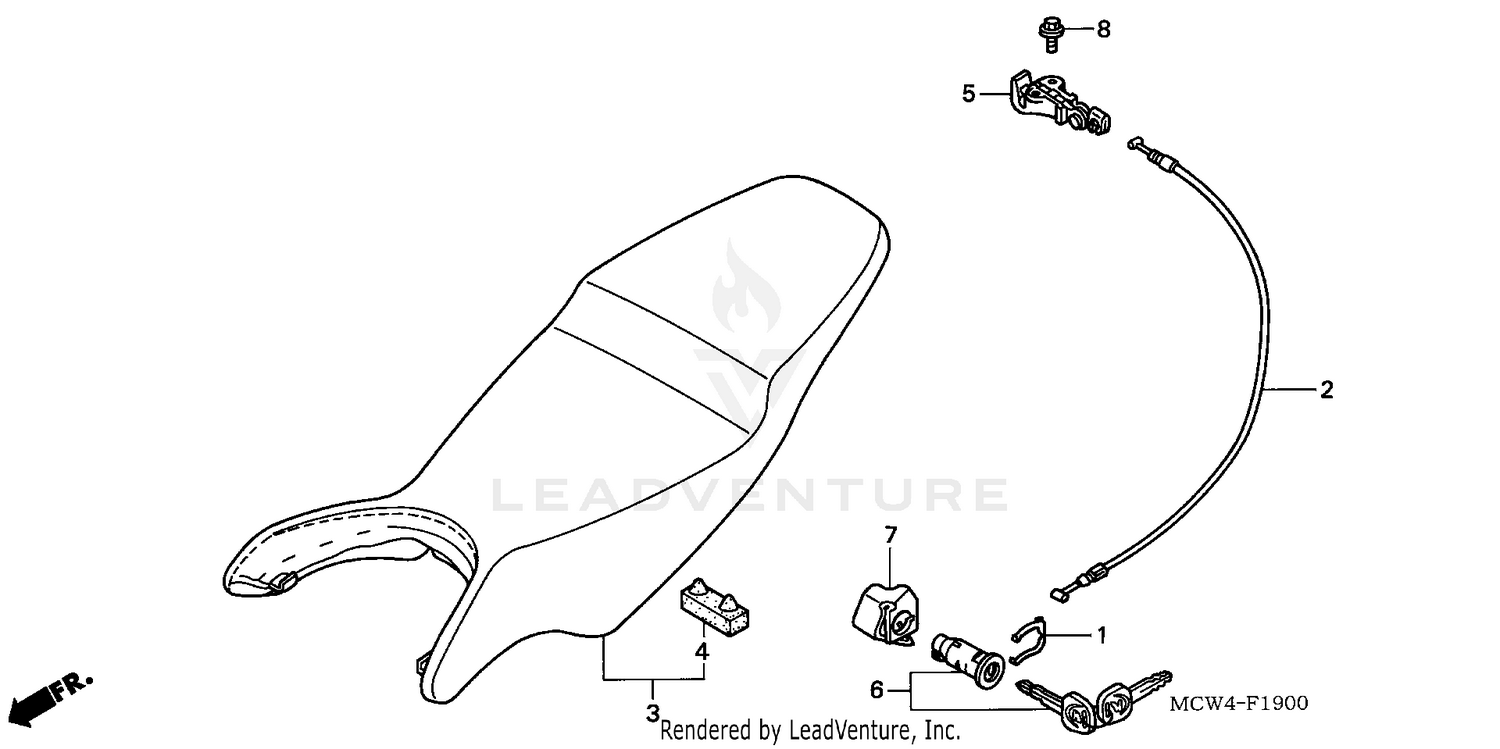

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, LOCK KEY SETTING
75581-GN8-920
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE, SEAT LOCK
77156-MCW-D00
|
$12.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAT ASSY., DOUBLE
77200-MCW-D00
|
$463.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER B, SEAT SETTING
77205-286-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOOK, SEAT CATCH
77220-KY6-010
|
$35.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
KEY, SEAT LOCK
77234-MBL-611
|
$39.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, SEAT LOCK CABLE
77242-MCW-D00
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
