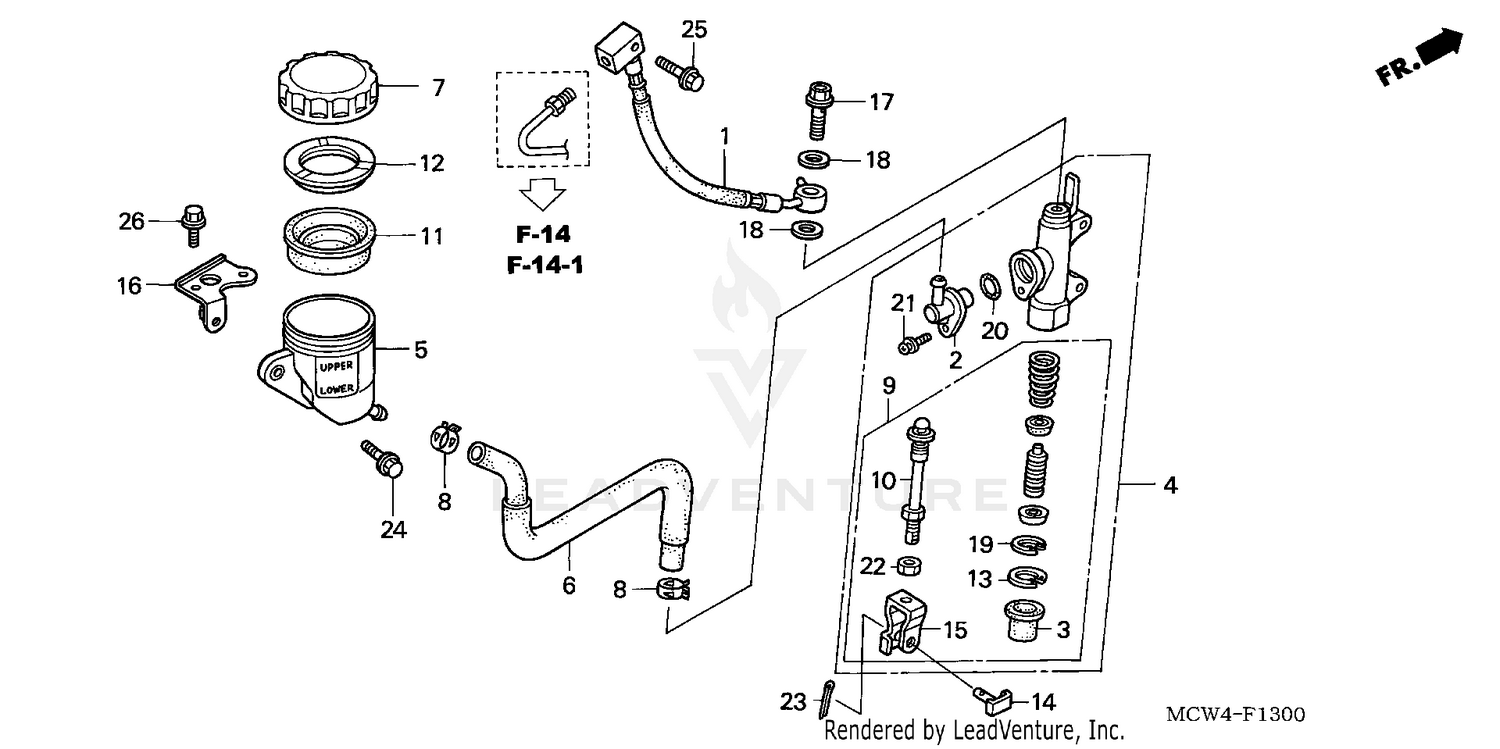

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RR. MASTER CYLINDER JOINT
43310-MCW-D01
|
$53.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECTOR, MASTER CYLINDER
43503-MB2-006
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., RR.
43510-MCW-D01
Superseded by 43510-MCW-D02
|
$191.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., RR.
43510-MCW-D02
|
$191.20 | ||
|
Unavailable |
|||
|
#5
CUP, MASTER CYLINDER OIL
43511-MA6-006
|
$49.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, RR. MASTER CYLINDER
43512-MCW-D01
|
$37.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, OIL CUP
43513-MY1-006
|
$35.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, MASTER CYLINDER OIL HOSE
43514-445-771
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON SET, RR. MASTER CYLINDER
43520-MCW-D01
Superseded by 43520-MCW-D02
|
$80.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON SET, RR. MASTER CYLINDER
43520-MCW-D02
|
$80.93 | ||
|
Unavailable |
|||
|
#10
ROD, PUSH
43530-MCW-D01
|
$30.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM
45520-300-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, DIAPHRAGM
45521-MJ6-006
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP, MASTER CYLINDER
46182-500-013
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, BRAKE ROD
46503-MAL-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT, BRAKE ROD
46504-MAL-601
|
$15.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, OIL CUP
50280-MCW-D00
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CIRCLIP, PISTON
90651-MBG-006
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (8MM)
94002-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, COTTER (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
95701-06016-07
|
$1.70 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X25)
95701-06025-07
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
