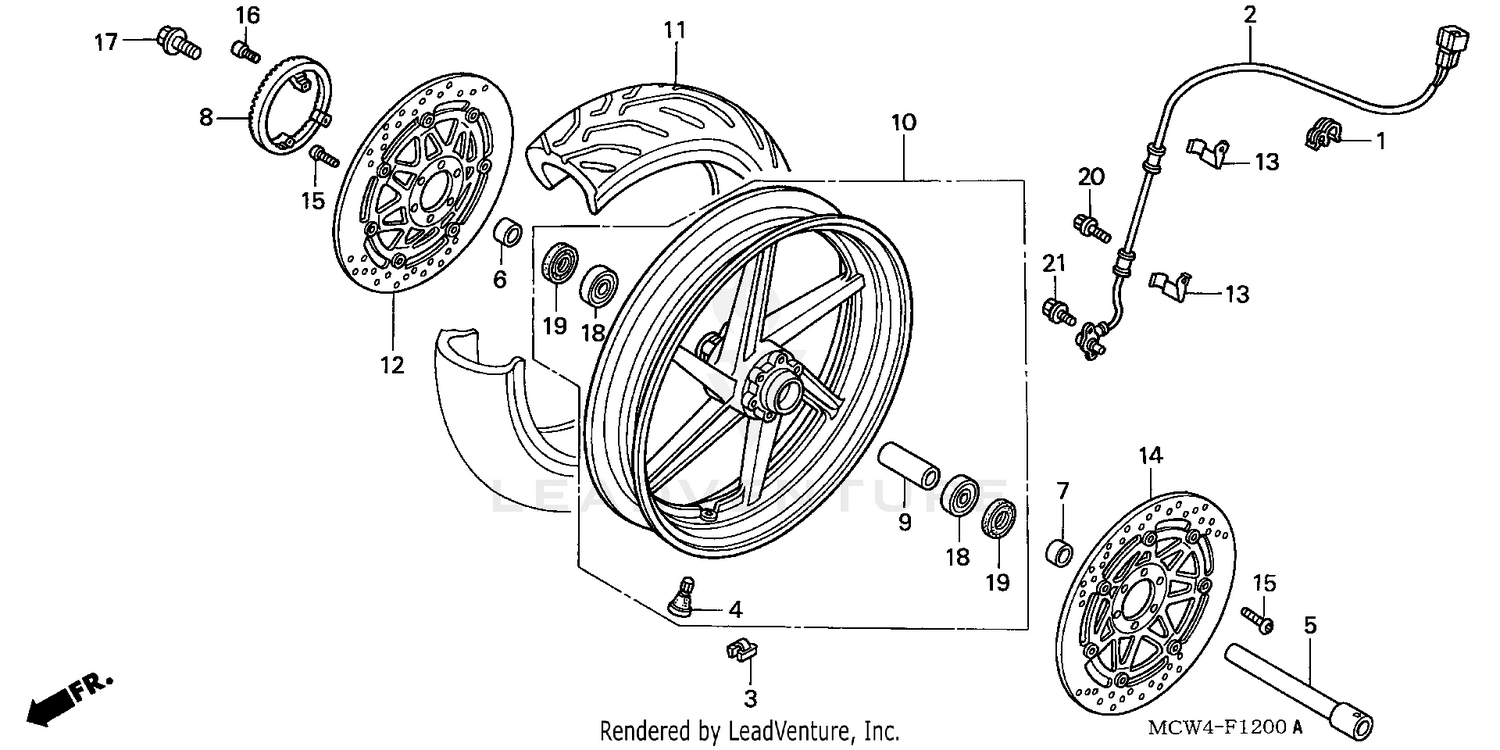

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, PIPE
17368-KV7-671
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
SENSOR, FR. WHEEL SPEED
38520-MCW-D11
|
$218.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
WEIGHT, BALANCE (10G)
42704-MB0-000
Superseded by 42704-MCF-D60
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)
42704-MCF-D60
|
$15.44 | ||
|
Unavailable |
|||
|
#3
WEIGHT, BALANCE (20) WEIGHT, BALANCE (30G)
42705-MCF-D60
|
$17.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WEIGHT, BALANCE (30) WEIGHT, BALANCE (10G)
42706-MCF-D60
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE, RIM (PIRELLI) (NOT AVAILABLE)
42753-MCF-008
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE, RIM (BS) VALVE, RIM (MICHELIN)
42753-ML7-003
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE, RIM (DUNLOP)
42753-ML7-004
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE, FR. WHEEL
44301-MBZ-D00
|
$55.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, R. FR. WHEEL SIDE
44311-MAT-E20
|
$15.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, FR. WHEEL SIDE
44312-MZ1-610
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
PULSER RING, FR.
44515-MCW-D11
|
$144.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, FR. AXLE DISTANCE
44620-MCW-D00
|
$25.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
WHEEL SUB-ASSY., FR. (TYPE2)
44650-MCW-D01ZB
|
$700.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, FR. (120/70ZR17) (M/C) (BS)
44711-MCW-D01
Superseded by 44711-MCW-D04
|
$159.97 | ||
|
Unavailable |
|||
|
#11
TIRE, FR. (120/70ZR17) (M/C) (DUNLOP)
44711-MCW-D02
|
$163.31 | ||
|
Unavailable |
|||
|
#11
TIRE, FR. (120/70ZR17) (M/C) (METZELER) (NOT AVAILABLE)
44711-MCW-D03
|
$165.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
DISK, R. FR. BRAKE
45120-MCW-H11
|
$552.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
DISK, R. FR. BRAKE
45120-MCW-D12
Superseded by 45120-MCW-H11
|
$552.76 | ||
|
Unavailable |
|||
|
#13
CLAMP, SPEED SENSOR CORD
45161-MCW-D10
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
DISK, L. FR. BRAKE
45220-MBG-013
Superseded by 45220-MCW-H01
|
$552.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
DISK, L. FR. BRAKE
45220-MCW-H01
|
$552.76 | ||
|
Unavailable |
|||
|
#15
BOLT, DISK (6X17)
90106-MBB-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, TORX (5X14)
90131-MY3-781
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FR. AXLE
90305-ML7-000
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6204UU)
91052-MAE-004
|
$33.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL (28X47.2X7) (ARAI)
91252-MC4-013
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
