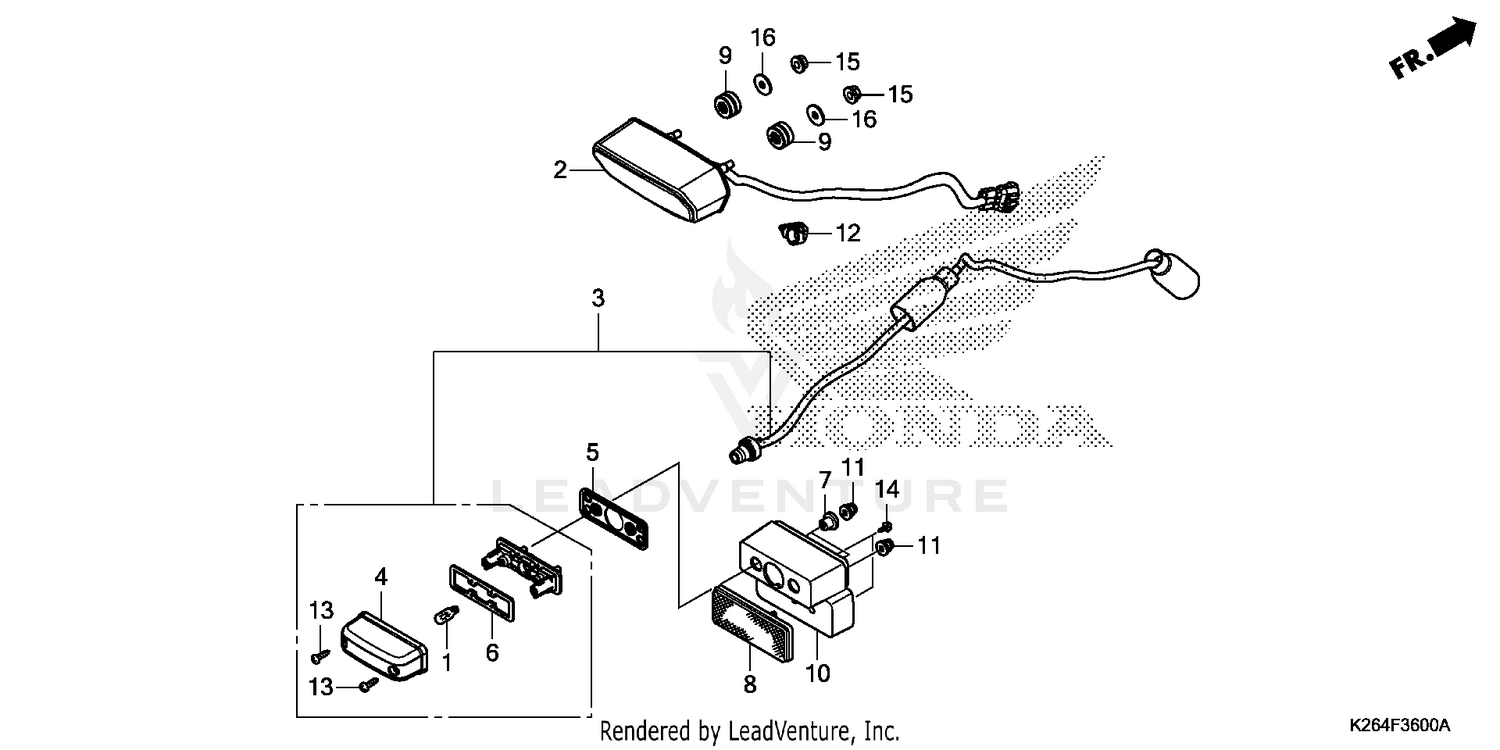

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB, POSITION (12V 5W) (STANLEY)
33301-K07-901
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAILLIGHT UNIT (COO)
33701-K26-305
|
$174.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
LIGHT ASSY., LICENSE (12V 5W) (COO)
33720-K26-305
|
$83.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, LICENSE (COO)
33722-K26-305
|
$11.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, LICENSE LIGHT
33728-KPP-T00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, LENS
33729-MCZ-003
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, REGULATOR MOUNTING
33731-MJ0-940
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
REFLECTOR, REFLEX
33741-KPL-902
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, SEAT STAY MOUNTING
77209-K26-900
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, LICENSE LIGHT
80201-KYJ-920
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U (5MM)
90301-KWN-901
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP, WIRE HARNESS (25MM)
90683-SA0-003
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, TAPPING (4X16)
93901-24480
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING (4X12)
93903-44380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, PLAIN (6MM)
94103-06000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
