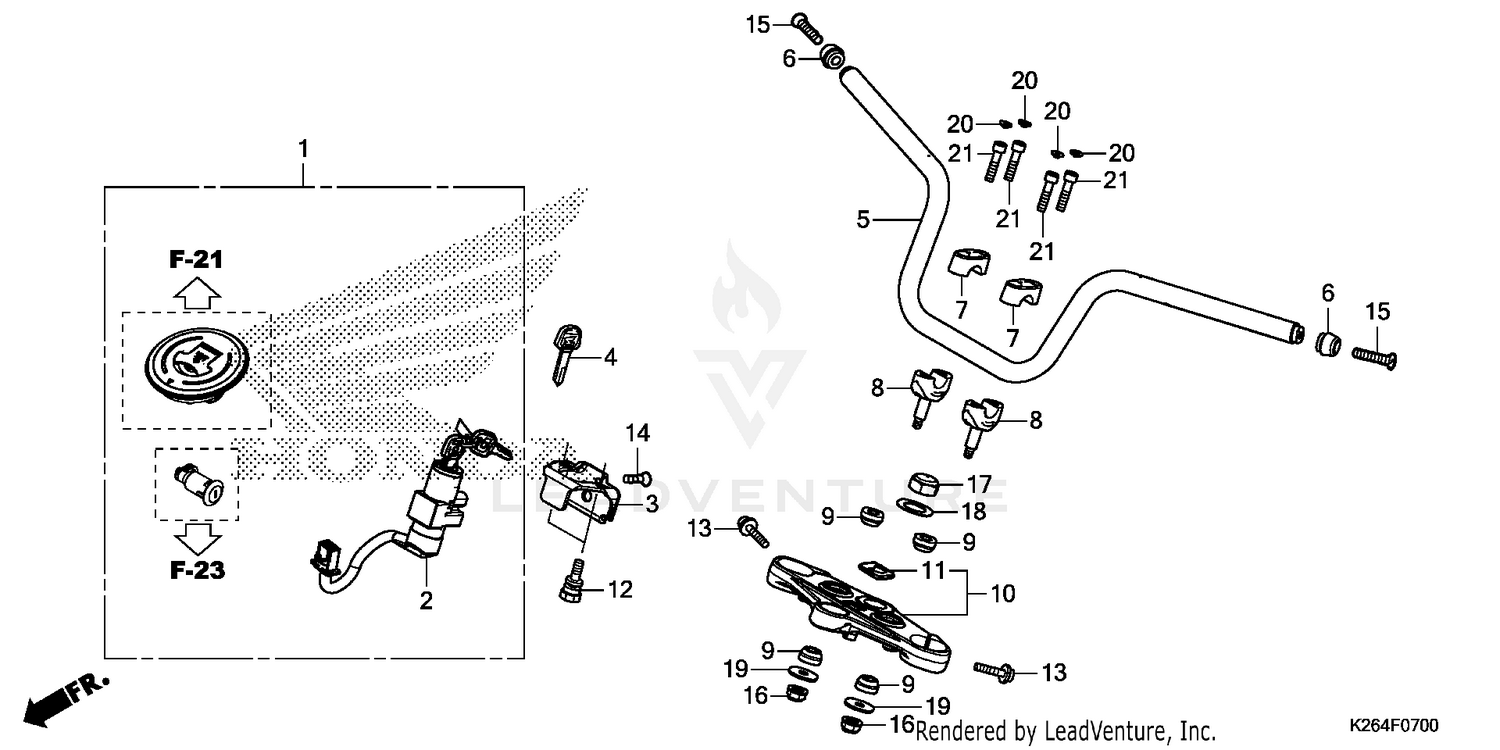

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KEY SET
35010-K26-910
Superseded by 35010-K26-911
|
$161.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH ASSY., COMBINATION & LOCK
35100-K26-901
|
$100.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, COMBINATION SWITCH
35105-K26-900
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY, BLANK
35121-KEE-630
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
HANDLEBAR (COO)
53100-K26-305
|
$40.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
WEIGHT A, HANDLE
53102-K26-900
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, HANDLEBAR (UPPER) *NH105* (MAT BLACK)
53131-K20-900ZC
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, HANDLE (LOWER)
53132-K26-900
|
$28.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, HANDLE CUSHION
53133-K26-900
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRIDGE, FORK TOP
53300-K26-900
|
$84.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM, PRODUCT (MARUI)
86150-KPG-901
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM, PRODUCT (UEHARA)
86150-KPG-902
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM, PRODUCT (SHINKO)
86150-KTJ-C60
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BREAK OFF
90107-KPP-860
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE SOCKET (8X32)
90160-K26-900
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, U-LOCK FLAT (6X12)
90164-028-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, OVAL (6X45)
90191-KWB-600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U (8MM)
90304-KPG-901
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, STEERING STEM
90305-KGH-900
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, STEERING STEM
90503-KGA-900
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, HANDLE HOLDER (LOWER)
90535-K26-900
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, SOCKET BOLT
91456-371-770
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET (8X35)
96700-08035-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
