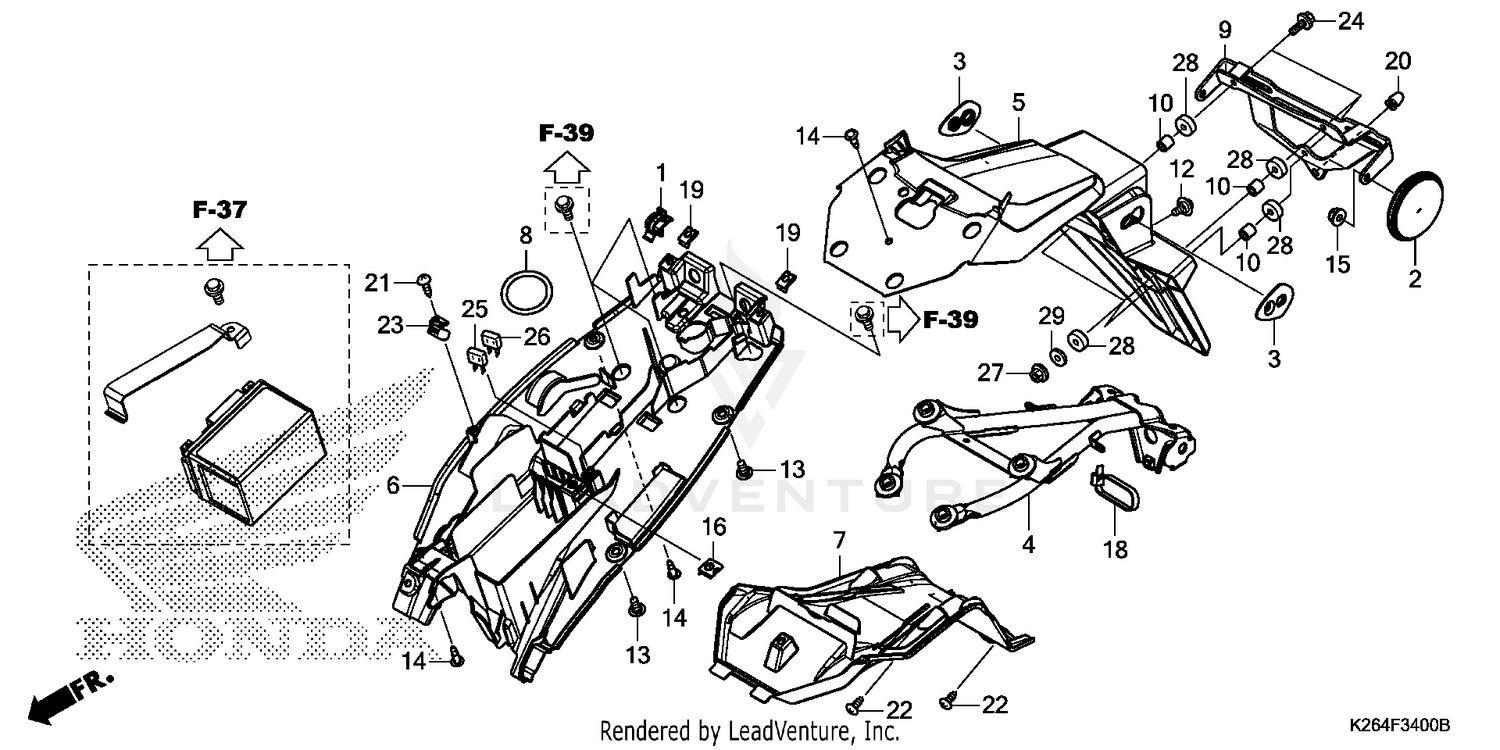

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, WIRE HARNESS
32161-393-003
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
REFLECTOR, RR. REFLEX (RED)
33741-HB9-641
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, TURN SIGNAL (RR.)
33941-K26-950
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, RR. FENDER
50188-K26-950
|
$120.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER SET A, RR. (TYPE1) (WL)
80100-K26-900ZB
|
$20.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
FENDER B, RR.
80101-K26-900
|
$17.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, RR. (INNER)
80102-K26-900
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, TOOL
80124-K26-900
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, NUMBER PLATE
84701-K26-910
|
$63.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, NUMBER BRACKET
84702-K26-950
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6MM)
90111-KZZ-900
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, VISOR SPECIAL SETTING
90115-KW7-900
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#14
RIVET, PUSH
90116-MCS-G00
|
$1.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT, U (6MM) (FUJI SEIMITSU)
90301-KGH-901
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SPRING (6MM)
90320-MM5-000
|
$3.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CLIP (5MM)
90677-KAN-T00
|
$0.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PLUG, CONE TYPE
90899-422-610
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TAPPING (4X12)
93903-24310
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLIP, WIRE (2X78)
94591-27000
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X25)
95801-06025-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE, MINI (15A) (Honda Code 4853438)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
|
#27
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
RUBBER, NUMBER BRACKET
84703-K26-950
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER (6MM)
90485-286-000
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
