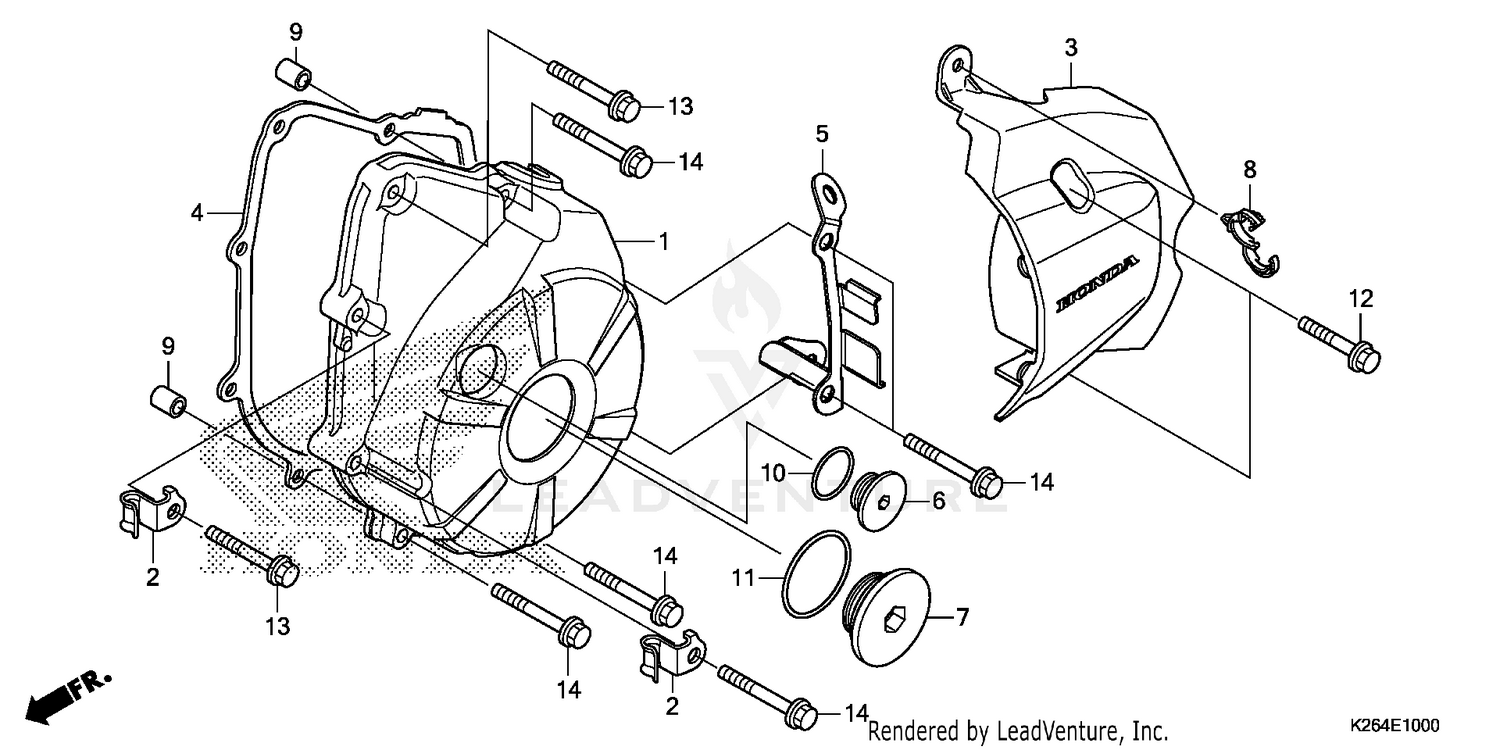

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11341-KYZ-T00
|
$50.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP A, OIL TEMP SENSOR CORD
11346-KTR-940
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, L. RR.
11360-K26-900
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, L. CRANKCASE COVER
11395-KPH-901
Superseded by 11395-K73-T60
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, SIDE STAND SWITCH
35711-K26-900
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP (14MM)
90084-KWA-930
|
$12.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP (30MM)
90087-KTR-A00
|
$12.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, WIRE HARNESS
90684-ZA0-601
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL (8X12)
90702-KFM-900
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
O-RING (30MM)
91356-KWV-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X35) (Honda Code 2112209)
96001-06035-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
