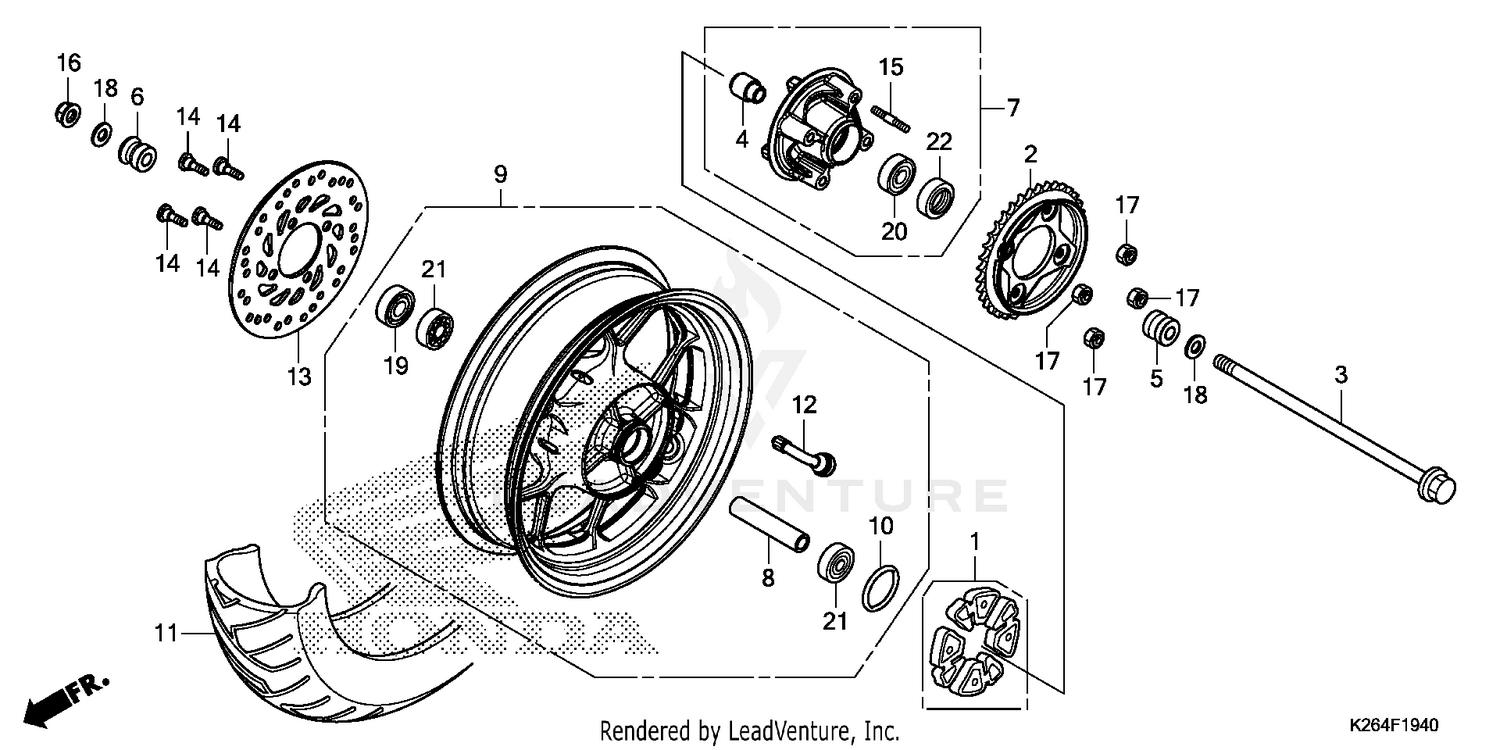

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER SET, WHEEL
06410-KWB-600
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (34T)
41200-K26-901
|
$51.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, RR. WHEEL
42301-K26-900
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
SLEEVE, RR. WHEEL
42303-KWB-600
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, L. RR. WHEEL SIDE
42311-K26-900
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, R. RR. WHEEL SIDE
42312-K26-900
|
$16.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLANGE SUB-ASSY., FINAL DRIVEN
42615-K26-920
|
$97.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RR. AXLE DISTANCE
42620-K26-900
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
WHEEL SUB-ASSY., RR. (COO)
42650-K26-305
|
$451.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (40.5X3) (NIPPON DUST KEEPER)
42653-001-004
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE,RR(VEE)
42711-K26-901
Superseded by 42711-K26-902
|
$78.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE,RR(VEE)
42711-K26-902
|
$78.26 | ||
|
Unavailable |
|||
|
#12
VALVE, RIM (DUNLOP) (NOT AVAILABLE)
42753-KJ9-004
|
$19.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE, RIM (INOUE)
42753-KJ9-005
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE, RIM (DUNLOP)
42753-KZK-901
Superseded by 42753-KJ9-004
|
$19.64 | ||
|
Unavailable |
|||
|
#13
DISK, RR. BRAKE
43251-K26-900
|
$42.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BRAKE DISK (8X24)
90105-KGH-900
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (8X18)
90128-KWB-600
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U (12MM) (FUJI SEIMITSU)
90306-KGH-901
|
$2.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, U (8MM) (FUJI SEIMITSU)
90309-KPH-971
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, RR. AXLE
90504-K26-900
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL (26X37X6) (ARAI)
90753-051-003
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL (26X37X6)
90753-051-005
Superseded by 90753-051-003
|
$9.62 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (6203) (NTN CORP.)
42630-GK4-003
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6203UU) (NSK)
91051-KWF-901
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6203) (NTN CORP.)
91053-MV1-003
Superseded by 42630-GK4-003
|
$20.22 | ||
|
Unavailable |
|||
|
#21
BEARING, RADIAL BALL (6301) (U)
91053-KSS-901
Superseded by 91053-KSS-902
|
$16.16 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6301) (U)
91053-KSS-902
|
$16.16 | ||
|
Unavailable |
|||
|
#21
BEARING, RADIAL BALL (6301U) (NTN)
91053-KWB-601
|
$14.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6301U) (NTN)
91053-KWW-641
Superseded by 91053-KWB-601
|
$14.05 | ||
|
Unavailable |
|||
|
#21
BEARING, RADIAL BALL (6301U) (NTN)
91053-KWW-642
Superseded by 91053-KWB-601
|
$14.05 | ||
|
Unavailable |
|||
|
#22
DUST SEAL (27X40X4.5) (NOK)
91251-KGH-902
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
