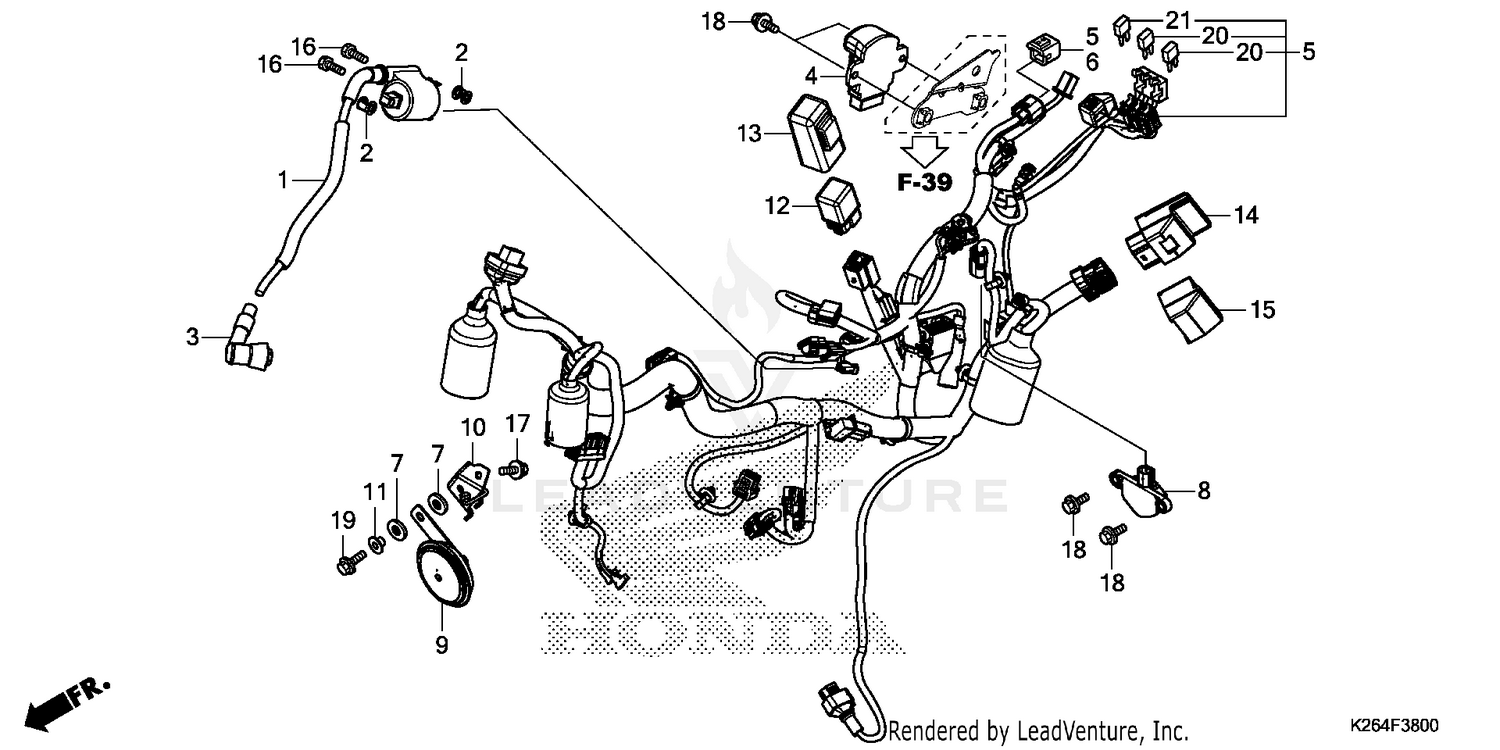

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION
30510-K26-901
|
$45.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, IGNITION COIL
30520-GFM-900
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR (NGK)
30700-KYZ-901
|
$17.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
RECTIFIER, REGULATOR
31600-K26-921
|
$188.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE HARNESS
32100-K26-910
|
$577.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, DUMMY (4P) (RED) (Honda Code 7679160)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, TAILLIGHT BRACKET
33714-KL3-620
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR ASSY., BANK ANGLE (M6)
35160-KVS-751
|
$123.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
HORN (HIGH)
38110-GET-671
|
$43.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, HORN
38111-K26-950
|
$13.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, HORN SETTING
38117-KYZ-T00
|
$0.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY, STARTER
38501-GFM-901
|
$36.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUSPENSION, STARTER RELAY
38506-KYK-910
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
PGM-FI UNIT
38770-K26-911
|
$285.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
SUSPENSION, ENGINE CONTROL UNIT
38771-KZL-930
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X20)
92101-06020-4J
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X10)
95701-06010-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE, MINI (15A) (Honda Code 4853438)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
