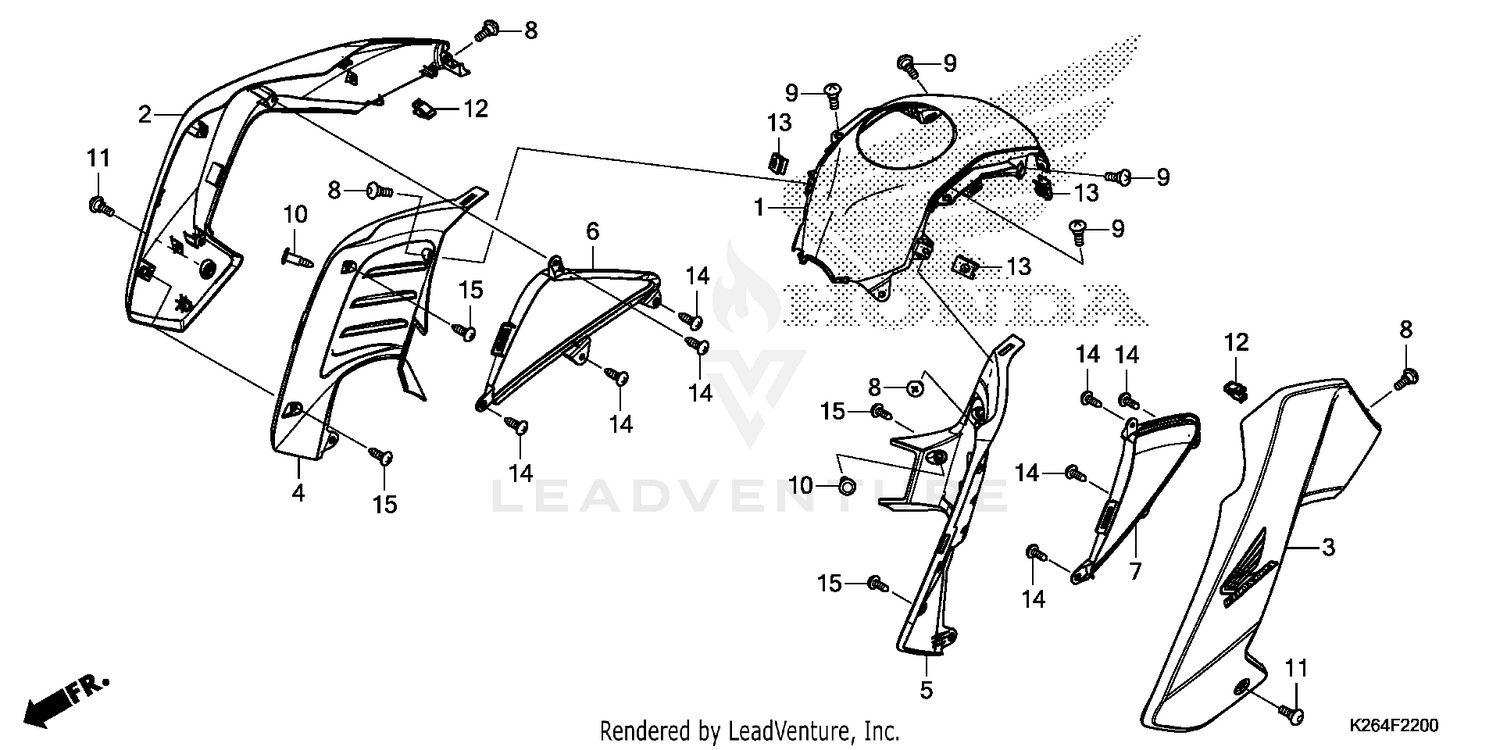

Shroud Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FUEL TANK
64450-K26-900
|
$11.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHROUD SET, R. (TYPE4) (WL)
83450-K26-A00ZA
|
$30.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHROUD SET, R. (TYPE3) (WL)
83450-K26-A00ZB
|
$30.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHROUD SET, R. (TYPE2) (WL)
83450-K26-A00ZC
|
$30.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHROUD SET, R. (TYPE1) (WL)
83450-K26-A00ZD
|
$31.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHROUD SET, L. (TYPE4) (WL)
83460-K26-A00ZA
|
$30.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHROUD SET, L. (TYPE3) (WL)
83460-K26-A00ZB
|
$30.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHROUD SET, L. (TYPE2) (WL)
83460-K26-A00ZC
|
$30.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHROUD SET, L. (TYPE1) (WL)
83460-K26-A00ZD
|
$31.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHROUD, R. (INNER)
83560-K26-900
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHROUD, L. (INNER)
83570-K26-900
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, R. SHROUD (UPPER)
83580-K26-900
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, L. SHROUD (UPPER)
83590-K26-900
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, VISOR SPECIAL SETTING
90115-KW7-900
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, VISOR SPECIAL SETTING
90115-KWW-620
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
RIVET, PUSH
90116-MCS-G00
|
$1.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW, PAN (5X14)
90134-KPP-T00
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLIP, SNAP FITTING
90601-SJA-003
|
$4.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT, CLIP (5MM)
90677-KAN-T00
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING (4X10)
93903-24210
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPING (4X10)
93903-24280
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
