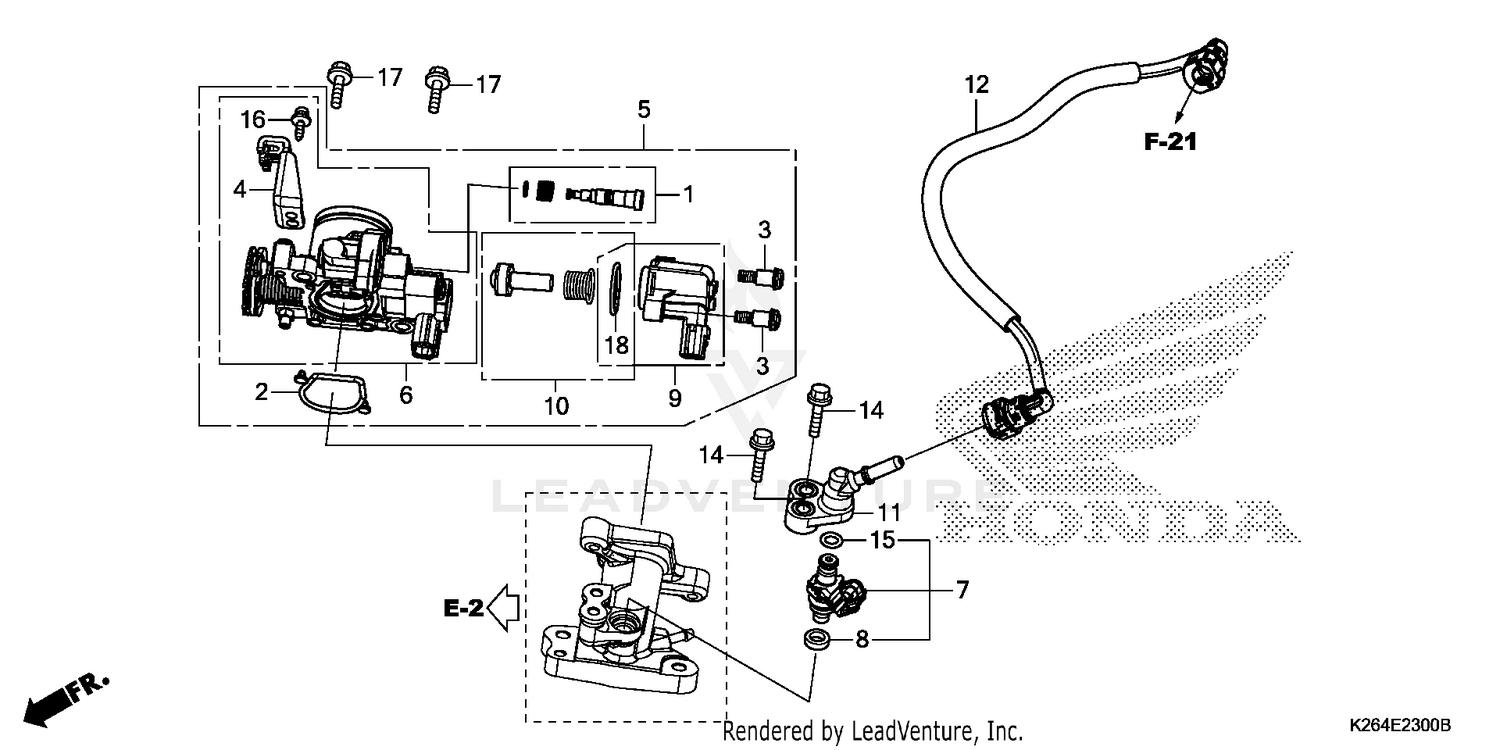

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW SET
16016-KVB-S51
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
16075-KYZ-711
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, TORX (5X8.7)
16081-KPH-701
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, WIRE
16169-K26-901
|
$22.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
BODY ASSY., THROTTLE (GQY9A A)
16400-K26-921
|
$216.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
BODY SET
16410-K26-921
|
$146.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
INJECTOR ASSY., FUEL
16450-K25-901
|
$59.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SEAL (Honda Code 8954000)
16472-KPC-D50
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
SOLENOID
16480-KVB-S51
|
$55.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT SET
16485-KVB-S51
|
$57.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, INJECTOR
17560-K26-900
|
$55.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, FUEL FEED
17570-K26-901
|
$26.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X22)
90001-K26-900
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (6.3X2.2)
91301-GGL-J01
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-WASHER (5X12) (Honda Code 0368621)
93892-05012-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-WASHER (5X12)
93892-05012-18
Superseded by 93892-05012-08
|
$1.20 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
O-RING (1.9X20.4)
16077-KVB-S51
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
