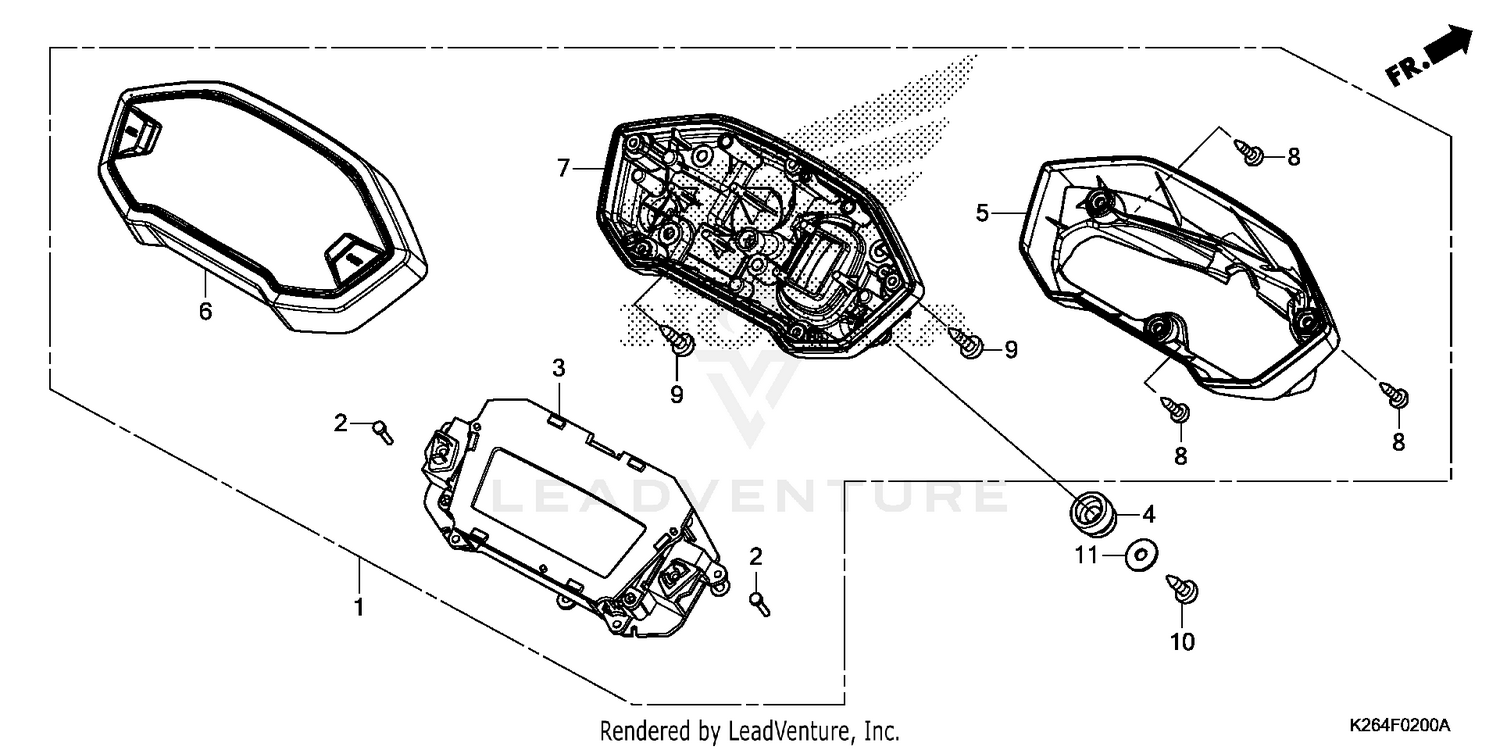

Speedometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
METER, COMBINATION
37100-K26-305
Superseded by 37100-K26-315
|
$285.49 | ||
|
Unavailable |
|||
|
#1
METER, COMBINATION
37100-K26-315
|
$285.49 | ||
|
Unavailable |
|||
|
#2
KEY, TOP
37104-MGZ-D00
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
METER, LCD
37130-K26-911
|
$200.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, METER SETTING
37215-KZZ-900
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER (OUTER)
37500-K26-901
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE ASSY. (UPPER) (COO)
37610-K26-305
|
$62.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
CASE LOWER ASSY.
37620-K26-901
Superseded by 37620-K26-902
|
$37.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
CASE LOWER ASSY.
37620-K26-902
|
$37.07 | ||
|
Unavailable |
|||
|
#8
SCREW, TAPPING (4X14)
90032-KW3-008
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, TAPPING (3X16)
93903-22420
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING (5X14) (PO)
93913-25380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN (5MM)
94103-05700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
