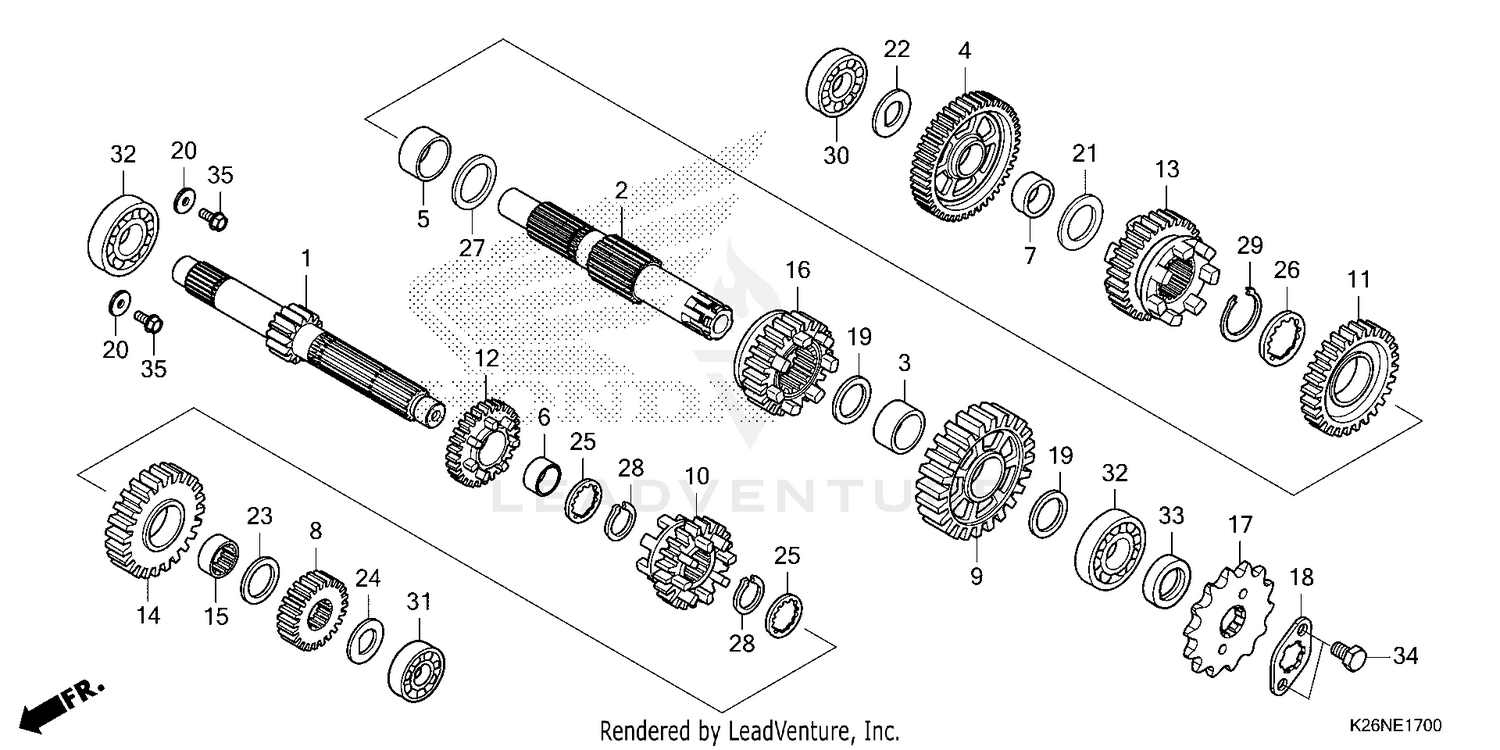

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (13T)
23211-K26-G00
|
$17.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23221-K26-G00
|
$23.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH (17MM)
23415-K26-G00
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTER FIRST (37T)
23421-K26-G00
|
$21.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH (20X9)
23422-GB4-770
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH (17MM)
23422-K26-G00
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH (15MM)
23427-K26-G00
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT SECOND (18T)
23431-K26-G00
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT SECOND (32T)
23441-K26-G00
|
$18.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT THIRD (19T)
23451-K26-G00
|
$18.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTER THIRD (25T)
23461-K26-G00
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, MAINSHAFT FOURTH (29T)
23471-K26-G00
|
$14.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, COUNTER FOURTH (30T)
23481-K26-G00
|
$21.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, MAINSHAFT FIFTH (32T)
23491-K26-G00
|
$22.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, SPLINE (17X20X11)
23492-K26-G00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, COUNTERSHAFT FIFTH (27T)
23501-K26-G00
|
$27.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET, DRIVE (15T)
23801-K26-G00
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, FIXING
23802-GN5-910
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (17X26X1.0)
90405-KYJ-900
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (6.2X19X2.3)
90407-KWW-740
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, THRUST (15MM)
90412-187-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, SPECIAL (15MM)
90412-K56-N00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (17MM)
90452-115-000
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
90452-KGH-900
Superseded by 90452-KPH-C00
|
$3.02 | ||
|
Unavailable |
|||
|
#24
WASHER
90452-KPH-C00
|
$3.02 | ||
|
Unavailable |
|||
|
#25
WASHER, SPLINE (17X23X1.6)
90452-KRM-840
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPLINE (20MM)
90453-KRM-840
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER B, THRUST (20MM)
90454-KPS-900
|
$0.91 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP (17MM)
90601-KRM-840
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#29
SET-RING (20MM)
90605-KVS-900
|
$2.35 | ||
|
Unavailable |
|||
|
#30
BEARING, RADIAL BALL (15X42X11)
91003-K1M-T01
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, RADIAL BALL (6001)
91013-KSS-901
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, RADIAL BALL (6001)
91013-KZV-J01
Superseded by 96100-60010-00
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, RADIAL BALL (6001)
96100-60010-00
|
$9.64 | ||
|
Unavailable |
|||
|
#32
BEARING, RADIAL BALL (6203)
91015-KSS-901
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, RADIAL BALL (6203) (NA USE ALT:96100-62030-00)
91015-KZV-J01
|
$15.14 | ||
|
Unavailable |
|||
|
#33
OIL SEAL (17X30X5) (NOK)
91204-KPH-902
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
