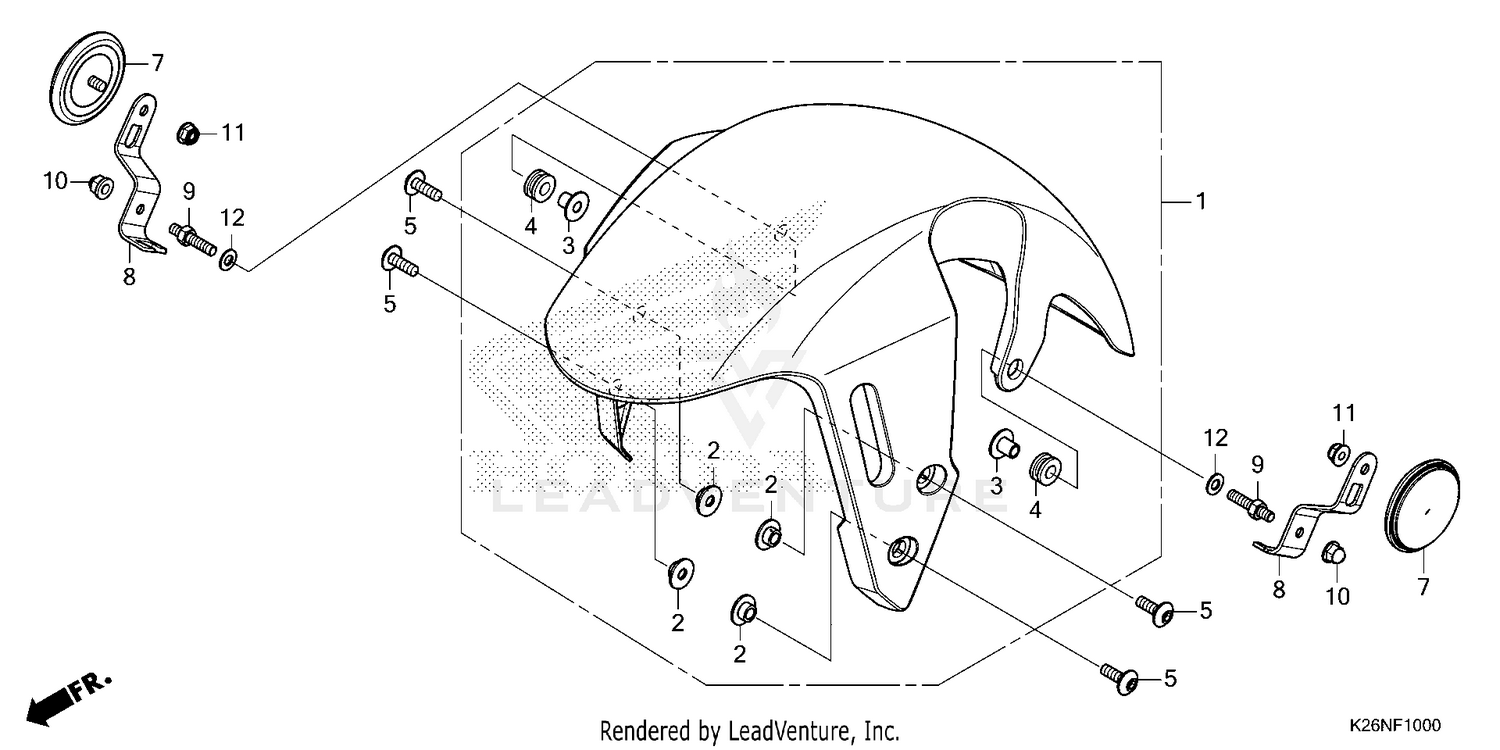

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FR. *NH436M* (WOL) (MAT GUNPOWDER BLACK METALLIC)
61100-K26-G00ZC
|
$46.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, FR. FENDER
61101-KZZ-900
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, TAILLIGHT MOUNTING
84706-163-670
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, RR. FENDER CUSHION (FR.)
80101-165-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN (6X18)
90130-K26-900
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
REFLECTOR, FR. REFLEX (AMBER)
33741-KAK-971
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, FR. REFLECTOR
61102-K26-950
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD (6X23)
61104-K26-950
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, CAP (L. SIDE ONLY)
90201-428-900
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U (6MM) (FUJI SEIMITSU)
90301-KGH-901
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (6MM)
90501-K26-950
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
