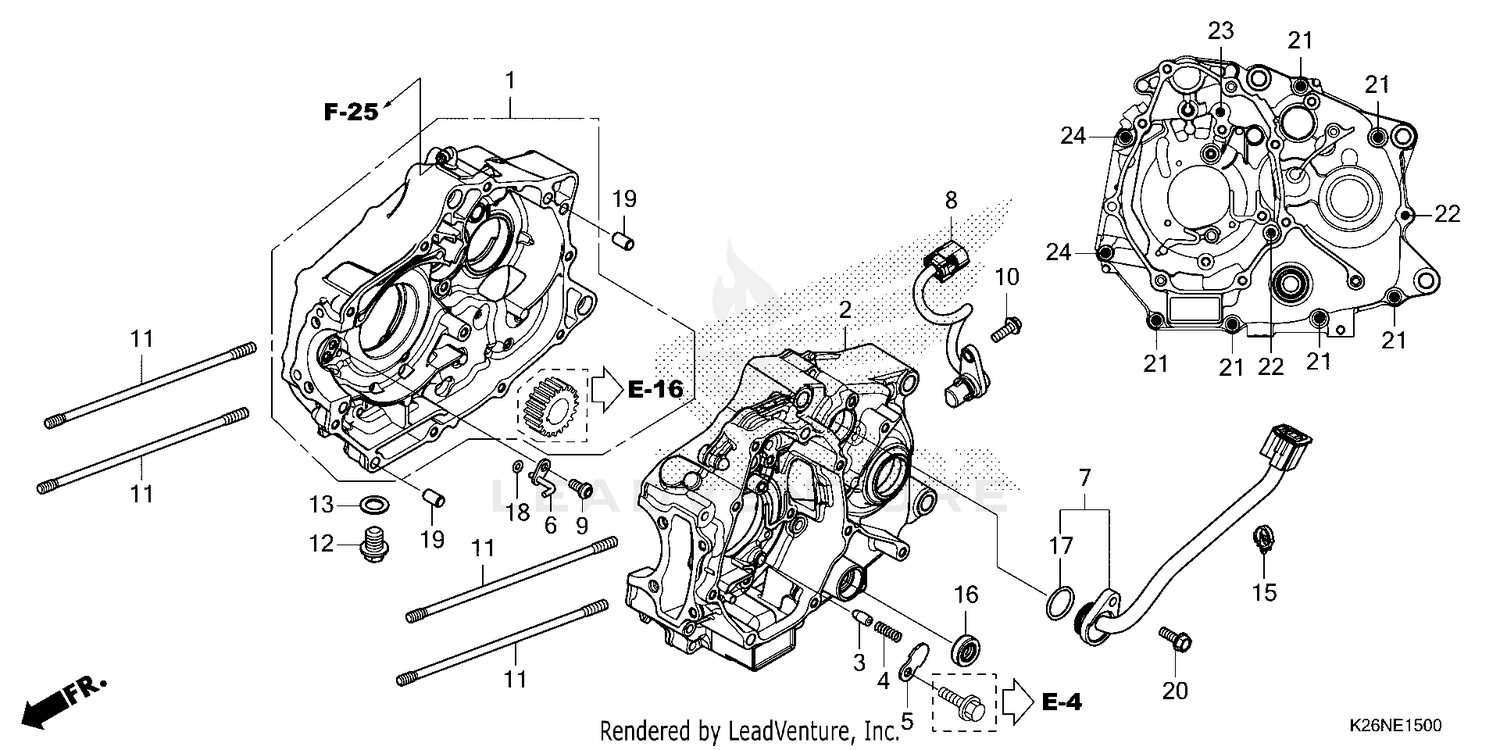

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET, R.
11010-K26-G00
Superseded by 11010-K26-G01
|
$196.05 | ||
|
Unavailable |
|||
|
#2
CRANKCASE, L.
11200-K26-G00
|
$121.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG, BEARING PUSH
11215-KYZ-900
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, BEARING PUSH
11216-KYZ-900
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, PUSH PLUG
11218-K26-G00
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET, PISTON
15201-K1M-T02
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONTACT ASSY., CHANGE SWITCH
35759-K26-G11
|
$50.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR ASSY., SPEED (NS)
37700-KVS-F01
|
$46.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SPECIAL (6X12)
90003-K0J-N00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X18) (NSHF)
90004-GHB-640
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, CYLINDER STUD
90031-KYY-900
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, DRAIN PLUG (12X15)
90131-883-000
Superseded by 90131-896-650
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, DRAIN PLUG (12X15)
90131-896-650
|
$2.76 | ||
|
Unavailable |
|||
|
#13
GASKET, DRAIN PETCOCK (12.5X20)
90407-259-000
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLIP, WIRE HARNESS
90684-ZA0-601
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL,11.6 X 22
91208-KWB-601
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (21X2.4)
91301-HP2-671
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (3.8X1.4)
91305-K0J-N00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X50) BOLT, FLANGE (6X55)
96001-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X60)
96001-06060-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X70)
96001-06070-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
