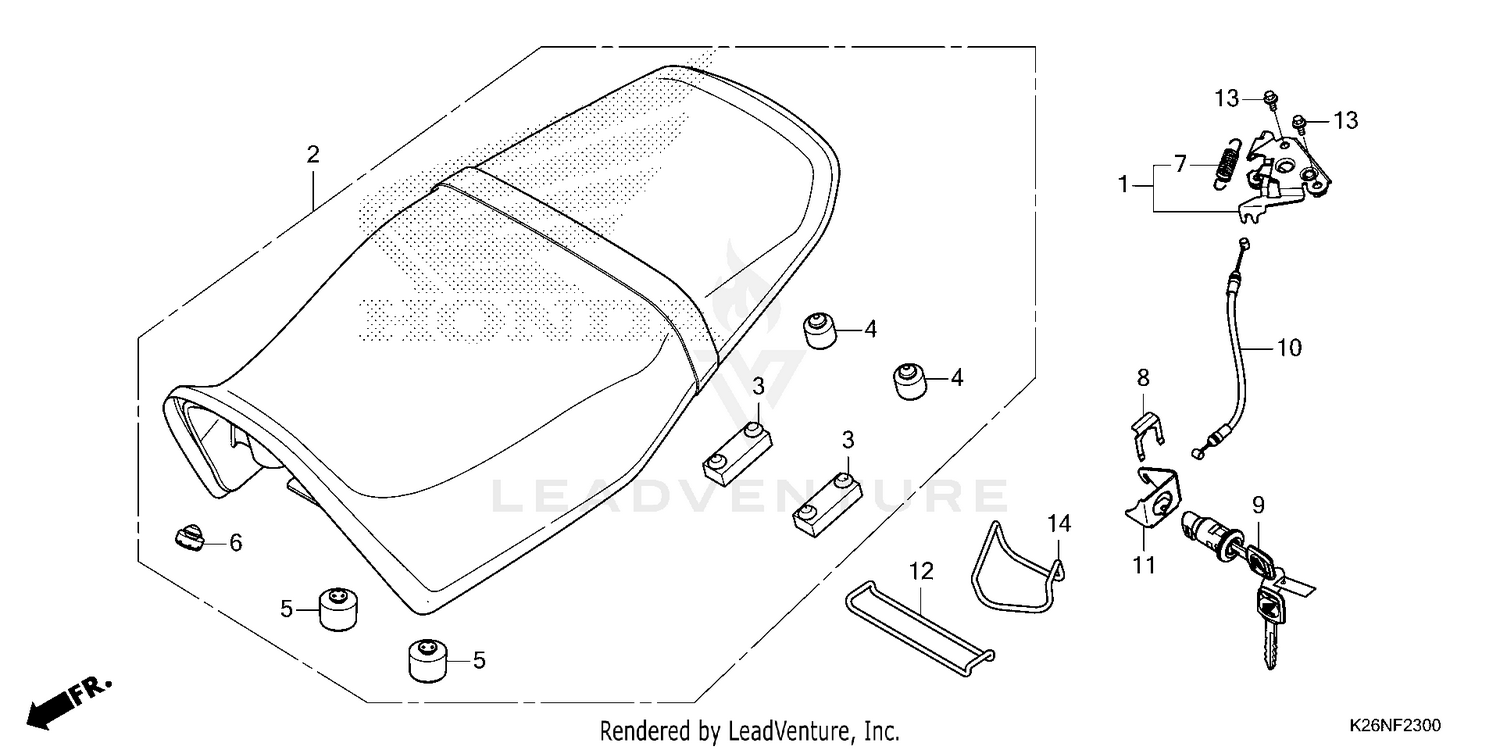

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, SEAT LOCK
77160-K26-B00
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT ASSY., DOUBLE (TYPE1)
77200-K26-G00ZA
|
$113.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, SEAT SETTING
77205-MFE-670
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, SEAT CUSHION
77206-KPK-900
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, SEAT CUSHION
77206-KPP-T00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER C, SEAT SETTING
77215-KW7-900
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, SEAT LOCK
77234-KRJ-900
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, LOCK KEY SETTING
77235-469-000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY, SEAT LOCK
77239-K26-G01
|
$91.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, SEAT LOCK
77240-K26-G01
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, SEAT LOCK CABLE
77582-K26-G00
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, TOOL
89012-KZL-930
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X12)
95801-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
|
#14
BAND, TOOL
89012-KZL-930
|
$1.42 | ||
|
Unavailable |
|||
