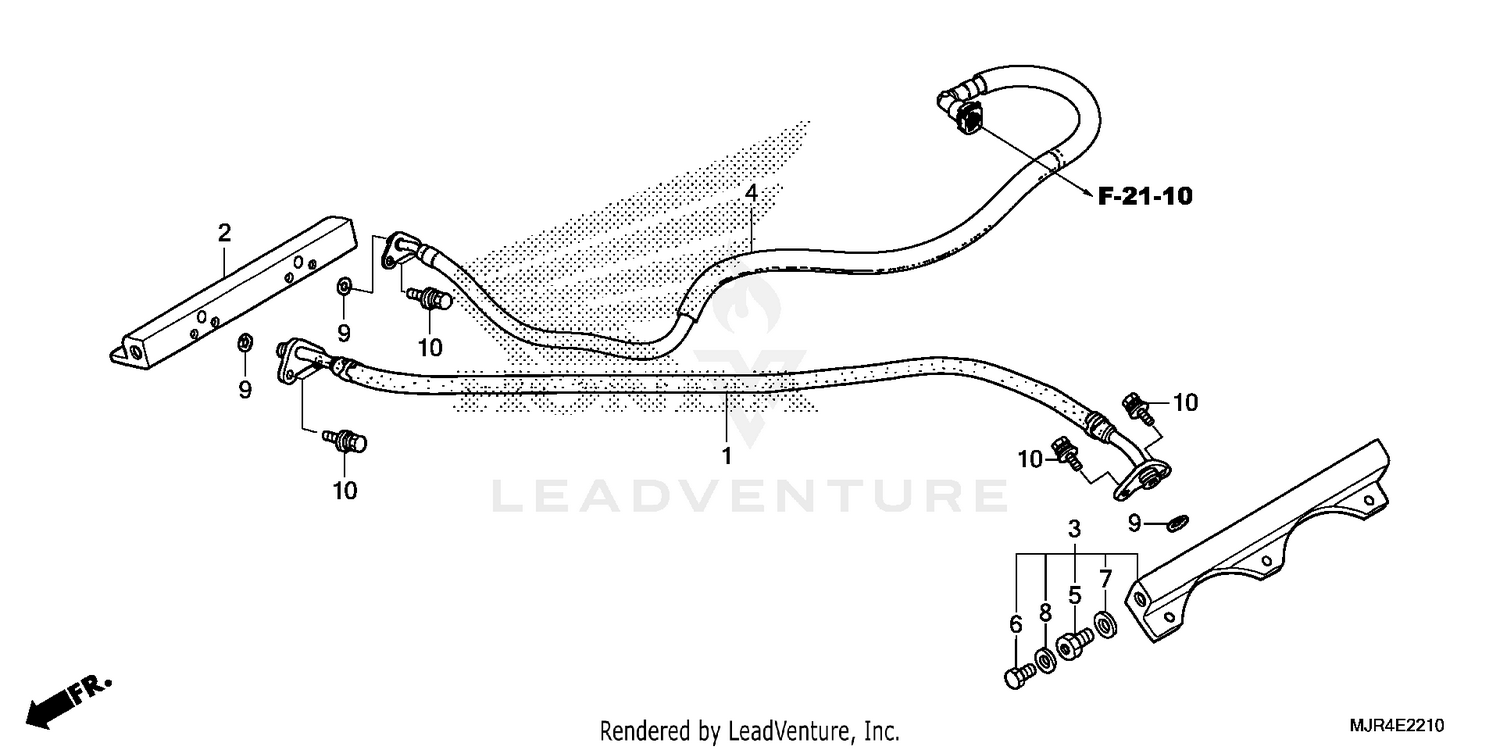

Throttle Body (tubing) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, FUEL FEED
16527-MCA-A61
|
$113.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, R. FUEL
16610-MJR-670
|
$104.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, L. FUEL
16620-MJR-670
|
$104.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, FUEL FEED
17528-MJR-671
|
$279.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, BANJO (12MM)
90008-MCA-000
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SEALING (6MM)
90009-PP4-E01
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SEALING (12MM)
90428-PD6-003
|
$6.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, SEALING (6MM)
90430-PD6-003
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (7.8X1.9)
91302-MCA-000
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-WASHER (6X16)
93403-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-WASHER (6X16)
93413-06016-00
Superseded by 93403-06016-00
|
$1.70 | ||
|
Unavailable |
|||
