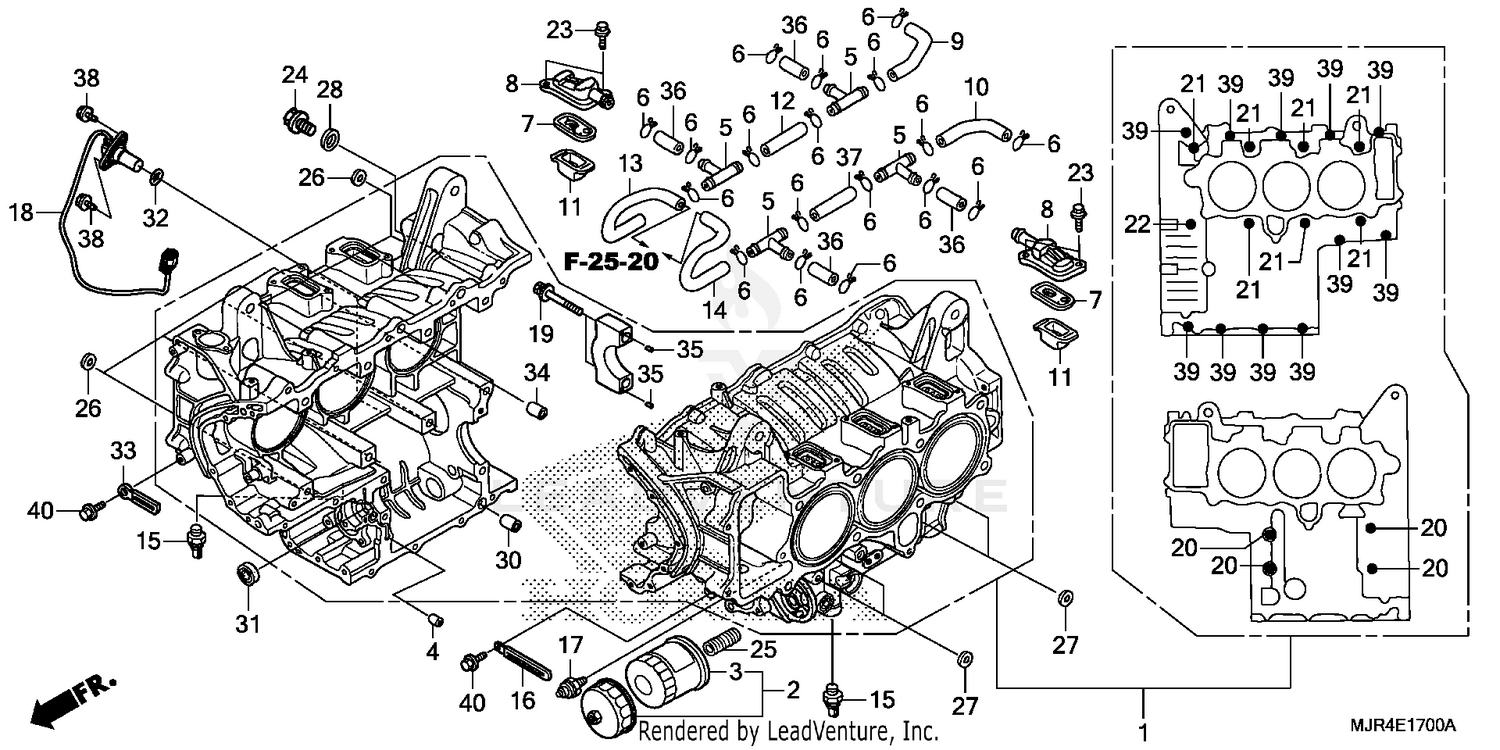

Cylinder Block Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BLOCK ASSY., CYLINDER
11000-MJR-670
|
$4,185.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER SET, OIL
15010-MCE-H51
Superseded by 15010-MKR-305
|
$23.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
FILTER, OIL (WAKO FILTER)
15410-MFJ-D01
Superseded by 15410-MFJ-D02
|
$18.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
ORIFICE (2.3MM)
15515-MCA-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, BREATHER (THREE-WAY)
15772-KK0-000
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, OIL DRAIN TUBE
17316-611-000
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE, REED
18601-KGB-611
|
$30.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, REED VALVE
18612-MBA-601
|
$16.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, R. AIR IN.
18651-MCA-780
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE, L. AIR IN.
18652-MCA-000
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, AIR IN.
18653-MCA-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE (12X62)
18655-MCA-000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, R. AIR IN.
18662-MCA-A60
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, L. AIR IN.
18663-MCA-A60
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR ASSY., KNOCK
30530-MCA-003
|
$176.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, WIRE HARNESS
32170-443-850
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
|
$51.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR ASSY., SPEED
37700-MJR-671
|
$156.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, UBS (12X77.5)
90003-MEC-000
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X135)
90006-MM5-640
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (10X120) (SATO)
90009-371-015
|
$12.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (10X197)
90011-MJR-670
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (5X14)
90012-896-750
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (10X15)
90013-MJR-670
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOSS, OIL FILTER (Honda Code 1243435)
90019-MB0-000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPECIAL (11X21X2.3)
90438-463-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SEALING (8MM)
90441-MG8-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR (15X20)
90702-371-000
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL (8X25X8) (ARAI)
91204-MB0-013
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (18.1X3.6)
91302-MAL-601
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP (4X60)
91410-KT7-000
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN A, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
PIN C, DOWEL (4X6.5)
94303-04065
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
BULK HOSE, VACUUM (12X1000) (120X210) (BULK HOSE: 95005-12001-10M)
95005-12001-10M
|
$67.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
BULK HOSE, VACUUM (12X1000) (120X210) (BULK HOSE: 95005-12001-10M)
95005-12001-10M
|
$67.20 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
