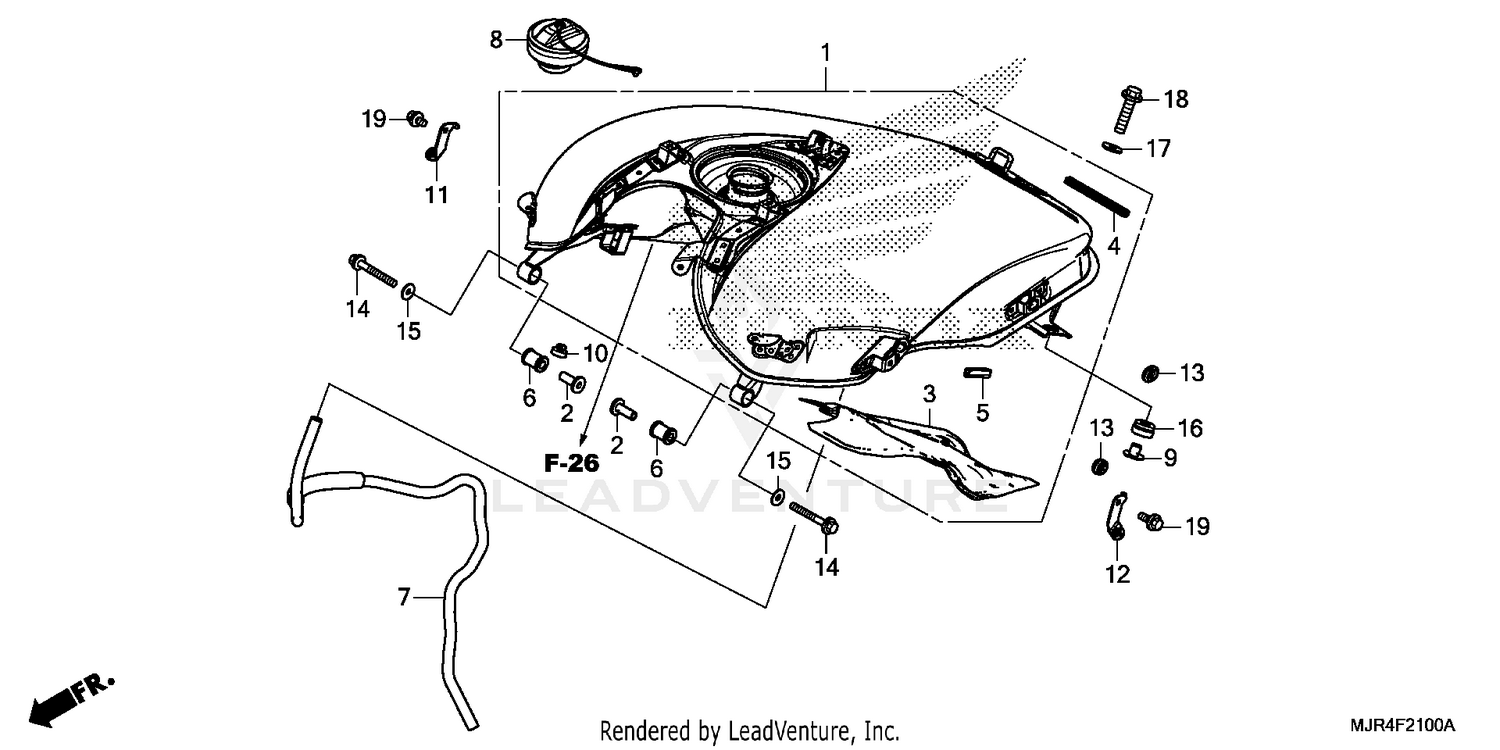

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY., FUEL *R337M* (BORDEAUX RED METALLIC)
17500-MJR-670ZA
|
$1,997.47 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY., FUEL *NHB01* (GRAPHITE BLACK)
17500-MJR-670ZC
|
$1,997.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
17501-MJR-670
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
MAT, TANK PROTECTOR
17505-MJR-670
|
$63.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
TRIM, FUEL TANK (SOURCE: VINTAGE PARTS INC.)
17516-MK7-000
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
TRIM A, FUEL TANK
17521-KSV-J00
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, RR. TANK MOUNTING (FRONT SIDE)
17534-MFJ-D00
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, FUEL DRAIN
17590-MJR-670
|
$38.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, FUEL FILLER
17670-MJN-A01
|
$76.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, METER STAY MOUNTING (SOURCE: VINTAGE PARTS INC.)
37107-KN6-960
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, LINK STOPPER
50352-GS6-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, R RADIATOR SIDE
64288-MJR-670
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, L RADIATOR SIDE
64298-MJR-670
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET, AIR CLEANER HOUSING
83551-240-300
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X45) (SH)
90101-MJR-670
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (6MM)
90501-MJR-670
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, TANK CUSHION
90851-898-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (8MM)
94103-08800
|
$0.98 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (8X35)
95701-08035-08
|
$1.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
