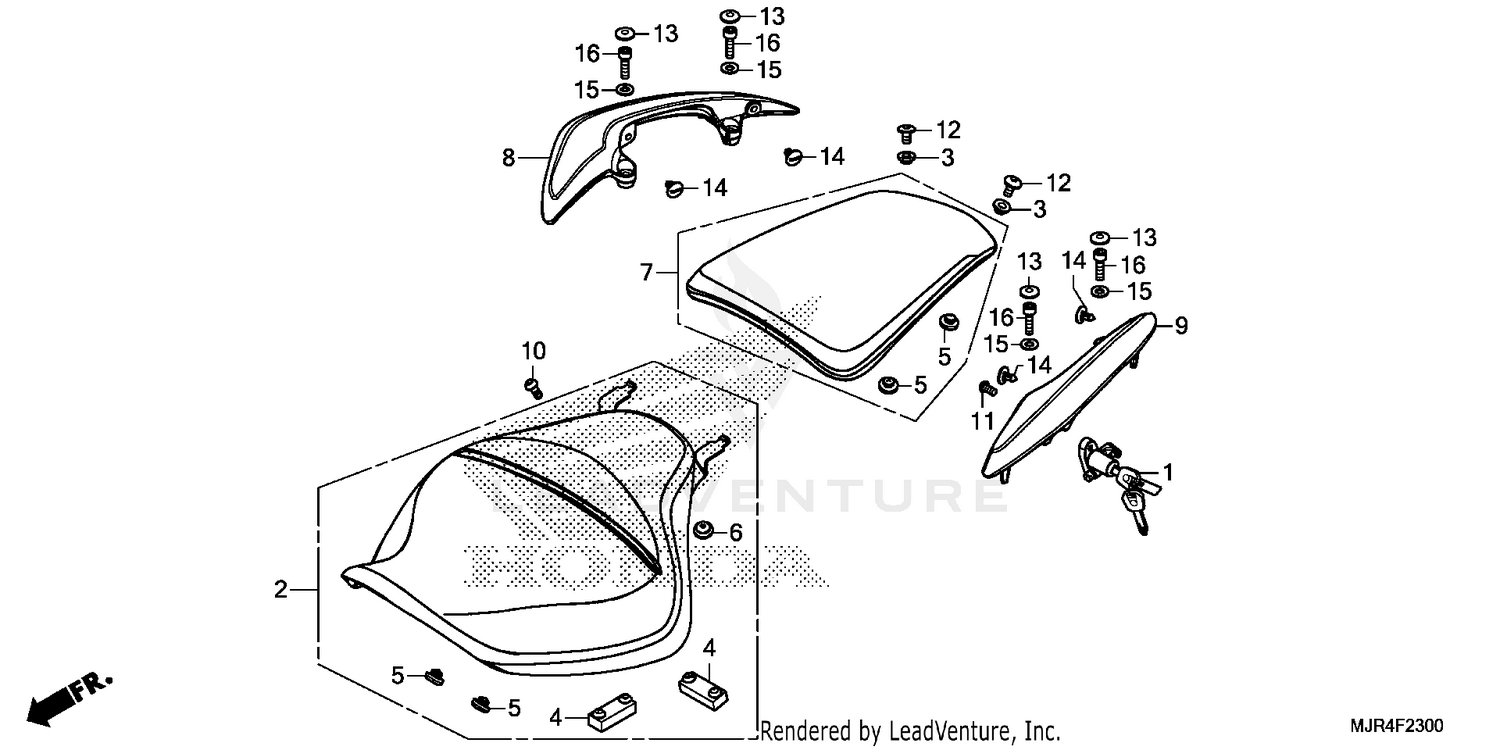

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER ASSY., HELMET
50710-MJG-671
|
$58.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT ASSY., MAIN
77100-MJR-671
|
$557.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, SEAT SETTING
77103-MFR-670
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER B, SEAT SETTING
77205-286-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
77211-MFE-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, SEAT SIDE (RIGHT SIDE)
77212-965-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT ASSY., PILLION
77300-MJR-671
|
$290.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRIP, R. PASSENGER *NHB38M* (MAT ALTAIR SILVER METALLIC)
84150-MJR-670ZA
|
$312.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRIP, L. PASSENGER *NHB38M* (MAT ALTAIR SILVER METALLIC)
84155-MJR-670ZA
|
$292.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SOCKET (6X15)
90102-MFR-670
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, ONE-WAY (6X12)
90105-KEB-620
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN (6X12)
90106-MAV-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, SOCKET BOLT (8MM)
91456-MJR-670
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, NUT (8MM)
91630-MJR-670
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (8MM)
94102-08700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SOCKET (8X28)
96600-08028-00
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
