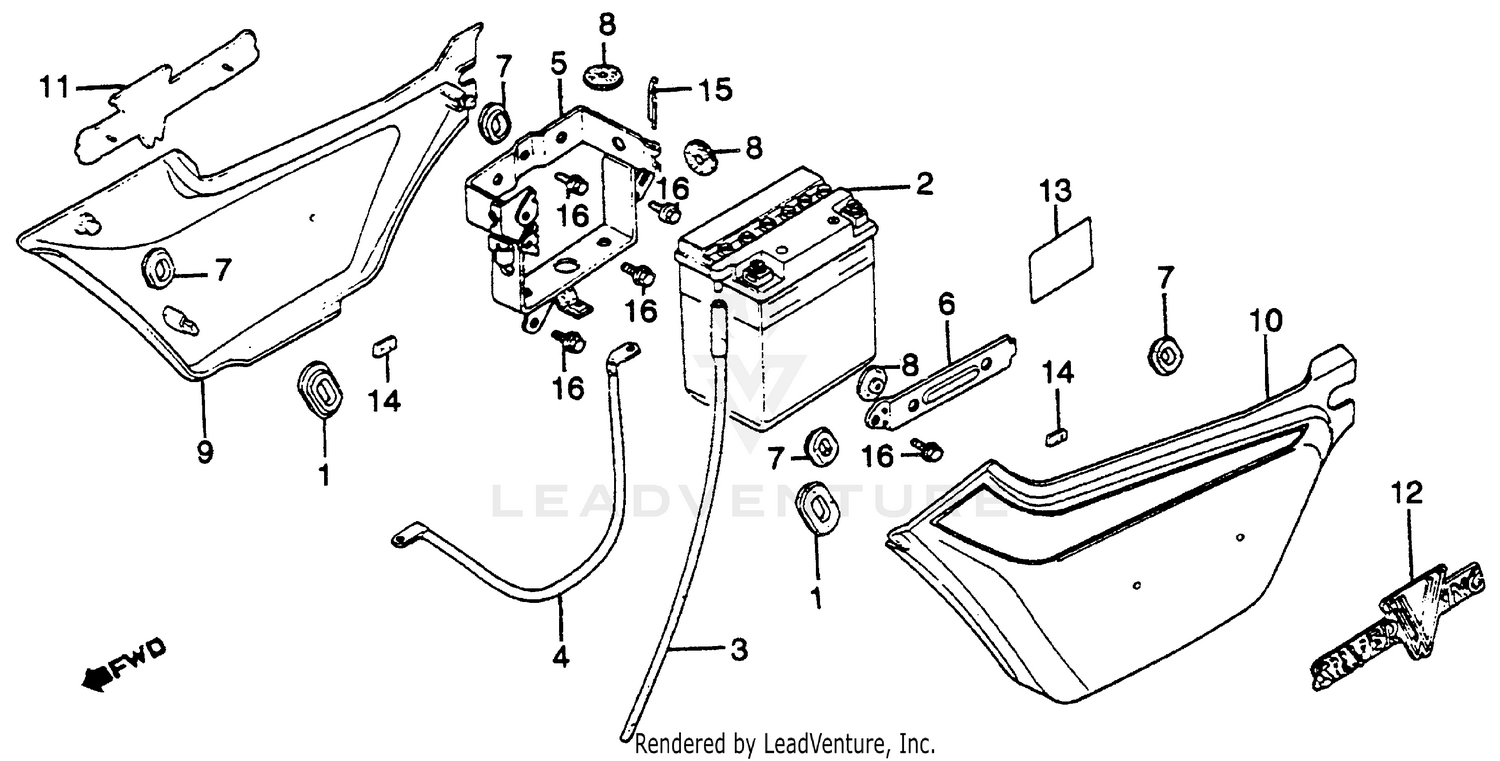

Side Cover + Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET A, AIR CLEANER HOUSING
17247-303-000
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
BATTERY (12N14-3A)
31500-415-601
Superseded by 31500-425-672AH
|
$84.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
BATTERY (12N14-3A)
31500-415-671
Superseded by 31500-425-672AH
|
$84.52 | ||
|
Unavailable |
|||
|
#2
BATTERY (12N14-3A)
31500-425-671
Superseded by 31500-425-672AH
|
$84.52 | ||
|
Unavailable |
|||
|
#2
BATTERY (12N14-3A)
31500-425-672
Superseded by 31500-425-672AH
|
$84.52 | ||
|
Unavailable |
|||
|
#2
BATTERY (12N14-3A)
31500-425-677
Superseded by 31500-425-672AH
|
$84.52 | ||
|
Unavailable |
|||
|
#2
BATTERY (12N14-3A)
31500-461-770
Superseded by 31500-425-672AH
|
$84.52 | ||
|
Unavailable |
|||
|
#2
BATTERY (12N14-3A)
31500-461-771
Superseded by 31500-425-672AH
|
$84.52 | ||
|
Unavailable |
|||
|
#2
BATTERY (12N14-3A)
31500-461-772
Superseded by 31500-425-672AH
|
$84.52 | ||
|
Unavailable |
|||
|
#3
TUBE, BATTERY BREATHER (NOT AVAILABLE)
31502-MA1-000
|
$9.38 | ||
|
Unavailable |
|||
|
#4
CABLE, BATTERY GROUND (NOT AVAILABLE)
32601-MA1-000
|
$19.65 | ||
|
Unavailable |
|||
|
#5
BAND A, BATTERY
50327-ME2-000
|
$117.13 | ||
|
Unavailable |
|||
|
#6
BAND B
50328-ME2-000
|
$23.97 | ||
|
Unavailable |
|||
|
#7
GROMMET, AIR CLEANER HOUSING
83551-300-000
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
RUBBER, BATTERY BOX
83618-323-000
|
$2.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
COVER ASSY., R. SIDE *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)
83620-ME2-000ZA
|
$84.27 | ||
|
Unavailable |
|||
|
#9
COVER ASSY., R. SIDE *NH125MU* (NIMBUS GRAY METALLIC) (NOT AVAILABLE)
83620-ME2-000ZB
|
$86.58 | ||
|
Unavailable |
|||
|
#10
COVER ASSY., L. SIDE *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)
83720-ME2-000ZA
|
$121.18 | ||
|
Unavailable |
|||
|
#10
COVER ASSY., L. SIDE *NH125MU* (NIMBUS GRAY METALLIC) (NOT AVAILABLE)
83720-ME2-000ZB
|
$86.62 | ||
|
Unavailable |
|||
|
#11
EMBLEM, SIDE COVER (NOT AVAILABLE)
87125-MA1-000
|
$23.04 | ||
|
Unavailable |
|||
|
#12
EMBLEM, L. SIDE COVER (NOT AVAILABLE)
87137-MA1-000
|
$23.04 | ||
|
Unavailable |
|||
|
#13
LABEL, BATTERY CAUTION (NOT AVAILABLE)
87506-MA1-670
|
$2.82 | ||
|
Unavailable |
|||
|
#14
NUT, SPEED (3MM)
90315-504-000
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (6X10)
95700-06010-08
|
$1.68 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
