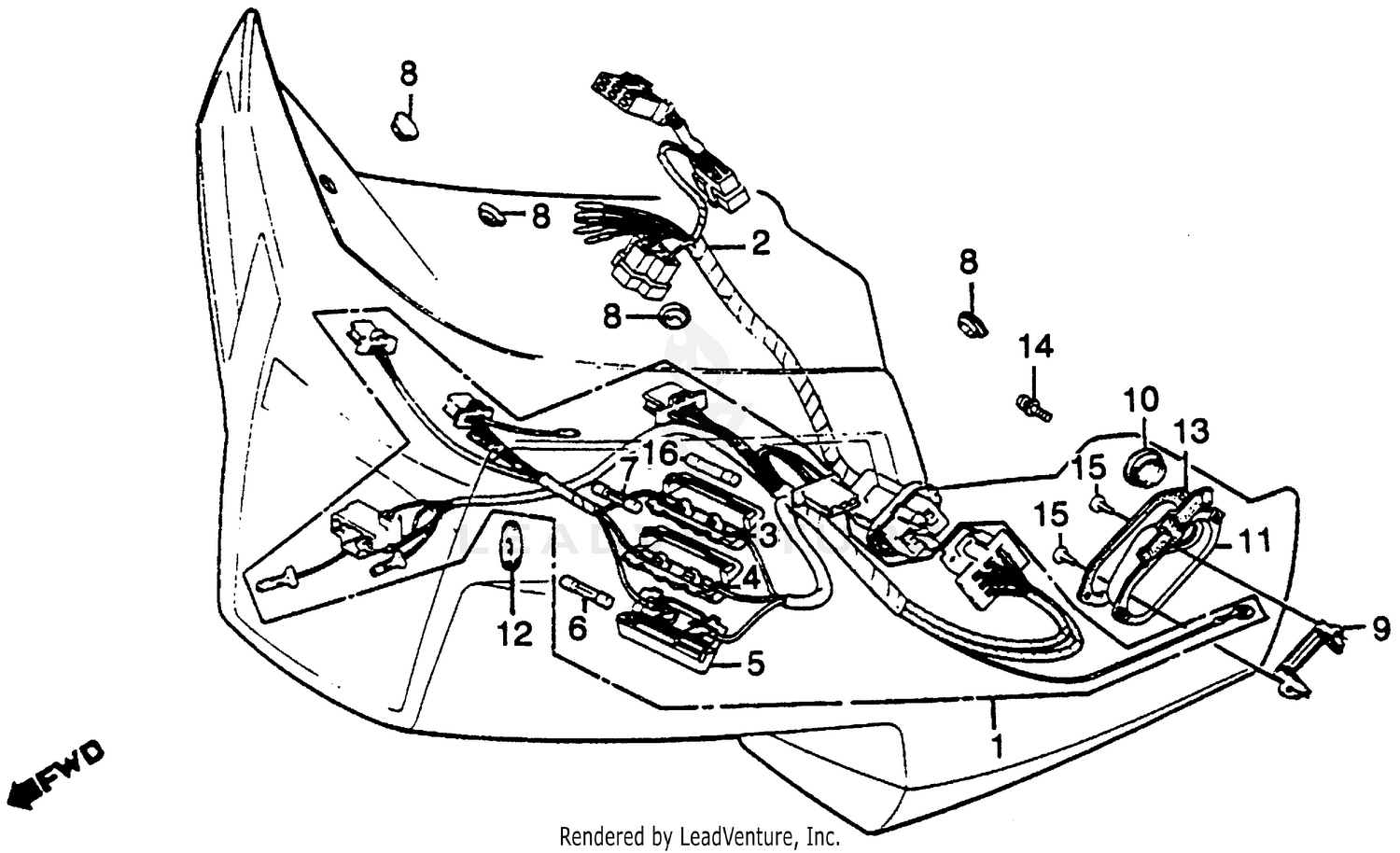

Gl650i Fairing Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUB-WIRE HARNESS E (NOT AVAILABLE)
32105-463-891
|
$61.97 | ||
|
Unavailable |
|||
|
#2
SUB-WIRE HARNESS F (NOT AVAILABLE)
32106-ME2-770
|
$27.89 | ||
|
Unavailable |
|||
|
#3
CASE, FUSE (5A) (NOT AVAILABLE)
32125-463-770
|
$6.13 | ||
|
Unavailable |
|||
|
#4
CASE, FUSE (1A) (NOT AVAILABLE)
32127-463-890
|
$6.13 | ||
|
Unavailable |
|||
|
#5
CASE, FUSE (2A) (NOT AVAILABLE)
32128-463-890
|
$6.13 | ||
|
Unavailable |
|||
|
#6
FUSE B (2A) (NOT AVAILABLE)
38211-463-890
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUSE (1A) (NOT AVAILABLE)
39110-634-004
|
$1.21 | ||
|
Unavailable |
|||
|
#8
GROMMET B, CLUTCH WIRE (NOT AVAILABLE)
60604-581-000
|
$4.36 | ||
|
Unavailable |
|||
|
#9
PLATE, CONNECTOR MOUNT (NOT AVAILABLE)
64232-463-770
|
$3.52 | ||
|
Unavailable |
|||
|
#10
CAP, FAIRING
64289-ME2-770
|
$3.81 | ||
|
Unavailable |
|||
|
#11
HOLDER B, CONNECTOR
64295-ME2-770
|
$29.78 | ||
|
Unavailable |
|||
|
#12
GROMMET, HEADLIGHT CORD (NOT AVAILABLE)
64297-463-770
|
$3.35 | ||
|
Unavailable |
|||
|
#13
GASKET, CONNECTOR HOLDER (NOT AVAILABLE)
64299-463-770
|
$5.51 | ||
|
Unavailable |
|||
|
#14
SCREW-WASHER (4X12)
93891-04012-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW-WASHER (4X12)
93891-04012-17
Superseded by 93891-04012-07
|
$1.20 | ||
|
Unavailable |
|||
|
#15
SCREW, TAPPING (4X8)
93903-34180
|
$0.87 | ||
|
Unavailable |
|||
|
#16
FUSE B (5A)
98200-20500
|
$1.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
