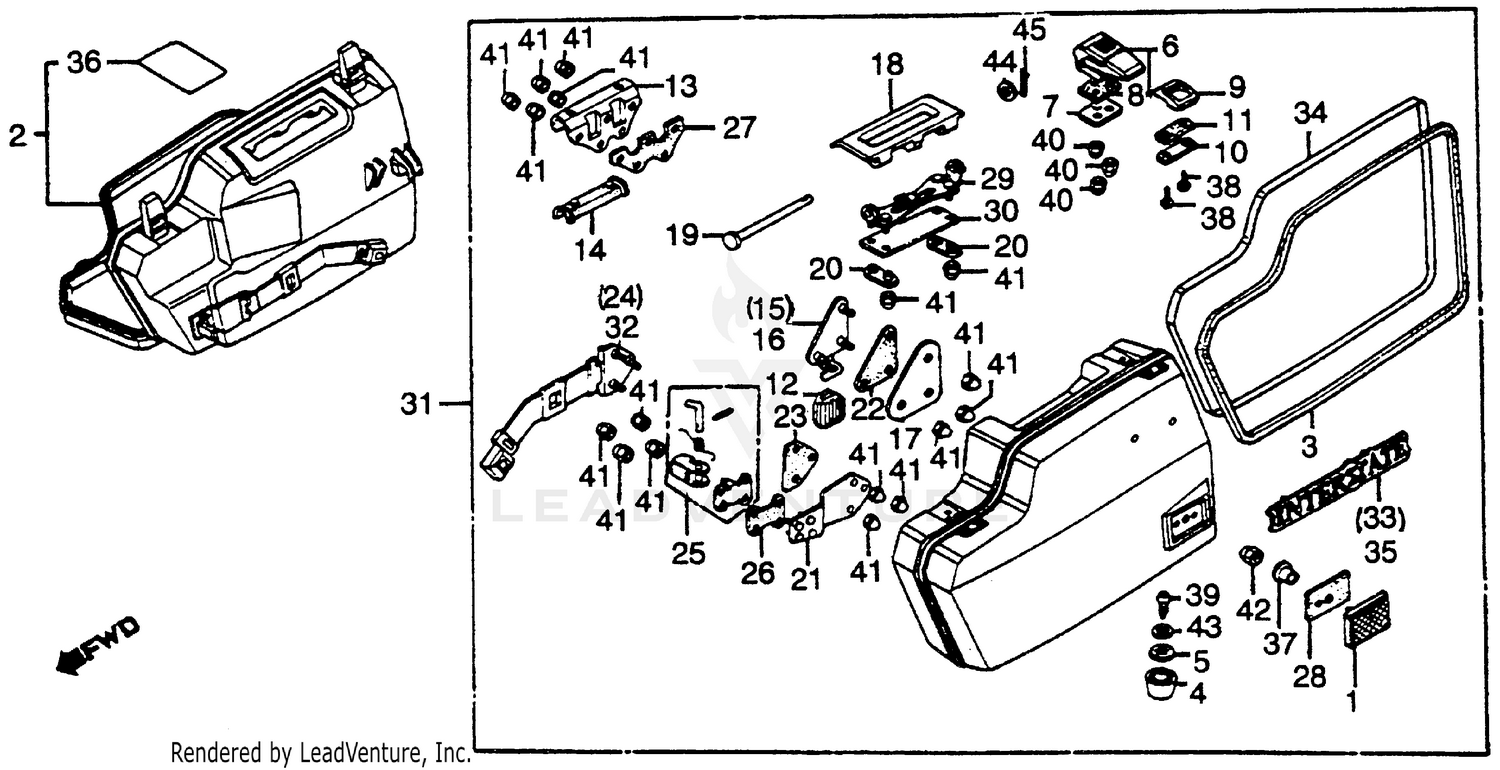

Gl650i Saddlebag Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, RR. REFLEX
33741-415-601
Superseded by 33741-415-602
|
$22.73 | ||
|
Unavailable |
|||
|
#1
REFLECTOR, RR. REFLEX
33741-415-602
|
$22.73 | ||
|
Unavailable |
|||
|
#2
SADDLEBAG ASSY., R. *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)
81200-ME2-770ZA
|
$904.24 | ||
|
Unavailable |
|||
|
#2
SADDLEBAG ASSY., R. *NH125MU* (NIMBUS GRAY METALLIC)
81200-ME2-770ZB
|
$744.94 | ||
|
Unavailable |
|||
|
#3
RUBBER, SADDLEBAG SEAL
81213-MA1-770
|
$22.94 | ||
|
Unavailable |
|||
|
#4
CUSHION, SADDLEBAG (NOT AVAILABLE)
81215-ME2-770
|
$3.74 | ||
|
Unavailable |
|||
|
#5
RUBBER, SADDLEBAG CUSHION (NOT AVAILABLE)
81216-ME2-770
|
$2.37 | ||
|
Unavailable |
|||
|
#6
LOCK ASSY., SADDLEBAG (NOT AVAILABLE)
81220-MA2-000
|
$61.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, LOCK
81221-MA2-000
|
$2.23 | ||
|
Unavailable |
|||
|
#8
RUBBER, LOCK SEAL
81222-MA2-000
|
$5.97 | ||
|
Unavailable |
|||
|
#9
HOOK, LOCK (NOT AVAILABLE)
81230-MA2-000
|
$16.36 | ||
|
Unavailable |
|||
|
#10
PLATE A, HOOK
81231-MA2-000
|
$1.99 | ||
|
Unavailable |
|||
|
#11
RUBBER A, HOOK
81233-MA2-000
|
$2.39 | ||
|
Unavailable |
|||
|
#12
RUBBER, SADDLEBAG GUIDE (NOT AVAILABLE)
81248-MA1-740
|
$4.67 | ||
|
Unavailable |
|||
|
#13
BRACKET, SADDLEBAG SETTING (NOT AVAILABLE)
81253-MA1-770
|
$23.02 | ||
|
Unavailable |
|||
|
#14
RUBBER, FR. SADDLEBAG (NOT AVAILABLE)
81254-MA1-770
|
$15.95 | ||
|
Unavailable |
|||
|
#15
GUIDE, R. SADDLEBAG
81256-MA1-740
|
$22.80 | ||
|
Unavailable |
|||
|
#16
GUIDE, L. SADDLEBAG
81257-MA1-740
|
$22.80 | ||
|
Unavailable |
|||
|
#17
PATCH, GUIDE (NOT AVAILABLE)
81259-MA1-740
|
$11.65 | ||
|
Unavailable |
|||
|
#18
GRIP, SADDLEBAG
81260-ME2-770
|
$56.07 | ||
|
Unavailable |
|||
|
#19
PIN, GRIP (NOT AVAILABLE)
81263-MA2-000
|
$8.63 | ||
|
Unavailable |
|||
|
#20
PATCH, GRIP (NOT AVAILABLE)
81265-MA1-770
|
$2.23 | ||
|
Unavailable |
|||
|
#21
PATCH, BUCKLE (NOT AVAILABLE)
81266-MA1-740
|
$23.02 | ||
|
Unavailable |
|||
|
#22
RUBBER, GUIDE SETTING (NOT AVAILABLE)
81269-MA1-740
|
$2.88 | ||
|
Unavailable |
|||
|
#23
RUBBER, BUCKLE SETTING (NOT AVAILABLE)
81270-MA1-740
|
$3.21 | ||
|
Unavailable |
|||
|
#24
PLATE, R. BUCKLE (NOT AVAILABLE)
81271-MA1-740
|
$87.33 | ||
|
Unavailable |
|||
|
#25
HOOK ASSY., BUCKLE LOCK (NOT AVAILABLE)
81280-MA1-770
|
$16.36 | ||
|
Unavailable |
|||
|
#26
RUBBER, HOOK LOCK SETTING (NOT AVAILABLE)
81286-MA1-770
|
$2.48 | ||
|
Unavailable |
|||
|
#27
RUBBER, SADDLEBAG BRACKET SETTING
81287-MA1-770
|
$9.06 | ||
|
Unavailable |
|||
|
#28
RUBBER, REFLEX REFLECTOR (NOT AVAILABLE)
81288-MA1-770
|
$3.21 | ||
|
Unavailable |
|||
|
#29
BASE, GRIP (NOT AVAILABLE)
81290-MA1-770
|
$26.59 | ||
|
Unavailable |
|||
|
#30
RUBBER, GRIP (NOT AVAILABLE)
81291-MA1-770
|
$3.21 | ||
|
Unavailable |
|||
|
#31
SADDLEBAG ASSY., L. *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)
81400-ME2-770ZA
|
$537.38 | ||
|
Unavailable |
|||
|
#31
SADDLEBAG ASSY., L. *NH125MU* (NIMBUS GRAY METALLIC) (NOT AVAILABLE)
81400-ME2-770ZB
|
$1,041.35 | ||
|
Unavailable |
|||
|
#32
PLATE, L. BUCKLE (NOT AVAILABLE)
81471-MA1-740
|
$87.33 | ||
|
Unavailable |
|||
|
#33
EMBLEM, SADDLEBAG
87111-MG9-770
|
$27.63 | ||
|
Unavailable |
|||
|
#33
EMBLEM, SADDLEBAG
87124-MA1-770
Superseded by 87111-MG9-770
|
$27.63 | ||
|
Unavailable |
|||
|
#34
TAPE, SADDLEBAG FRAME (TYPE1)
87127-ME2-770ZA
|
$35.71 | ||
|
Unavailable |
|||
|
#34
TAPE, SADDLEBAG FRAME (TYPE2)
87127-ME2-770ZB
|
$35.71 | ||
|
Unavailable |
|||
|
#35
EMBLEM, SADDLEBAG
87111-MG9-770
|
$27.63 | ||
|
Unavailable |
|||
|
#35
EMBLEM, SADDLEBAG
87136-MA1-770
Superseded by 87111-MG9-770
|
$27.63 | ||
|
Unavailable |
|||
|
#36
LABEL, TRUNK & SADDLEBAG CAUTION
87520-ME2-770
|
$6.47 | ||
|
Unavailable |
|||
|
#37
COLLAR, REFLECTOR SETTING (NOT AVAILABLE)
90129-MA1-740
|
$3.16 | ||
|
Unavailable |
|||
|
#38
SCREW, PAN (3X6)
93500-03006-0G
|
$0.65 | ||
|
Unavailable |
|||
|
#39
SCREW, TAPPING (4X16) (NOT AVAILABLE)
93902-34480
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, CAP (4MM)
94021-04070-0S
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, CAP (5MM)
94021-05070-0S
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, CAP (6MM)
90301-KW8-900
Superseded by 94021-06070-0S
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
NUT, CAP (6MM)
94021-06070
Superseded by 94021-06070-0S
|
$1.70 | ||
|
Unavailable |
|||
|
#42
NUT, CAP (6MM)
94021-06070-0S
|
$1.70 | ||
|
Unavailable |
|||
|
#43
WASHER, PLAIN (4MM)
94101-04700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#44
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#45
PIN, LOCK (6MM)
94251-06000
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
