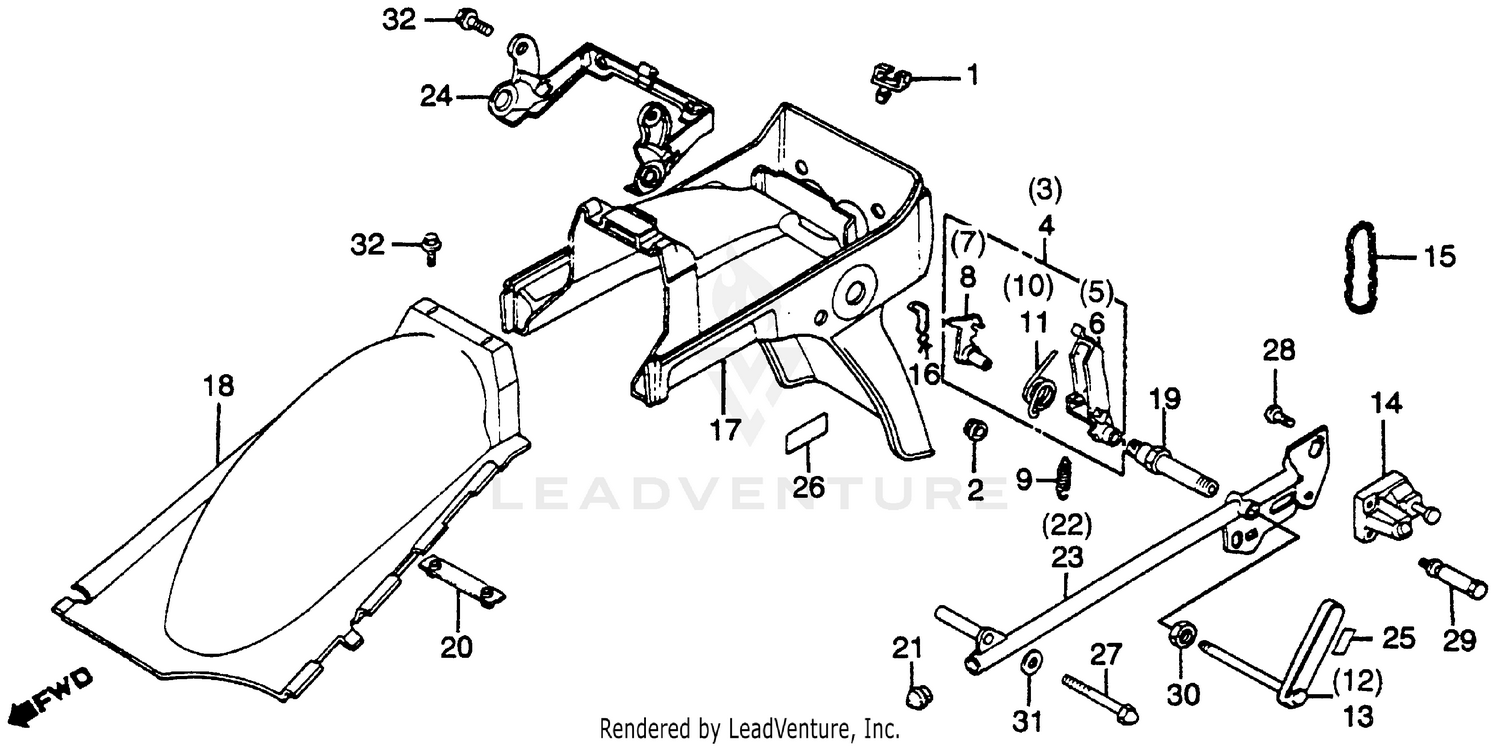

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, CABLE
32985-422-000
|
$2.31 | ||
|
Unavailable |
|||
|
#2
GROMMET B, METER CASE
66219-634-000
|
$4.01 | ||
|
Unavailable |
|||
|
#3
LOCK ASSY., R. SEAT
77205-ME2-000
|
$52.20 | ||
|
Unavailable |
|||
|
#4
LOCK ASSY., L. SEAT
77215-ME2-000
|
$52.20 | ||
|
Unavailable |
|||
|
#5
LEVER, R. SEAT LOCK
77220-ME2-000
|
$28.13 | ||
|
Unavailable |
|||
|
#6
LEVER, L. SEAT LOCK
77221-ME2-000
|
$28.13 | ||
|
Unavailable |
|||
|
#7
PLATE, R. SEAT LOCK
77222-ME2-000
|
$12.58 | ||
|
Unavailable |
|||
|
#8
PLATE, L. SEAT LOCK (NOT AVAILABLE)
77223-ME2-000
|
$11.58 | ||
|
Unavailable |
|||
|
#9
SPRING A, SEAT LOCK (NOT AVAILABLE)
77224-MA1-000
|
$1.97 | ||
|
Unavailable |
|||
|
#10
SPRING B, R. SEAT LOCK (NOT AVAILABLE)
77226-MA1-000
|
$4.16 | ||
|
Unavailable |
|||
|
#11
SPRING B, L. SEAT LOCK (NOT AVAILABLE)
77227-MA1-000
|
$4.16 | ||
|
Unavailable |
|||
|
#12
SHAFT, R. SEAT LOCK
77228-ME2-000
|
$36.16 | ||
|
Unavailable |
|||
|
#13
SHAFT, L. SEAT LOCK
77229-ME2-000
|
$38.54 | ||
|
Unavailable |
|||
|
#14
LOCK ASSY., R. SEAT
77230-MA1-731
|
$108.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
CHAIN, HELMET LOCK (NOT AVAILABLE)
77235-MA1-740
|
$9.38 | ||
|
Unavailable |
|||
|
#16
SPRING, SHAFT STOPPER (NOT AVAILABLE)
77238-MA1-000
|
$3.41 | ||
|
Unavailable |
|||
|
#17
FENDER A, RR.
80100-MA1-000ZD
Superseded by 80100-MA1-610ZA
|
$187.35 | ||
|
Unavailable |
|||
|
#17
FENDER A, RR. *NH125MU* (NIMBUS GRAY METALLIC)
80100-MA1-000ZE
|
$149.16 | ||
|
Unavailable |
|||
|
#18
FENDER B, RR. (NOT AVAILABLE)
80101-MA1-000
|
$65.79 | ||
|
Unavailable |
|||
|
#19
BOLT, RR. FENDER (NOT AVAILABLE)
80105-MA1-000
|
$12.67 | ||
|
Unavailable |
|||
|
#20
PLATE, RR. FENDER (NOT AVAILABLE)
80110-415-000
|
$4.96 | ||
|
Unavailable |
|||
|
#21
CAP, RR. BUMPER (NOT AVAILABLE)
84103-MA1-000
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUMPER, R. RR. (NOT AVAILABLE)
84151-MA1-000
|
$71.30 | ||
|
Unavailable |
|||
|
#23
BUMPER, L. RR.
84152-MA1-000
|
$71.30 | ||
|
Unavailable |
|||
|
#24
BRACKET, TAILLIGHT (NOT AVAILABLE)
84700-MA1-000
|
$54.27 | ||
|
Unavailable |
|||
|
#25
LABEL, HELMET HOLDER
87511-323-670
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#26
MARK, ACCESSORIES & LOADING CAUTION
87512-461-770
|
$7.12 | ||
|
Unavailable |
|||
|
#27
BOLT, CAP (8X70)
90101-MA1-000
|
$4.20 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN (6X8)
90106-MA1-000
|
$2.23 | ||
|
Unavailable |
|||
|
#29
BOLT, SEAT LOCK (NOT AVAILABLE)
90107-MA1-000
|
$6.28 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (14MM)
94002-14000
Superseded by 94002-14000-0S
|
$0.87 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (14MM)
94002-14000-0S
|
$0.87 | ||
|
Unavailable |
|||
|
#31
WASHER, FLAT (8MM)
94103-08200
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
