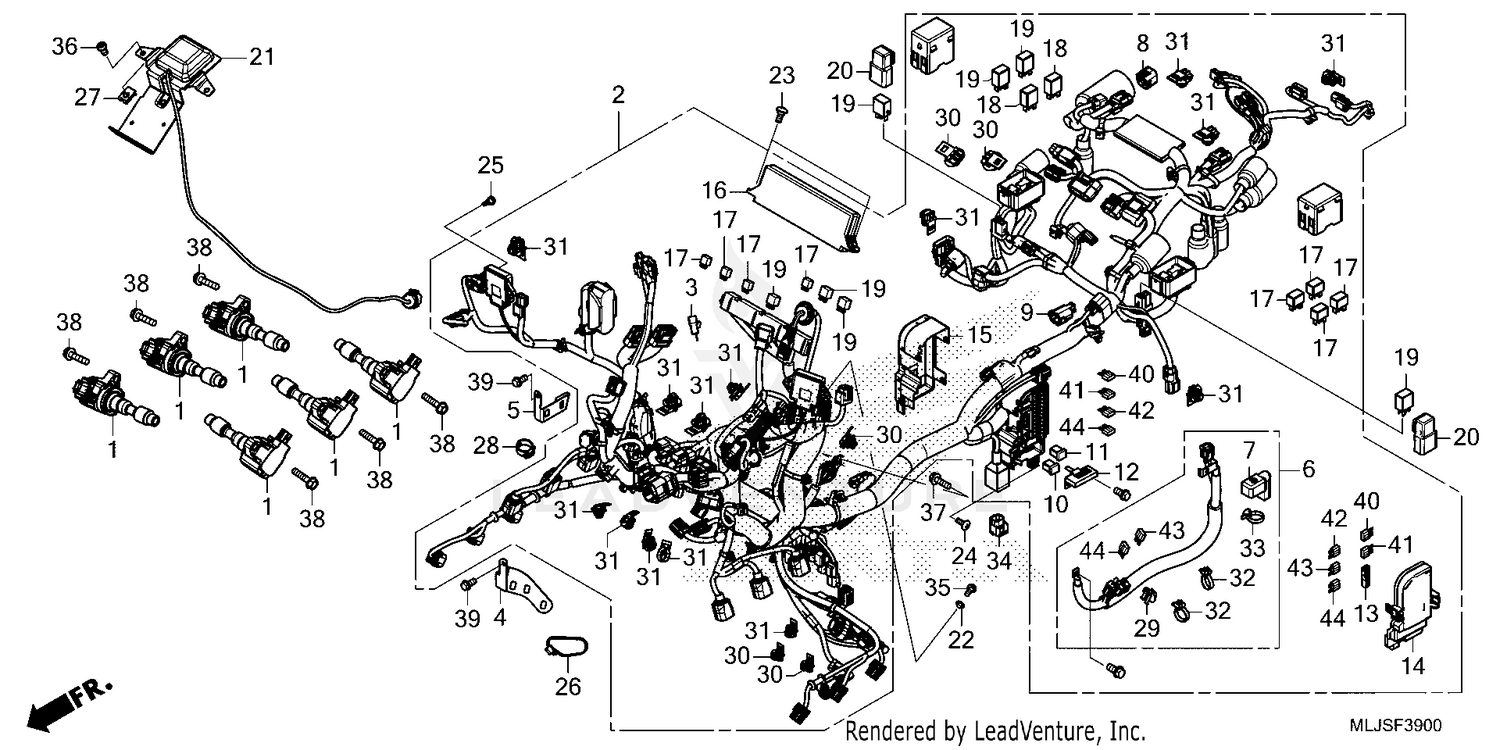

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL ASSY., PLUG TOP
30510-MKC-A01
|
$138.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRE HARNESS
32100-MLJ-M10
|
$2,374.31 | ||
|
Unavailable |
|||
|
#2
WIRE HARNESS
32100-MLJ-M11
|
$2,467.02 | ||
|
Unavailable |
|||
|
#3
CONNECTOR, DIODE (2P) (3A)
32146-S84-003
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, CONNECTOR B
32153-MKC-A00
|
$12.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, CONNECTOR C
32158-MKC-A00
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, STARTER BATTERY
32401-MKC-A20
|
$121.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, START BAT
32401-MLJ-A30
|
$97.05 | ||
|
Unavailable |
|||
|
#7
COVER, BATTERY TERMINAL
32412-MCA-000
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, DUMMY (WPC 4P 090 M) (NATURAL)
32605-GEV-761
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE, BLOCK (60A) (LOW-PROFILE)
38211-MCA-A61
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE, BLOCK (40A)
38211-SNA-A21
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE A, MULTI BLOCK (120A/40A)
38231-SFE-J01
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
PULLER, MINI FUSE (SUMITOMO)
38235-S04-003
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER SET (UPPER)
38255-MLJ-M10
|
$16.76 | ||
|
Unavailable |
|||
|
#15
COVER (LOWER)
38256-MCA-A61
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER (UPPER)
38282-MKC-A01
|
$21.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
RELAY (MICRO ISO 4P)
38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#18
RELAY, POWER (MICRO ISO 5P)
38502-MCS-G01
|
$12.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
RELAY, POWER (MICRO ISO 4P)
38503-MCA-A61
|
$17.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
SUSPENSION, POWER RELAY
38506-MCS-G00
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
ANTENNA ASSY., SXM
39125-MLJ-M01
|
$160.38 | ||
|
Unavailable |
|||
|
#22
COLLAR (6X5.5)
90007-MA3-770
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TAPPING (5X16)
93903-25380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TRUSS (5X14)
90109-KBV-000
|
$2.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, SPLASH GUARD
90300-GB6-920
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP, WIRE HARNESS
90683-KJ2-003
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, CONNECTOR (NATURAL)
91533-S04-003
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, CONNECTOR (DARK BLUE) (NOT AVAILABLE)
90651-K1N-V61
|
$0.96 | ||
|
Unavailable |
|||
|
#30
CLIP, CONNECTOR (DARK BLUE)
91535-STK-003
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, CONNECTOR
90651-K2T-V01
|
$1.33 | ||
|
Unavailable |
|||
|
#31
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP, HARNESS BAND (157.7MM) (BLACK)
91540-S7S-003
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP, HARNESS BAND (145MM) (BLACK)
91541-S0A-003
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAP, DUMMY (6P) (RED)
91771-MKK-H11
|
$25.67 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN (4X14)
93500-04014-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN (5X10)
93500-05010-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)
95701-06025-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#40
FUSE, MINI (5A) (Honda Code 5026521)
98200-40500
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#41
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#42
FUSE, MINI (15A) (Honda Code 4853438)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
|
#43
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#44
FUSE, MINI (30A) (Honda Code 5359666)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
