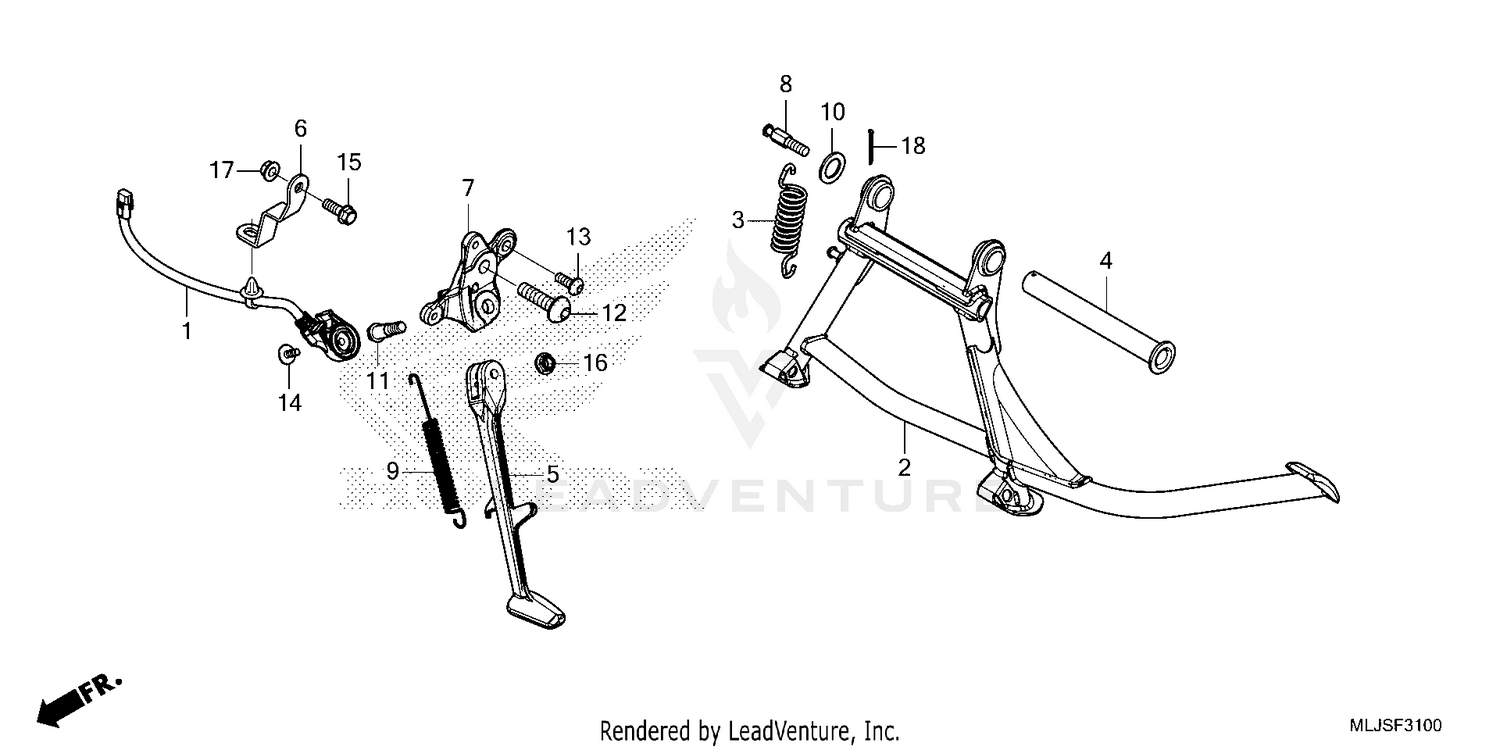

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., SIDE STAND (MT)
35700-MKC-A21
|
$89.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAND, MAIN
50500-MKC-A00
|
$188.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, MAIN STAND
50525-MKC-A00
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, MAIN STAND PIVOT
50526-MKC-A00
|
$21.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAR, SIDE STAND
50530-MKC-A00
|
$140.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SIDE STAND
50535-MKC-A00
|
$78.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOOK, MAIN STAND SPRING
50538-MCA-000
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, SIDE STAND
50540-MFL-000
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PILLION FOOTPEG
50712-405-000
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SIDE STAND PIVOT
90108-MKC-A00
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SOCKET (12X45)
90126-MKC-A01
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (8X22)
90128-KET-900
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL (6X16)
90147-MCE-950
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SIDE STAND
90303-MKC-A00
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, COTTER (2.5MM)
94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
