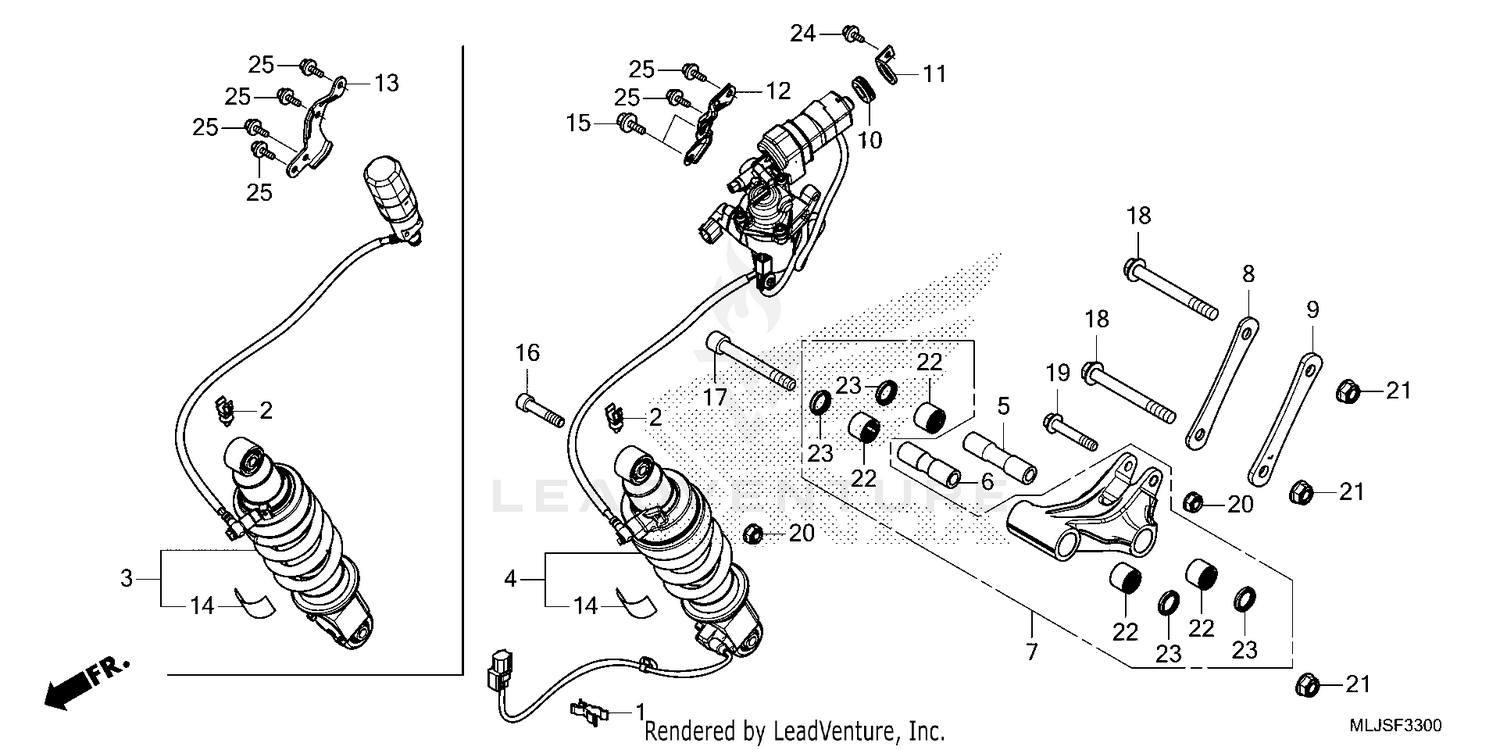

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, BREATHER TUBE
11338-KJ9-751
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, TUBE
17938-MKA-D21
|
|||
|
Unavailable |
|||
|
#4
CUSHION ASSY., RR.
52400-MKC-AE1
|
$3,273.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR B, CUSHION ARM
52462-MKC-A00
|
$18.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR C, CUSHION ARM
52463-MCA-000
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM SUB-ASSY., RR. SHOCK ABSORBER
52465-MKC-A00
|
$353.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, R. CUSHION CONNECTING
52471-MKC-A00
|
$25.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, L. CUSHION CONNECTING
52472-MKC-A00
|
$17.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET, MOTOR MOUNTING
52491-MCA-000
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, MOTOR
52492-MCA-000
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, RR. CUSHION ADJUSTER
52493-MKC-A00
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, RR. DAMPER CAUTION (ENGLISH)
87516-KV6-610
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X16)
90123-MEN-670
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SOCKET (10X48)
90126-MBN-670
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SOCKET (12X102)
90128-MN1-670
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (12X112)
90136-MKC-A00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (10X58)
90153-KK0-000
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U (10MM) NUT, SELF-LOCK (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT, FLANGE (12MM) (FUSE RASHI)
90306-KF0-003
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BEARING, NEEDLE (20X26X20)
91072-MY1-005
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (20X26X4.5) (ARAI)
91254-KS6-003
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X12)
96300-06012-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X14)
96300-06014-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
