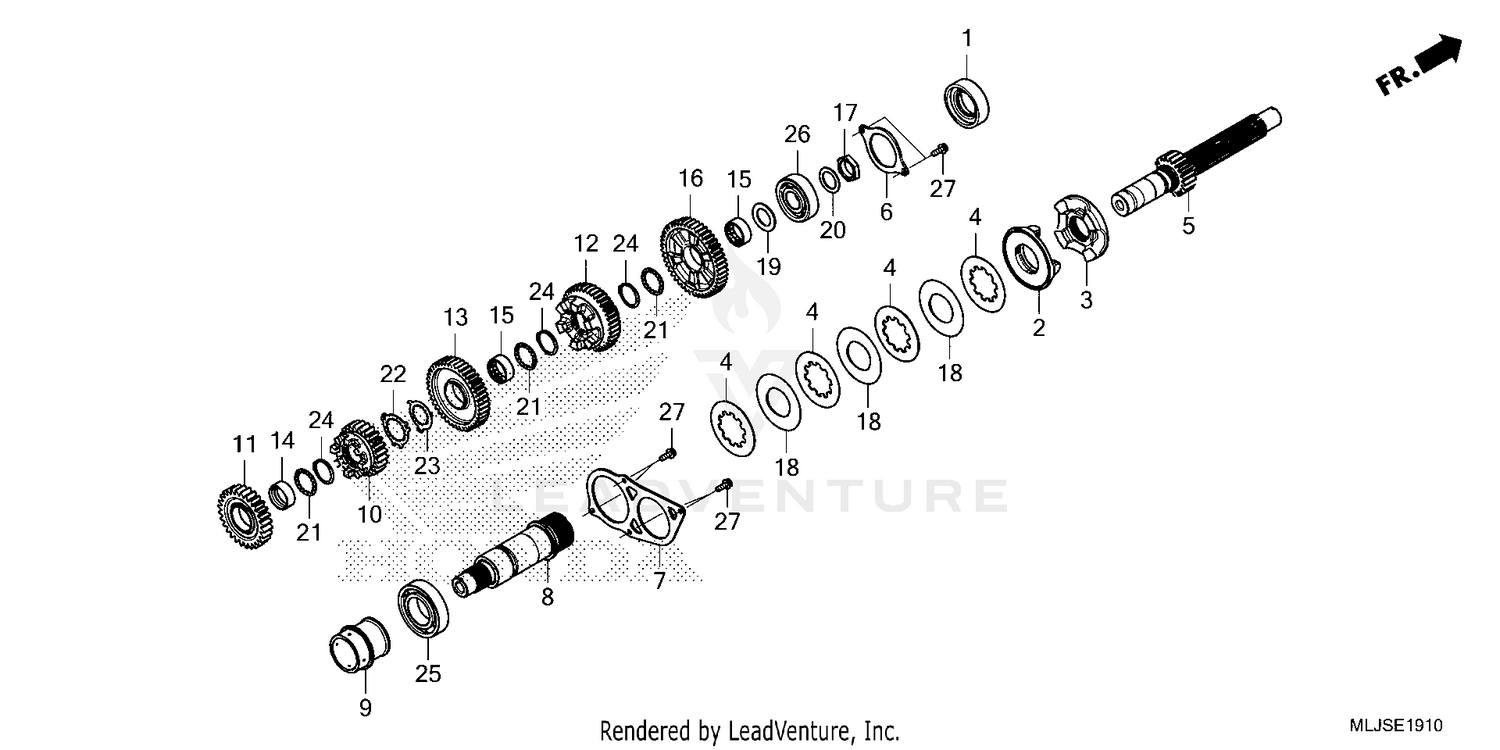

Transmission (mainshaft) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER A, BEARING
11371-MKC-A20
|
$10.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
LIFTER, MAIN DAMPER
23112-MKC-A20
|
$51.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAM, MAIN DAMPER
23113-MKC-A20
|
$49.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, MAIN DAMPER
23114-MKC-A20
|
$13.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
MAINSHAFT (20T)
23211-MKC-A20
|
$248.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE A, BEARING SETTING
23212-MKC-A00
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE B, BEARING SETTING
23213-MKC-A00
|
$23.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
MAINSHAFT (OUTER) (23T)
23231-MKC-A20
|
$280.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, CLUTCH (OUTER)
23235-MKC-A00
|
$47.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT SECOND (24T)
23431-MKC-A20
|
$135.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, MAINSHAFT THIRD (28T)
23451-MKC-A20
|
$126.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, MAINSHAFT FOURTH (39T)
23471-MKC-A20
|
$152.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FIFTH (42T)
23491-MKC-A20
|
$143.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR (32X35X13.5)
23492-HL4-000
|
$18.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, SPLINE (32X35X14)
23492-MKC-A20
|
$21.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, MAINSHAFT TOP (46T)
23531-MKC-A00
|
$149.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, LOCK (25MM)
90231-MCH-000
|
$8.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER (42.2X81X1)
90410-MKC-A20
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPECIAL (25X40X2)
90417-HL4-000
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (25X40X2)
90451-MFP-JC0
|
$2.65 | ||
|
Unavailable |
|||
|
#20
WASHER, THRUST (25X40X2)
90451-VM0-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPLINE (32X17X1.667)
90452-MCA-000
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPLINE (32MM)
90466-MKC-A20
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, LOCK (32MM)
90469-MKC-A20
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP (32MM)
90604-MCA-780
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (40X76X18)
91023-MKC-A01
|
$45.71 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, RADIAL BALL (25X62X17) (EC)
91024-MKC-A01
|
$31.98 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
