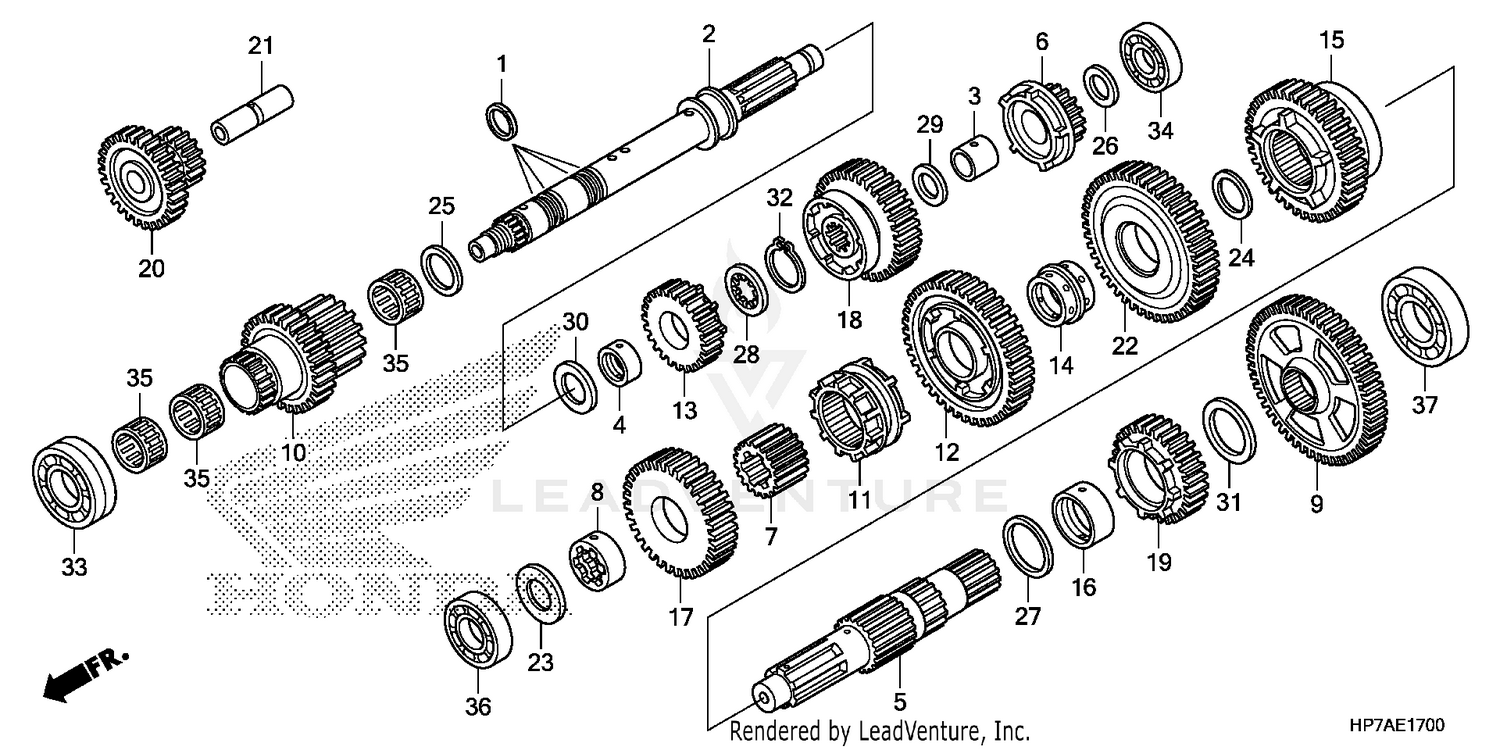

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING, SEALING (23MM)
22814-HP7-A01
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
MAINSHAFT
23210-HP7-A00
|
$255.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH (17MM)
23212-HP7-A00
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH A (22MM)
23214-HA0-000
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
COUNTERSHAFT
23221-HP7-A00
|
$138.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT FIRST (17T)
23411-HP7-A00
|
$122.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR A, SPLINE
23413-HP7-A00
|
$26.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SPLINE (25MM)
23414-HA0-000
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT FIRST (52T)
23421-HP7-A00
|
$100.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT SECOND & FOURTH (19T/28T)
23431-HP7-A00
|
$137.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIFTER, COUNTERSHAFT SECOND &FOURTH GEAR (5AT)
23432-HP7-A00
|
$73.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT SECOND (41T)
23441-HP7-A00
|
$104.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT THIRD (24T)
23451-HP7-A00
|
$97.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, REVERSE GEAR (HIGH)
23454-HN2-000
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT THIRD (37T)
23461-HP7-A00
|
$110.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR (28MM)
23472-MT3-000
|
$31.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, COUNTERSHAFT FOURTH (33T)
23481-HP7-A00
|
$102.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, MAINSHAFT FIFTH (33T)
23491-HP7-A00
|
$116.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, COUNTERSHAFT FIFTH (28T)
23511-HP7-A00
|
$98.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, REVERSE IDLE (27T/16T)
23721-HP7-A00
|
$68.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHAFT, REVERSE IDLE
23731-HP7-A00
|
$17.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, REVERSE COUNTER (45T)
23751-HP7-A00
|
$112.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (20MM)
90401-HP0-A00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (25X32X1.0)
90401-HP1-670
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (23MM)
90401-HP7-A00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPECIAL (17MM)
90403-HN8-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, THRUST (28MM)
90405-HP7-A00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPLINE (22MM)
90451-KY1-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, THRUST (17MM)
90454-KF0-000
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER B, THRUST (22MM) (BLUE)
90455-ML7-000
|
$6.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER, THRUST (28MM)
90554-MCA-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP (OUTER) (22MM)
90601-329-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (35X62X18)
91005-HP7-A01
|
$38.31 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, RADIAL BALL (6203)
91006-HP7-A01
|
$19.05 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, NEEDLE (23X27X13)
91021-HP7-A01
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.82 | ||
|
Unavailable |
|||
|
#37
BEARING, RADIAL BALL (6305)
96100-63050-00
|
$18.51 | ||
|
Unavailable |
|||
