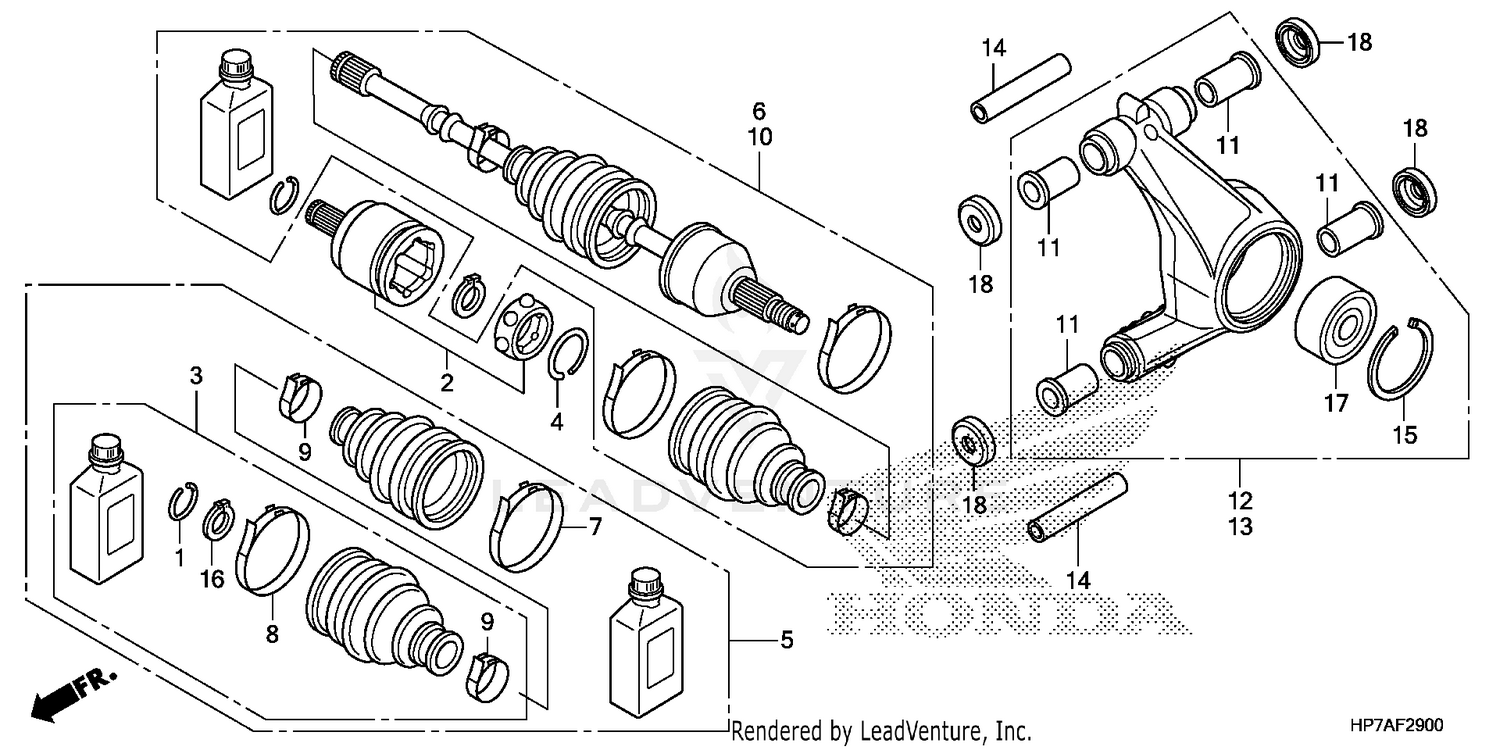

Rear Knuckle@rear Driveshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING, SNAP
42206-HN8-003
|
$1.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
JOINT, INBOARD
42220-HP7-A01
|
$159.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT SET, INBOARD (MSDS)
42230-HP7-A01
|
$62.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING A, INBOARD SNAP (R. SIDE)
42231-HP7-A01
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT SET (MSDS)
42240-HP7-A01
|
$62.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT SET, R. RR. DRIVE (MSDS)
42250-HP7-A01
|
$217.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, OUTBOARD BOOT
42336-HP7-A01
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, INBOARD BOOT (R. SIDE)
42337-HP7-A01
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, SHAFT BOOT (DOUBLE ROLLED BAND)
42339-SJ6-003
Superseded by 44329-SV4-305
|
$18.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, SHAFT BOOT (DOUBLE ROLLED BAND)
44329-SV4-305
|
$18.45 | ||
|
Unavailable |
|||
|
#10
SHAFT SET, L. RR. DRIVE (MSDS)
42350-HP7-A01
|
$217.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH, ARM (UPPER)
51108-HP0-A00
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
KNUCKLE SUB-ASSY., R. RR.
52205-HP7-A00
|
$155.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
KNUCKLE SUB-ASSY., L. RR.
52255-HP7-A00
|
$155.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, KNUCKLE
52464-HP7-A00
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP, SPECIAL (INNER) (62)
90651-HP6-A00
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP (R. SIDE)
90653-HP7-A01
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, ANGULAR BALL (34X61X27) (NTN)
91051-HP6-A01
|
$71.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK) (FOR FR.)
91262-MA0-015
|
$13.53 | ||
|
Available to order. Add to View Price |
|||
