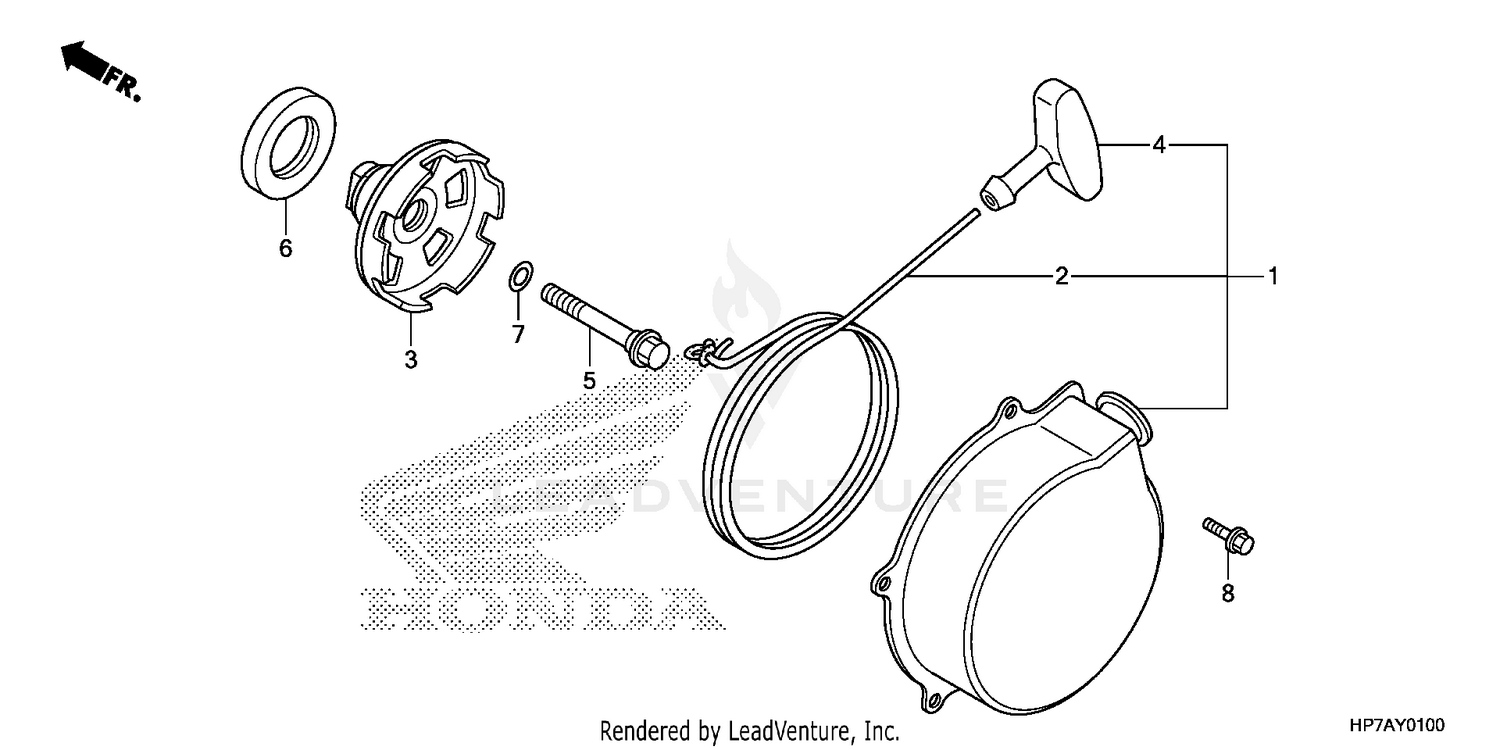

Recoil Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER ASSY., RECOIL
28400-HR0-F21
|
$131.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROPE, RECOIL STARTER
28407-HM7-A11
|
$30.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
PULLEY, RECOIL
28430-HP5-660
|
$55.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
KNOB, RECOIL STARTER
28461-HP5-661
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SPECIAL (12MM)
90081-HN5-670
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (32X52X9) (ARAI)
91202-HP0-A01
|
$16.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING (11.5X2.3)
91303-679-003
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
