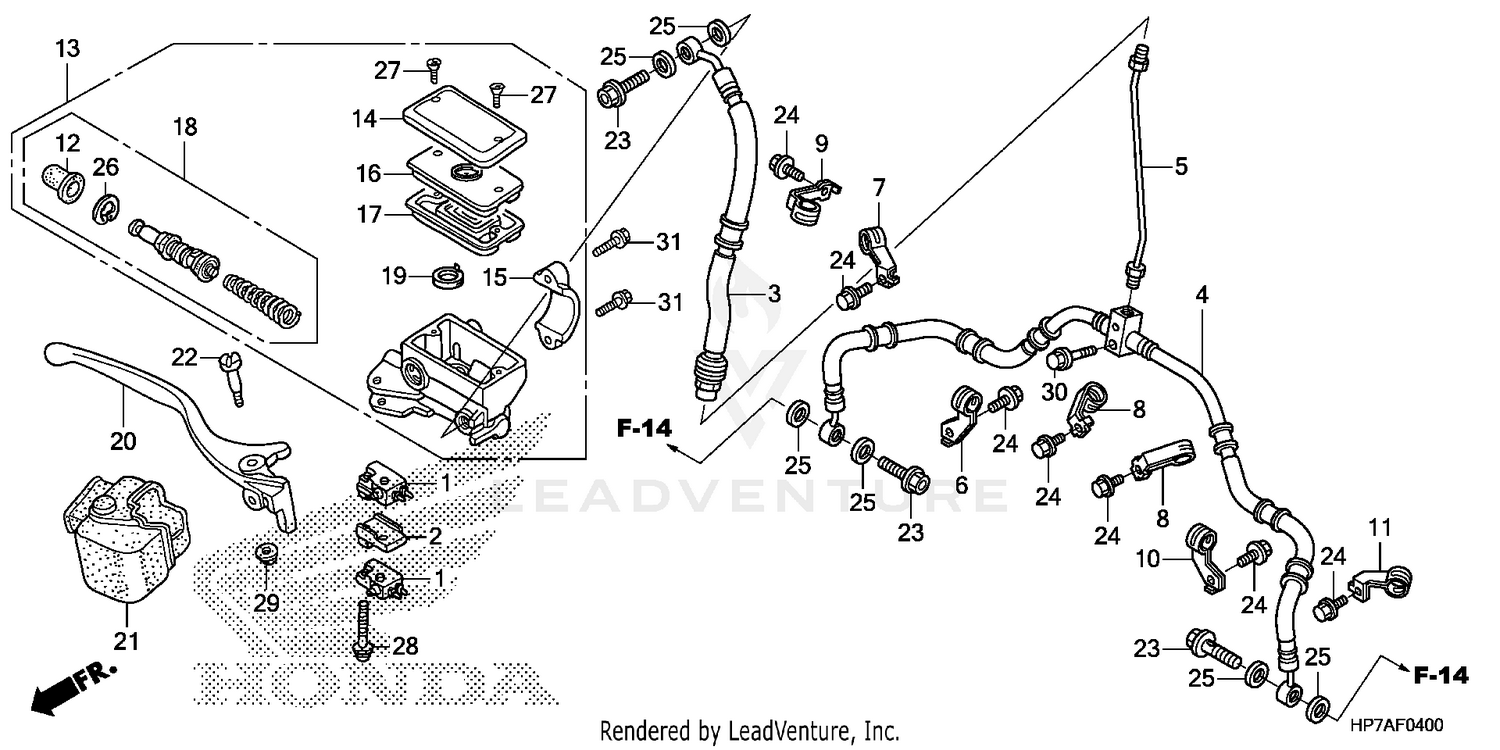

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP (COO)
35340-HR0-305
|
$21.85 | ||
|
Available to order. Add to View Price |
|||
|
#1
SWITCH ASSY., FR. STOP (COO)
35340-ML4-005
Superseded by 35340-HR0-305
|
$21.85 | ||
|
Unavailable |
|||
|
#2
SPACER, FR. STOP SWITCH
35343-HN2-740
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE A, FR. BRAKE
45126-HP5-601
|
$15.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE B, FR. BRAKE
45127-HP7-A01
|
$47.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, FR. BRAKE
45128-HP7-A00
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP A, R. FR. BRAKE HOSE
45461-HP5-600
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP B, R. FR. BRAKE HOSE
45462-HP5-600
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP C, FR. BRAKE HOSE
45463-HP5-600
|
$68.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP B, FR. BRAKE HOSE
45464-HN1-000
|
$64.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLAMP A, L. FR. BRAKE HOSE
45471-HP5-600
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP B, L. FR. BRAKE HOSE
45472-HP5-600
|
$33.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
45510-HN8-305
|
$118.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
45510-HP0-A51
Superseded by 45510-HN8-305
|
$118.45 | ||
|
Unavailable |
|||
|
#14
CAP, MASTER CYLINDER
45513-MB4-673
|
$54.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, MASTER CYLINDER
45517-MA5-671
|
$35.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, DIAPHRAGM
45518-MB4-671
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
DIAPHRAGM
45520-MA5-672
|
$21.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
MASTER CYLINDER SET
45530-HN8-006
|
$16.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEPARATOR
46666-HB9-006
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
LEVER, R. HANDLE
53175-HP0-A00
|
$26.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, R. HANDLE
53176-HN8-000
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HANDLE LEVER
90114-HP0-A51
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X12)
90181-KV3-700
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#28
SCREW-WASHER (4X30) (N/A: USE ALTERNATE P/N 93891-04030-08)
93893-04030-07
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X25)
95701-06025-07
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
