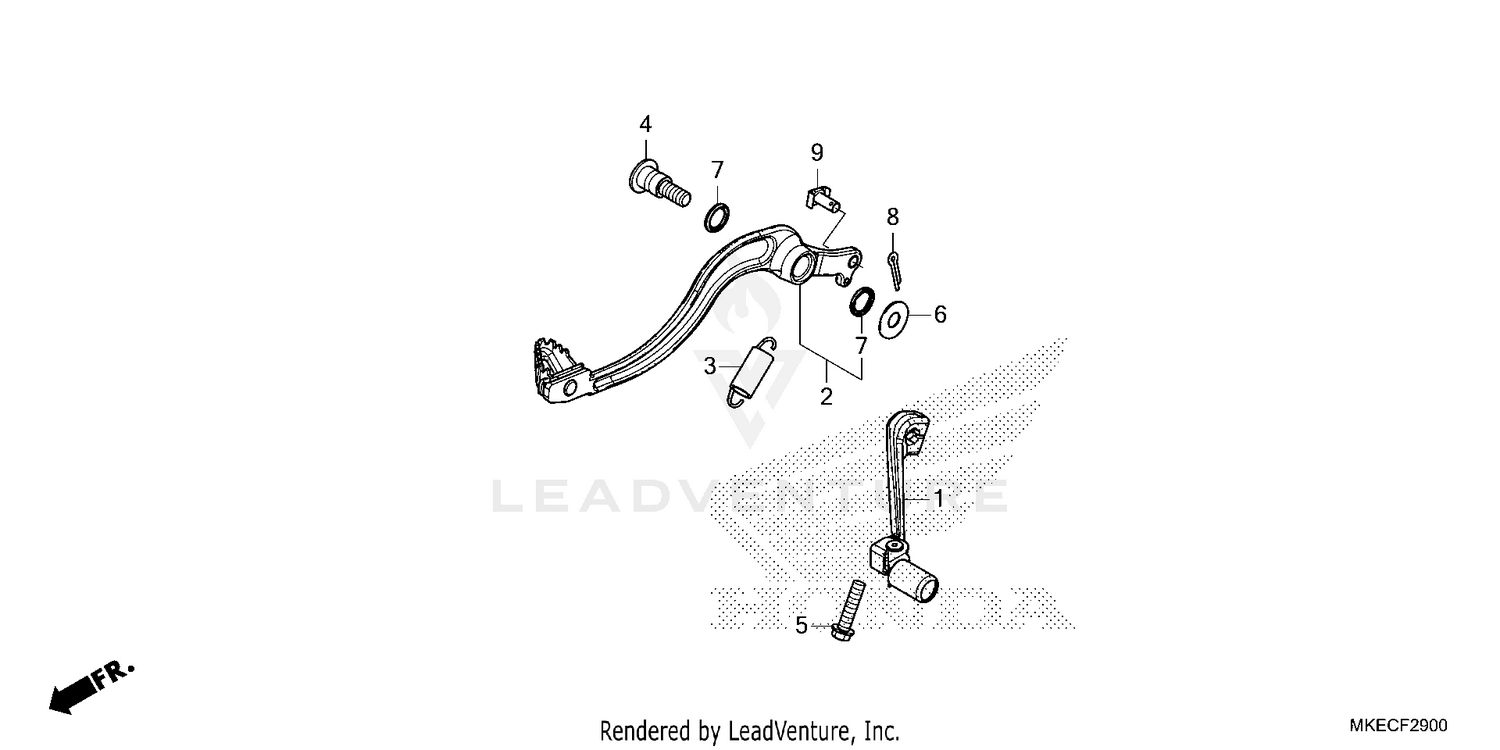

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, CHANGE
24700-MKE-A00
|
$131.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, RR. BRAKE
46510-MKE-A70
|
$141.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING ASSY., RR. BRAKE RETURN
46511-KZ4-J00
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, BRAKE PIVOT
46513-KRN-730
|
$17.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE (6X25)
90020-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (26X10.5)
90512-KRN-730
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUST SEAL (15X20X2.5)
91251-444-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, COTTER (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
