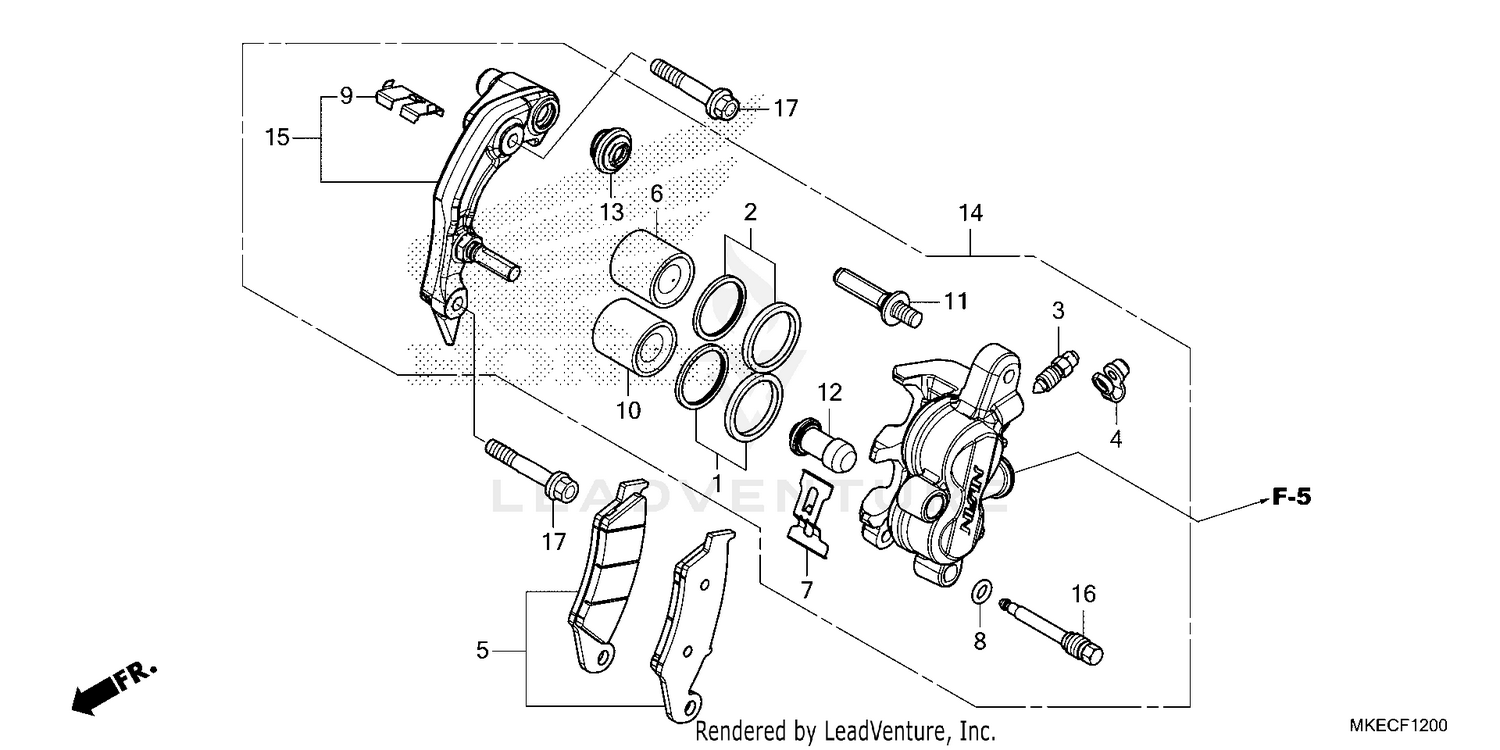

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (RIGHT SIDE, QTY-1)
06431-MA3-405
|
$9.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
SEAL SET, PISTON
06451-166-405
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
PAD SET, FR.
45105-MY6-415
|
$55.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON (30)
45107-MKE-A71
|
$42.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, PAD
45108-MKE-A71
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, STOPPER
45111-MAJ-G41
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RETAINER
45112-MKE-A71
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON (27)
45117-MKE-A71
|
$38.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT A, BOLT
45131-HA5-672
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CALIPER SUB-ASSY., L. FR.
45150-MKE-A71
|
$290.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET SUB-ASSY., L. FR.
45190-MKE-A71
|
$153.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, HANGER
45215-HP1-006
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X40)
90110-KZ4-J40
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
