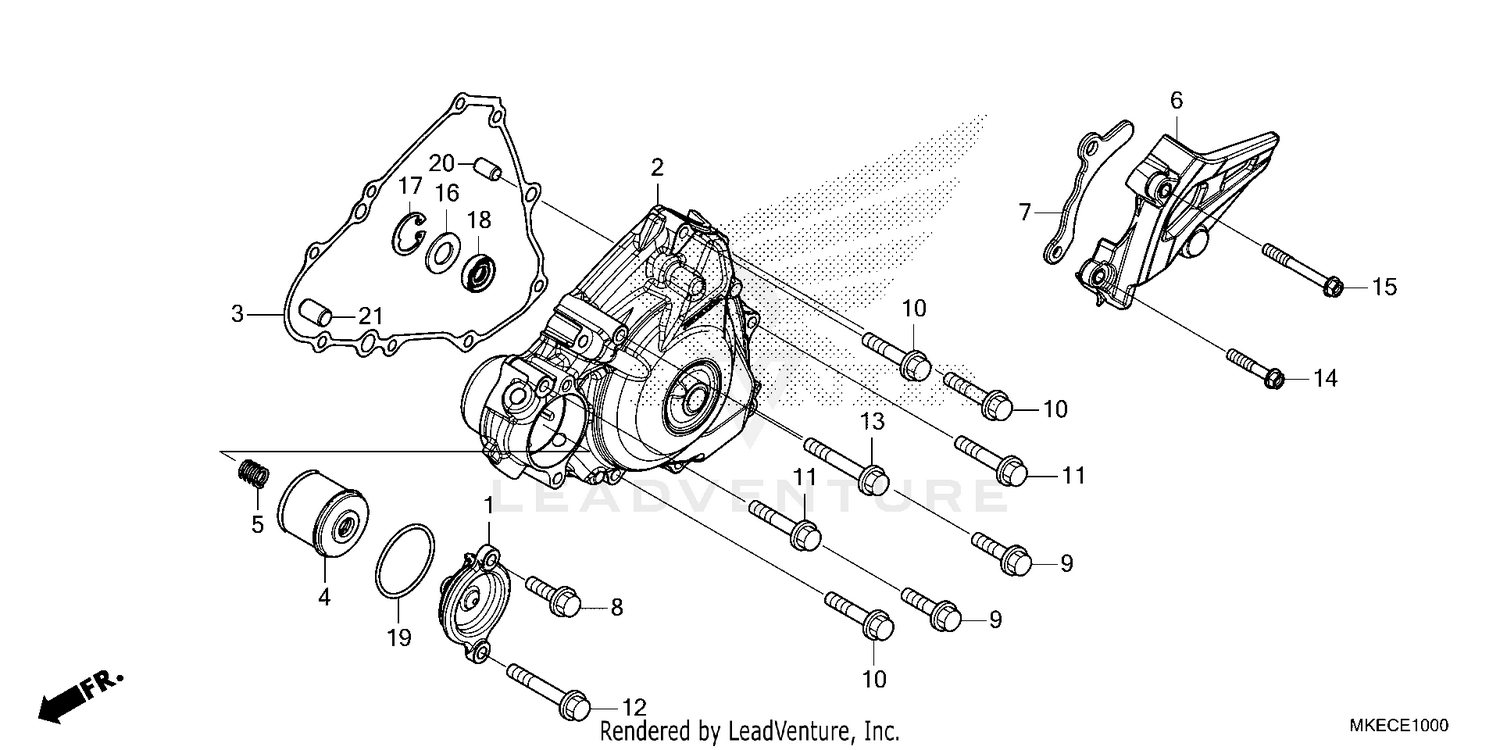

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, OIL FILTER
11333-MKE-A00
|
$50.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. CRANKCASE
11340-MKE-AF0
|
$258.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, L. COVER
11395-MKE-A01
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
FILTER, ENGINE OIL
15412-MEN-671
|
$9.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SPRING, OIL FILTER
15414-MEB-670
|
$3.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COVER, DRIVE SPROCKET
23810-MKE-AF0
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, DRIVE CHAIN
23812-MKE-AF0
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X18)
90020-GHB-650
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X25)
90020-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X35)
90020-GHB-720
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X40)
90020-GHB-740
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X50)
90020-GHB-760
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X55)
90020-GHB-770
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X25)
90021-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X50)
90021-GHB-760
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (13X24X1.6)
90401-MEY-670
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP, SPECIAL (INNER) (24MM)
90602-MEB-670
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL (10X21X5)
91204-MEN-A31
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (39.8X2.2)
91302-PA9-003
Superseded by 91302-K0G-911
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
