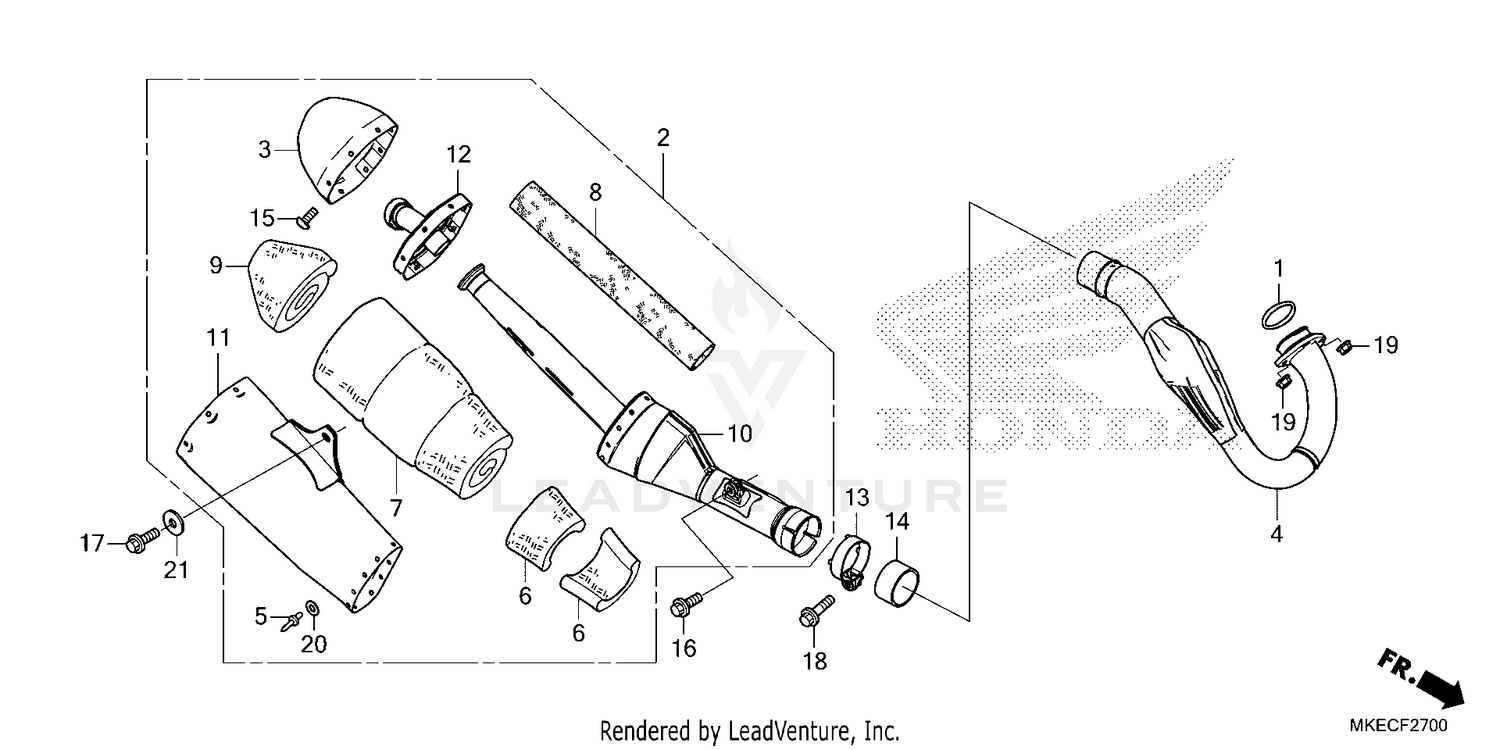

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-MKE-AF0
|
$19.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
MUFFLER ASSY.
18300-MKE-AF0
|
$1,155.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, END
18318-MKE-AF0
|
$141.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, EX.
18320-MKE-AF0
|
$369.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIVET, BLIND (3.2)
18326-KRN-A00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
PACK, FR. GLASS WOOL
18333-MKE-AF0
|
$13.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
PACK, GLASS WOOL BODY
18334-MKE-AF0
|
$123.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
WOOL, SUS
18337-MKE-AF0
|
$107.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
WOOL, TAIL GLASS
18339-MEN-E20
|
$56.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
MUFFLER, FR.
18360-MKE-AF0
|
$227.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BODY, MUFFLER
18361-MKE-AF0
|
$442.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEPARATOR
18362-MKE-AF0
|
$57.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, MUFFLER JOINT
18375-MEN-A30
|
$24.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, MUFFLER
18391-ML0-003
|
$35.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SPECIAL (5X10)
90103-MKE-AF0
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (8X20)
90109-MEN-A30
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X25) (SH)
90109-MKE-A00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X32)
90124-MEB-770
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, PLAIN (5MM)
94101-05800
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (8MM)
94103-08000
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
