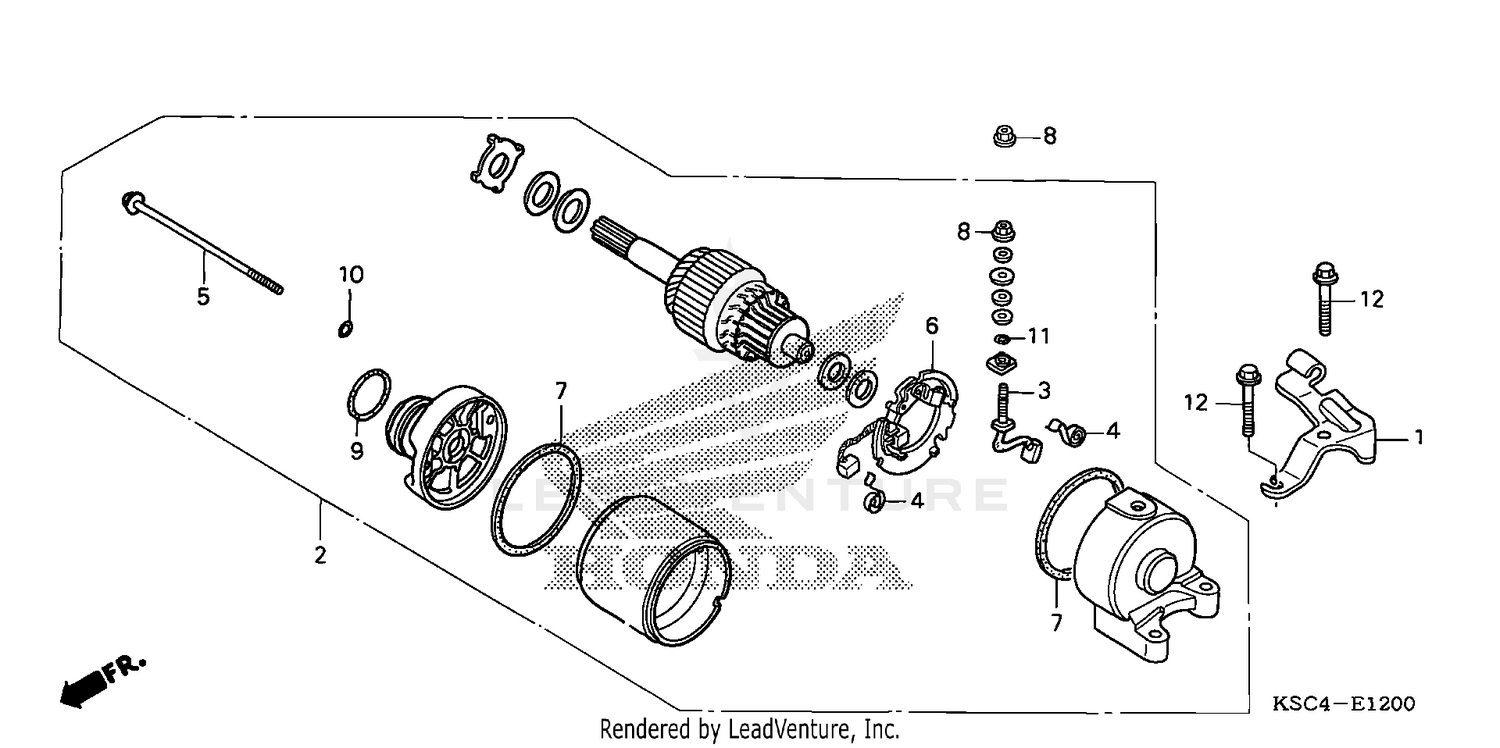

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECEIVER, CLUTCH CABLE
22838-KSC-670
|
$15.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
STARTER MOTOR ASSY.
31200-KSC-671
|
$432.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
TERMINAL SET, BRUSH
31201-MBE-008
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, CARBON BRUSH
31204-KS5-901
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SETTING
31205-MBE-008
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER SET, BRUSH
31206-MBE-008
|
$29.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING
31207-MBE-008
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-WASHER (6MM)
90071-MB0-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-RING (24.4X3.1)
91312-MG7-003
|
$7.98 | ||
|
Unavailable |
|||
|
#10
O-RING
91320-MBE-008
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (4X2)
91320-MB0-000
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
