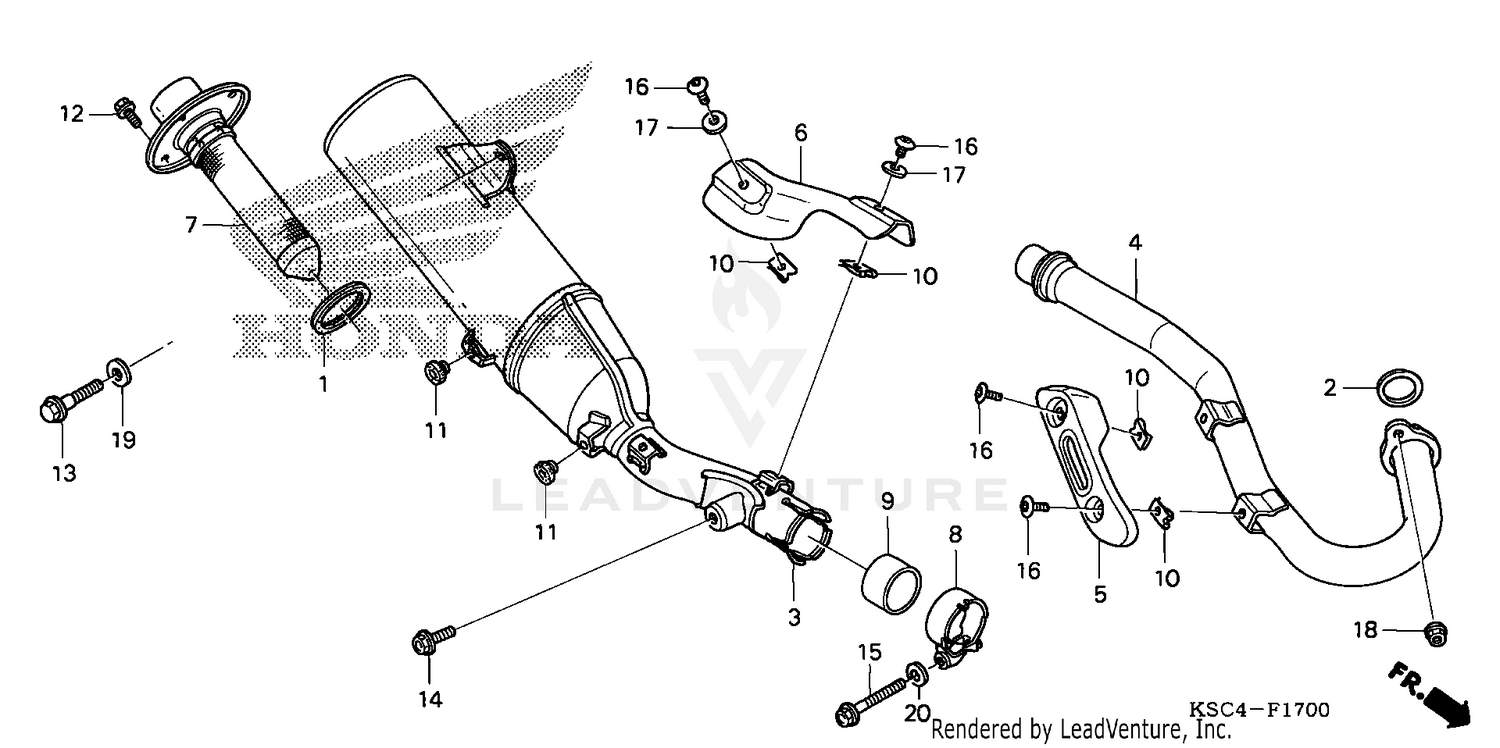

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. MUFFLER
18291-KPS-900
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, EX. PIPE
18291-MM5-860
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
MUFFLER
18310-KSC-010
|
$722.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, EX.
18320-KSC-000
|
$333.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR, EX. PIPE
18323-KRN-000
|
$88.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR, MUFFLER
18324-KRN-000
|
$96.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARRESTER ASSY.
18355-KSC-A10
|
$288.90 | ||
|
Unavailable |
|||
|
#7
ARRESTER ASSY.
18355-KSC-000
Superseded by 18355-KSC-A10
|
$288.90 | ||
|
Unavailable |
|||
|
#8
BAND, R. MUFFLER
18373-KE8-000
|
$34.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, R. MUFFLER
18374-MG7-701
Superseded by 18373-KE8-000
|
$34.71 | ||
|
Unavailable |
|||
|
#9
GASKET, MUFFLER
18392-MK4-000
|
$16.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT, SPRING (6MM)
19508-KA3-710
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, SIDE COVER
83512-KA4-700
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X10)
90101-KCE-000
Superseded by 96001-06010-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X24)
90101-KZ3-J50
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X18)
90123-KZ4-J40
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X35)
90124-KZ4-J40
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, SPECIAL (6MM)
90170-MEB-670
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (6MM)
90406-KV3-780
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, PLAIN (8MM)
94102-08800
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
