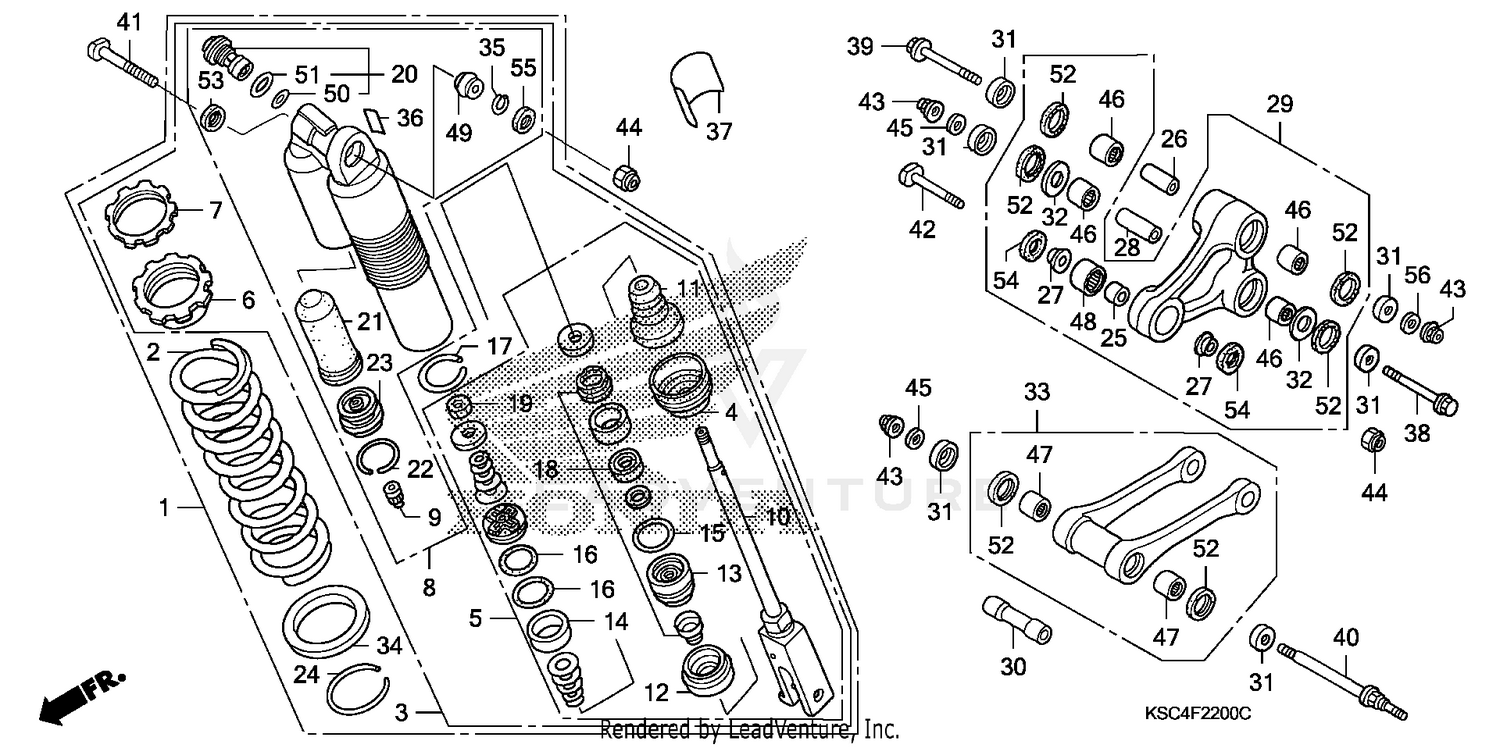

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR.
52400-KSC-A01
|
$1,340.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (47.1N/MM,4.8KGF/MM) (SHOWA)
52401-KSC-003
|
$190.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (49.0N/MM,5.0KGF/MM) (SHOWA)
52401-KZ3-J41
|
$162.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (44.6N/MM,4.55KGF/MM) (SHOWA)
52402-KZ3-J21
|
$199.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (51.0N/MM,5.2KGF/MM) (SHOWA)
52403-KZ3-J41
|
$143.45 | ||
|
Unavailable |
|||
|
#3
DAMPER, RR.
52410-KSC-A01
|
$785.72 | ||
|
Unavailable |
|||
|
#4
STOPPER, SPRING SEAT
52419-KZ3-J21
|
$25.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, PISTON
52421-KSC-A01
|
$587.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
ADJUSTER, SPRING
52422-KZ3-J31
|
$39.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, ADJUSTER
52423-KZ3-J21
|
$17.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, DAMPER
52425-MEY-671
|
$737.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, AIR VALVE
52425-381-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD
52426-KSC-A01
|
$474.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, STOPPER
52427-KZ3-891
|
$23.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PLATE, END
52428-KRN-711
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE, ROD GUIDE
52429-KZ3-J41
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, PISTON
52431-KZ3-J31
|
$17.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (3.5X43.7)
52434-KZ3-J21
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (42.5X2.0)
52434-KZ3-J31
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, STOPPER
52435-KZ3-J21
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL SET
52436-MEN-671
|
$27.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. (12MM)
52438-KA4-741
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
ADJUSTER, COMPRESSION DAMPING FORCE
52440-MEN-671
|
$155.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
BLADDER
52451-KZ3-891
|
$21.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING, STOPPER
52452-KS7-831
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, CHAMBER
52453-KRN-711
|
$31.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING, STOPPER
52455-KZ3-J21
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR D, CUSHION ARM
52464-KRN-710
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR C, CUSHION ARM
52463-KZ4-J40
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR D, CUSHION ARM SIDE
52466-KRN-710
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR B, CUSHION
52464-KZ4-J20
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
ARM SUB-ASSY., CUSHION
52465-KSR-710
|
$380.82 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR A, CONNECTING ROD
52473-KZ4-J20
|
$18.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR, LINK SIDE
52475-KZ4-J20
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, THRUST
52476-KZ4-J20
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#33
ROD SUB-ASSY., CUSHION CONNECTING
52479-KSR-710
|
$180.62 | ||
|
Unavailable |
|||
|
#34
SEAT, SPRING
52486-KZ3-J21
|
$32.73 | ||
|
Available to order. Add to View Price |
|||
|
#35
RING, STOPPER
52487-KA4-831
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#36
LABEL, RR. DAMPER WARNING
87516-KZ1-600
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, LINK (12X96)
90130-KZ4-J20
|
$11.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BOLT, LINK (12X81.5)
90130-KZ4-J40
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, LINK (12X120)
90131-MEY-000
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, CUSHION (UPPER) (10X53)
90152-MEB-750
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, CUSHION (LOWER) (10X43.5)
90153-KZ4-710
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, HEX. (12MM)
90306-KBP-901
Superseded by 90306-GAB-711
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, U (10MM)
90306-KZ4-711
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, PLAIN (12MM)
90501-KRN-710
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#46
BEARING, NEEDLE (20X26X15)
91051-KSC-003
|
$10.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
BEARING, NEEDLE (20X26X14)
91053-KZ4-J21
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#48
BEARING, NEEDLE (19X26X13)
91074-KRN-711
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#49
BEARING, SPHERICAL (10)
91074-MAC-741
|
$42.44 | ||
|
Available to order. Add to View Price |
|||
|
#50
O-RING (21.5X1.5)
91256-KZ3-731
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#51
O-RING (26.2X1.9)
91257-KZ3-891
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#52
DUST SEAL (25X32X4)
91262-KZ3-731
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#53
DUST SEAL, RR. CUSHION PIVOT
91351-KZ3-731
|
$6.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
DUST SEAL (17.5X26X3)
91351-KRN-711
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#55
DUST SEAL (16X26X3)
91351-MAC-671
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#56
WASHER, PLAIN (12MM)
90501-KZ4-J40
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
