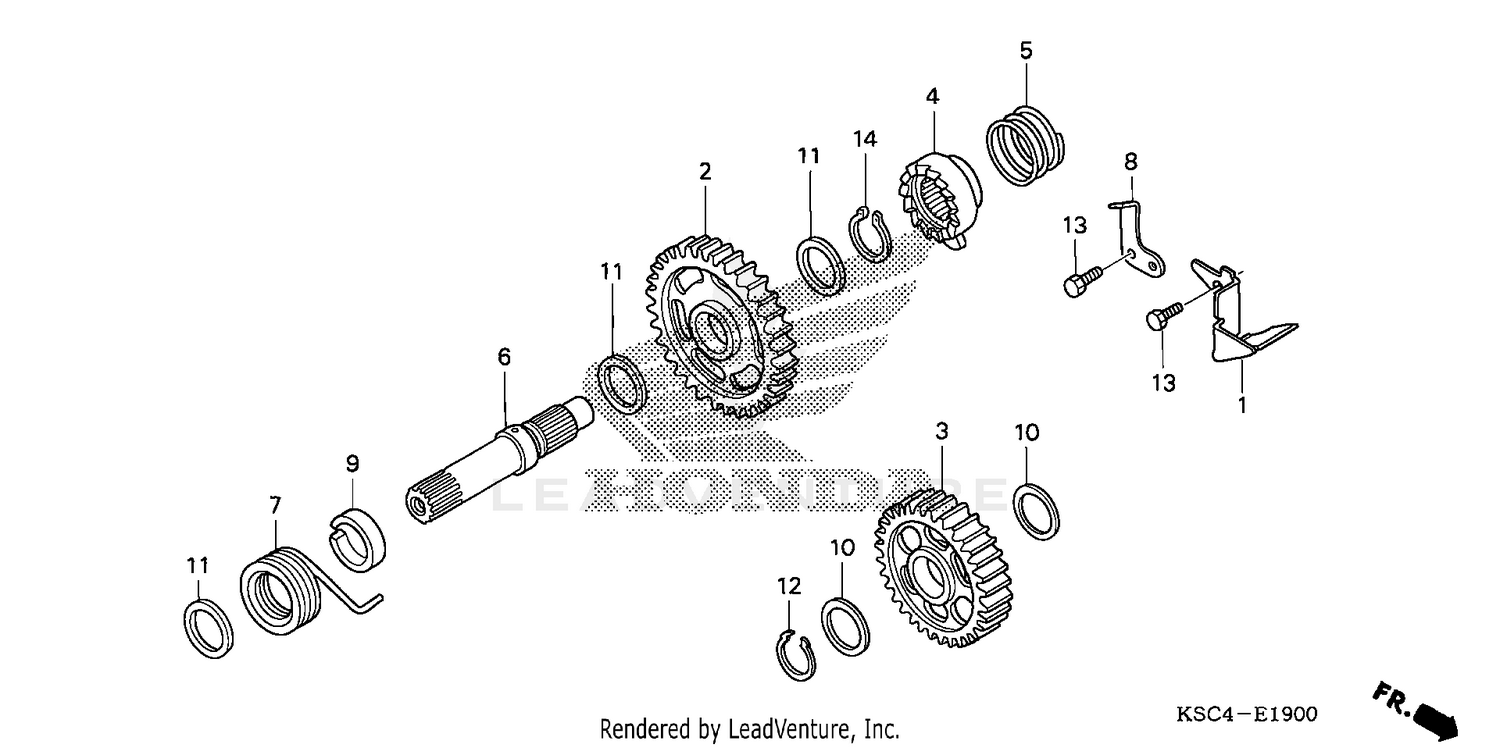

Kick Starter Spindle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, OIL GUIDE
15201-KSC-670
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
PINION, KICK STARTER (32T)
28210-KSC-670
|
$131.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, STARTER IDLE (30T)
28230-KRN-670
|
$74.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
RATCHET, STARTER
28241-KA3-710
|
$78.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, RATCHET
28242-KA3-710
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPINDLE, KICK STARTER
28251-KZ4-000
|
$118.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, STARTER RETURN
28261-KA3-710
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, RATCHET SLIDER
28262-KS6-701
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, KICK SPINDLE
28282-KZ4-B00
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, THRUST (17MM)
90452-178-000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (16.8X24)
90501-444-000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP (OUTER) (17MM)
90601-001-000
|
$1.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, HEX. (6X16)
93301-06016-0A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP (OUTER) (16MM)
94510-16000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
