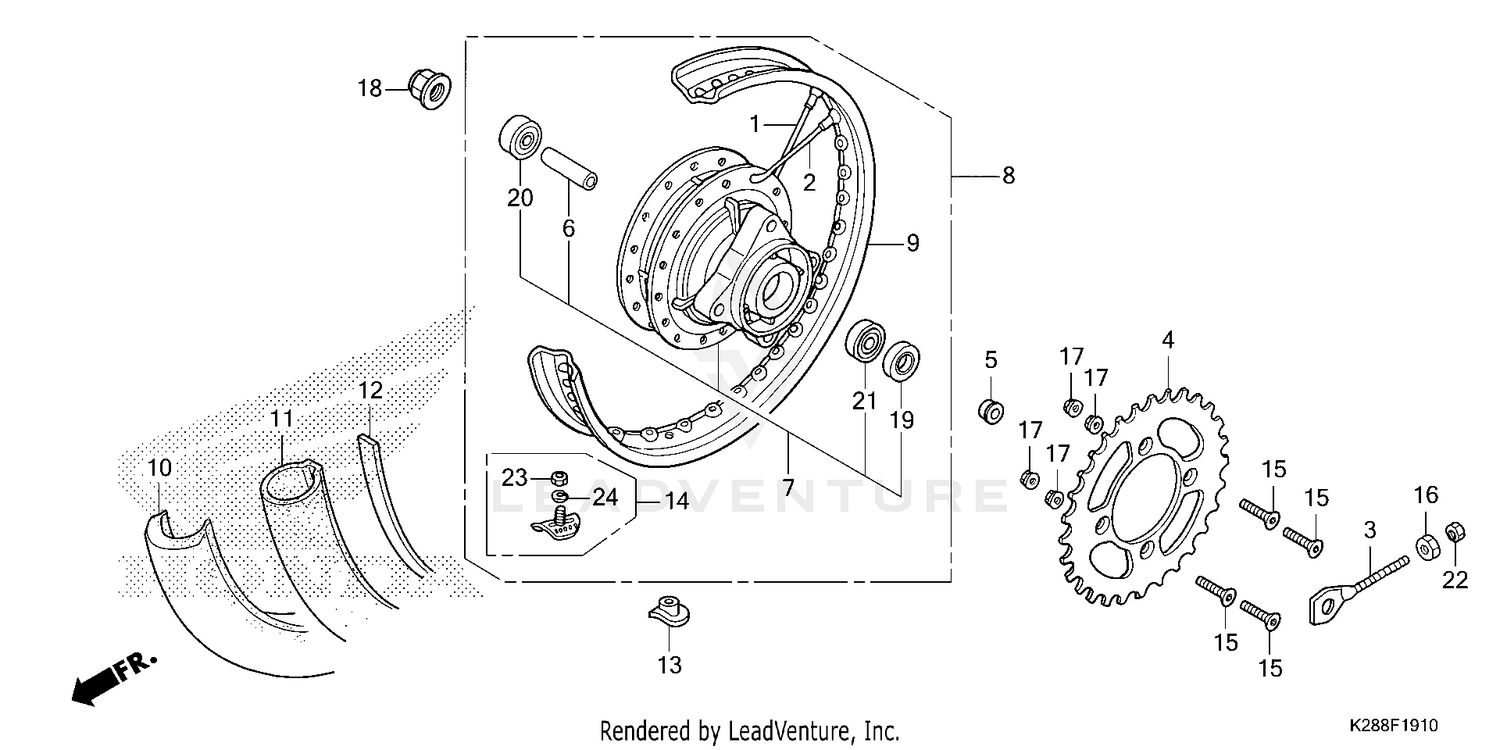

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET A, FR. (B10X123.5) (INSIDE)
06420-K28-910
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET B, FR. (B10X123.0) (OUTSIDE)
06421-K28-910
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADJUSTER, CHAIN
40543-K28-910
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, FINAL DRIVEN (46T)
41201-K28-910
|
$64.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. WHEEL SIDE
42311-K28-910
|
$15.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, RR. AXLE DISTANCE
42620-KYK-910
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
HUB SUB-ASSY., RR.
42635-K28-910
|
$265.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
WHEEL SUB-ASSY., RR. (COO)
42650-K28-305
|
$392.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
WHEEL SUB-ASSY., RR. (COO)
42650-K28-910
Superseded by 42650-K28-305
|
$392.67 | ||
|
Unavailable |
|||
|
#9
RIM, RR. WHEEL (14X1.85)
42701-K28-910
|
$69.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE, RR.
42711-K28-911
Superseded by 42711-K28-912
|
$90.89 | ||
|
Unavailable |
|||
|
#10
TIRE, RR.
42711-K28-912
|
$90.89 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (90/100-14) (CST)
42712-K28-911
|
$37.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLAP, TIRE (CST)
42713-K28-911
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
STOPPER, BEAD (1.85) STOPPER, BEAD (1.85B)
42715-KA2-680
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, FLAT (8X31)
90125-KA4-000
|
$3.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT, SPECIAL (6MM)
90302-KBP-900
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, FLANGE SPECIAL (8MM)
90303-K28-911
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (12MM) (PT)
90306-KYA-601
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUST SEAL (21X37X5.5) (ARAI)
90755-GC4-003
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUST SEAL (21X37X5.5) (ARAI)
90755-GC4-005
Superseded by 90755-GC4-003
|
$6.35 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (6201UU)
91051-K28-911
|
$20.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6301UU)
91052-KWW-C51
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#23
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
