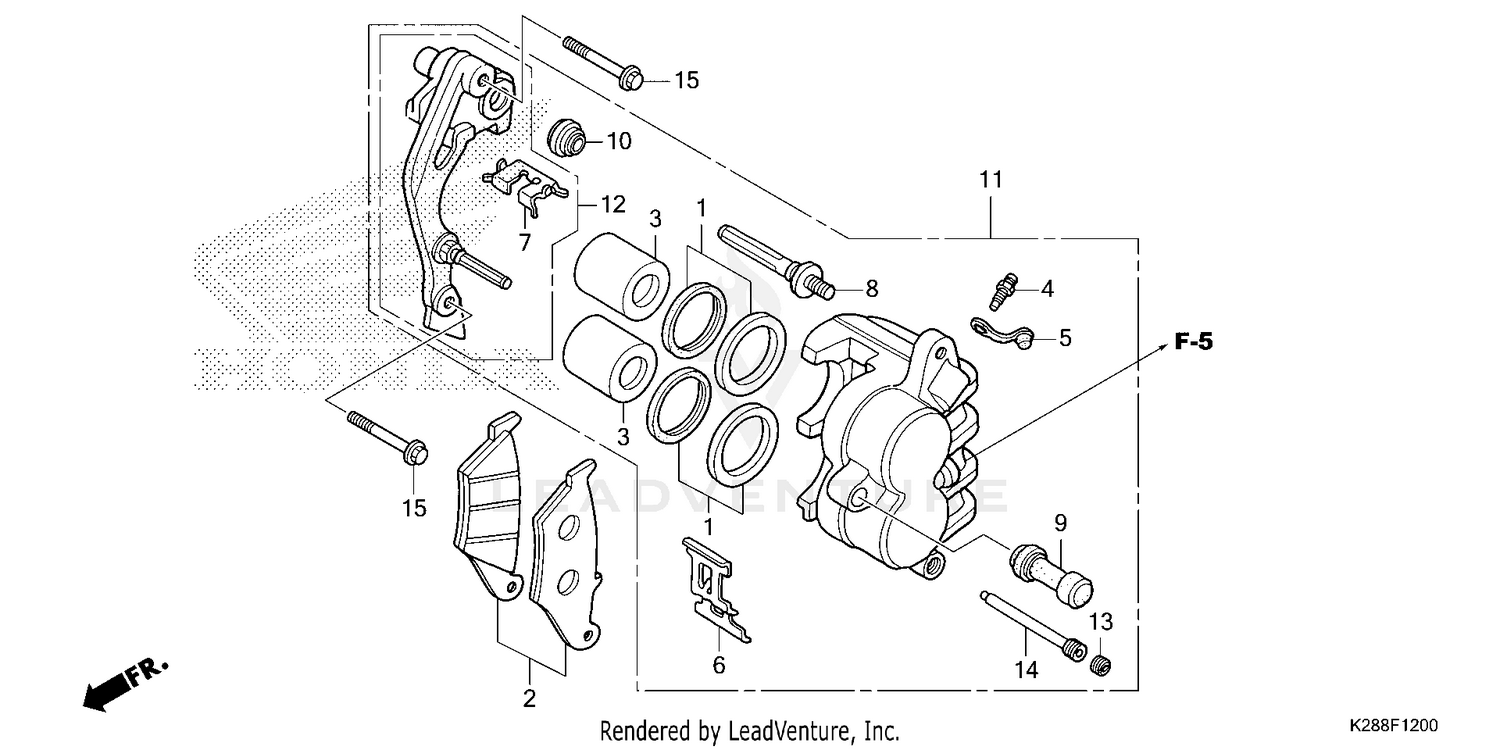

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (RIGHT SIDE, QTY-1)
06431-MA3-405
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, FR.
06455-KSS-952
|
$64.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (27X31)
43107-MAJ-G41
|
$44.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD
45108-KW8-901
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER
45112-KS6-701
|
$7.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT A, BOLT
45131-HA5-672
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CALIPER SUB-ASSY., L. FR. (NISSIN)
45150-K28-911
|
$353.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET SUB-ASSY., L. FR.
45190-KCZ-J71
|
$144.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, PIN
45203-MG3-016
|
$6.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN, HANGER (NISSIN)
45215-ML7-922
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X40)
90131-KRH-900
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
