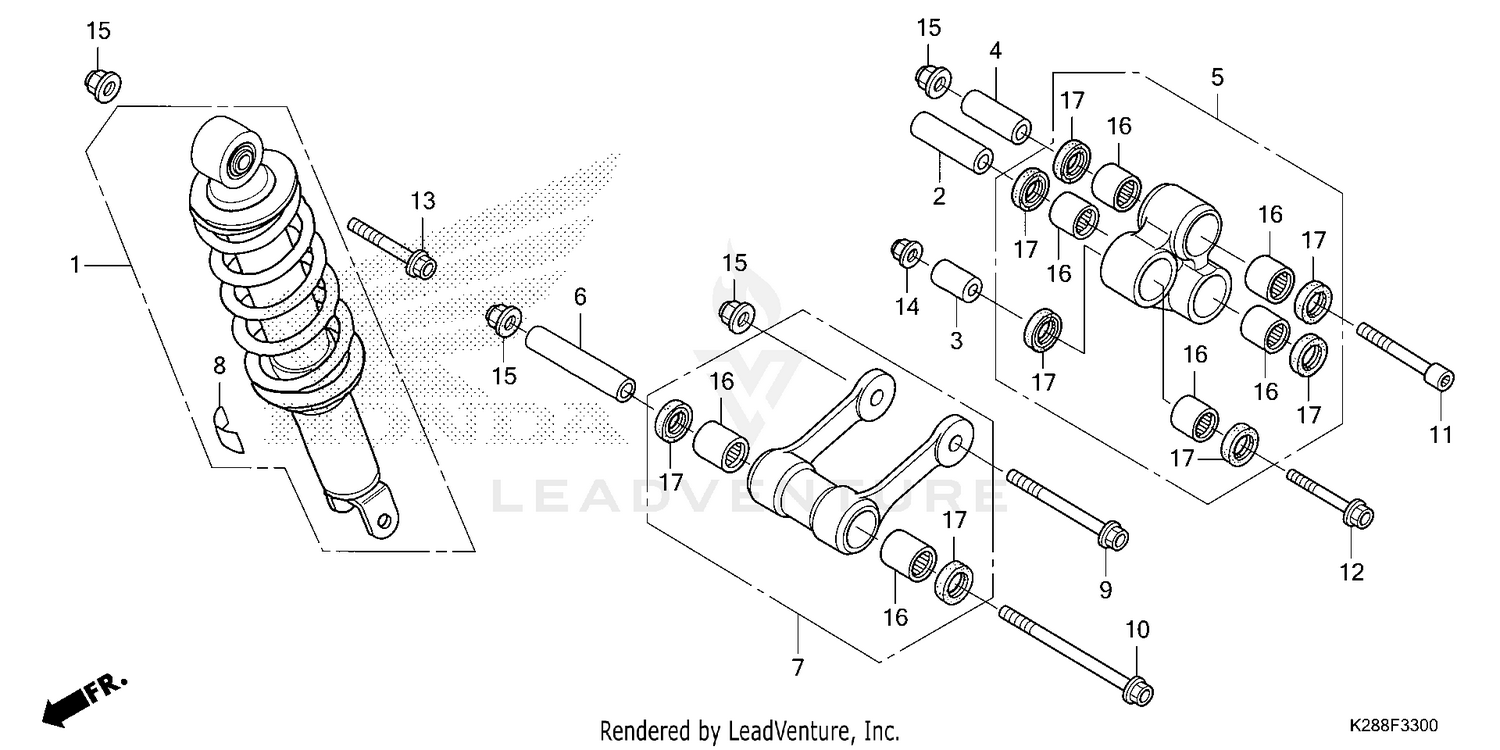

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR.
52400-K28-A61
|
$553.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR A, CUSHION ARM
52462-K28-910
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, DAMPER (LOWER)
52463-K28-910
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR B, CUSHION ARM
52464-K28-910
|
$23.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM SUB-ASSY., CUSHION
52465-K28-910
|
$263.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, CONNECTING ROD
52472-K28-910
|
$30.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD SUB-ASSY., CUSHION CONNECTING
52475-K28-910
|
$225.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, RR. DAMPER (ENGLISH)
87516-KRH-901
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (10X95)
90102-K28-910
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X121)
90106-K28-910
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SOCKET (10X68)
90128-K28-910
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (8X48)
90150-K28-910
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (10X54)
90152-K28-910
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE SPECIAL (8MM)
90303-K28-911
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE (10MM) (PT)
90304-KYA-601
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, NEEDLE (17X24X17) (KOYO)
91071-MY1-005
|
$23.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
