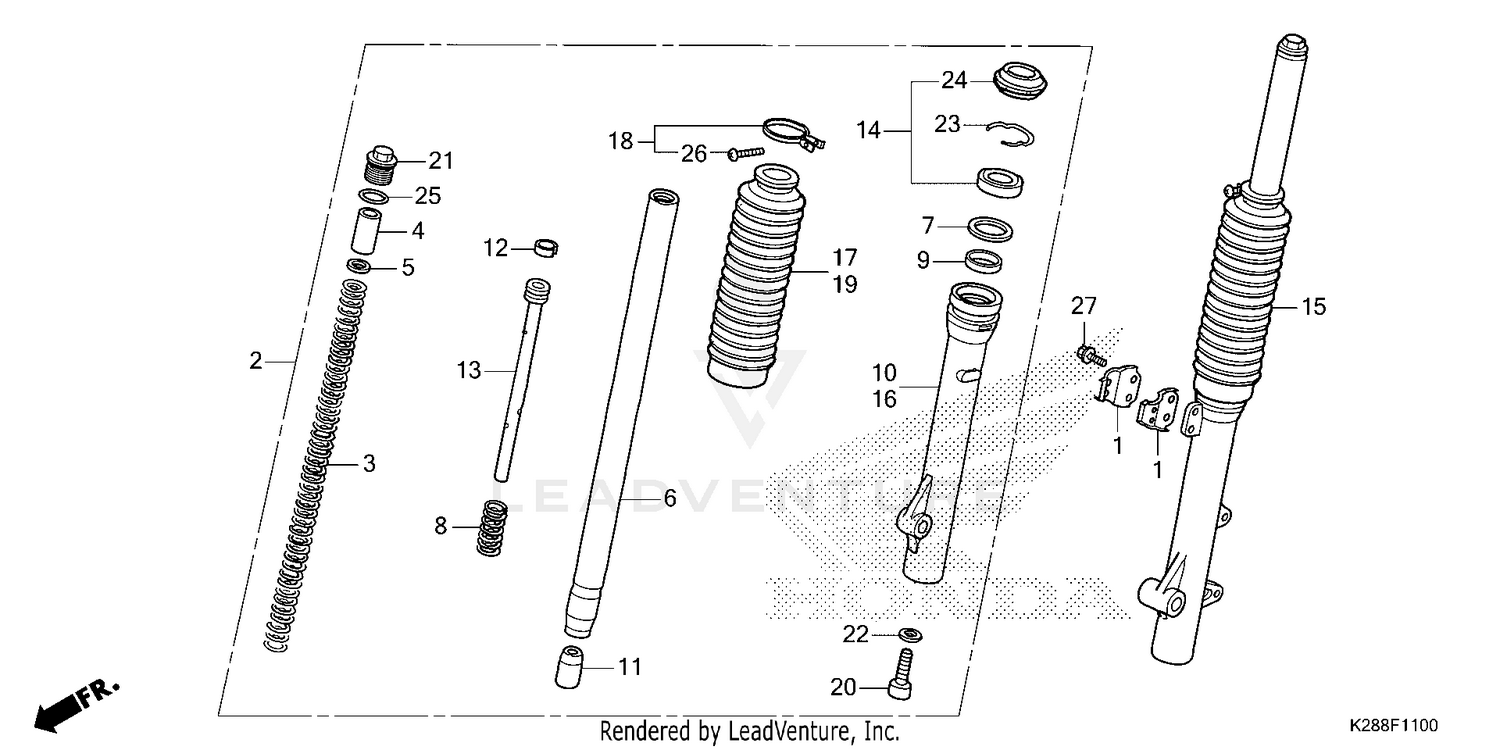

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP A, BRAKE HOSE
45461-KRH-900
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK ASSY., R. FR.
51400-K28-A61
|
$611.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, FR. FORK
51401-K28-A61
|
$57.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, SPRING
51402-K28-A61
|
$11.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, SPRING
51403-K28-911
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, FR. FORK
51410-K28-A61
|
$281.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, OIL SEAL (CHUANNAN ABSORBER)
51412-GGC-901
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, REBOUND
51413-KRH-901
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, FR. FORK (CHUANNAN ABSORBER)
51414-GFM-J11
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE, R. (LOWER)
51420-K28-911
|
$272.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, OIL LOCK
51432-KRH-901
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, PISTON
51437-KRH-901
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, SEAT
51440-K28-A61
|
$39.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL SET, FR. FORK
51490-KRH-901
|
$24.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
FORK ASSY., L. FR.
51500-K28-A61
|
$611.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
CASE, L. (LOWER)
51520-K28-A61
|
$294.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT, R. FR. FORK
51611-K28-A61
|
$52.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, FR. FORK BOOT (CHUANNAN ABSORBER)
51612-KTJ-C00
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOOT, L. FR. FORK
51616-K28-A61
|
$52.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (8X30) (CHUANNAN ABSORBER)
90116-KRF-H71
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FR. FORK
90123-KRF-H71
|
$17.21 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPECIAL (8MM) (CHUANNAN ABSORBER)
90544-KRF-H71
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING, OIL SEAL STOPPER (CHUANNAN ABSORBER)
90651-KRF-H71
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL
91254-KRH-901
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (22X2.8) (CHUANNAN ABSORBER)
91351-KRF-H71
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (3X20)
93500-03020-0G
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
