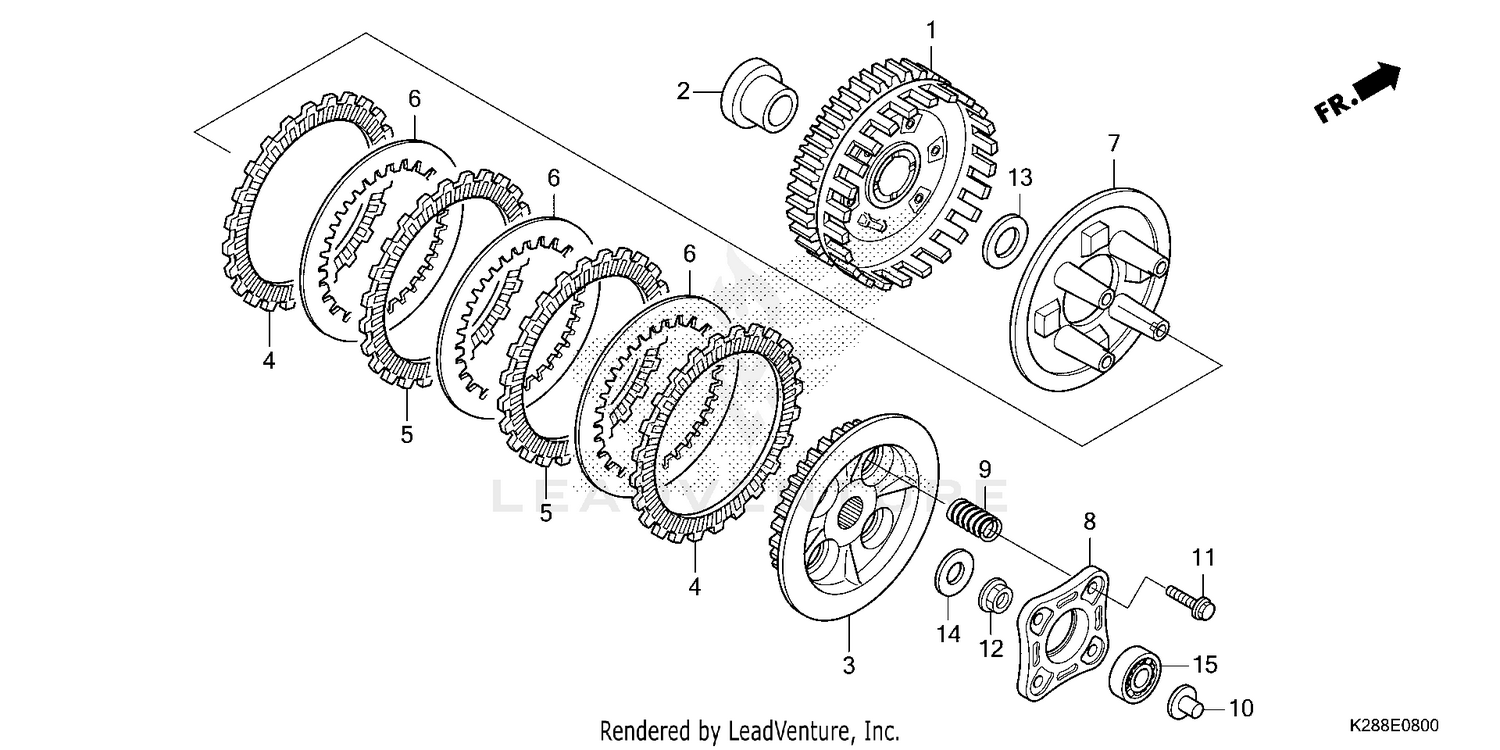

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH OUTER
22100-KYY-901
|
$328.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CLUTCH (OUTER)
22115-KWS-900
|
$17.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
CENTER, CLUTCH
22120-KWS-901
|
$77.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
DISK, CLUTCH FRICTION
22201-KWS-901
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISK B, CLUTCH FRICTION
22204-KWS-901
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH
22321-KWB-601
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH PRESSURE
22355-KWS-901
|
$46.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH LIFTER
22361-KFM-900
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CLUTCH
22401-KYY-901
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, CLUTCH LIFTER
22847-KCC-900
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SPECIAL FLANGE (6X25)
90050-KFL-850
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPECIAL FLANGE (14MM)
90202-KRM-840
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, THRUST (17MM)
90403-KPH-900
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (14.2X26X3)
90432-KPT-A00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (6200)
91016-KZV-J01
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
