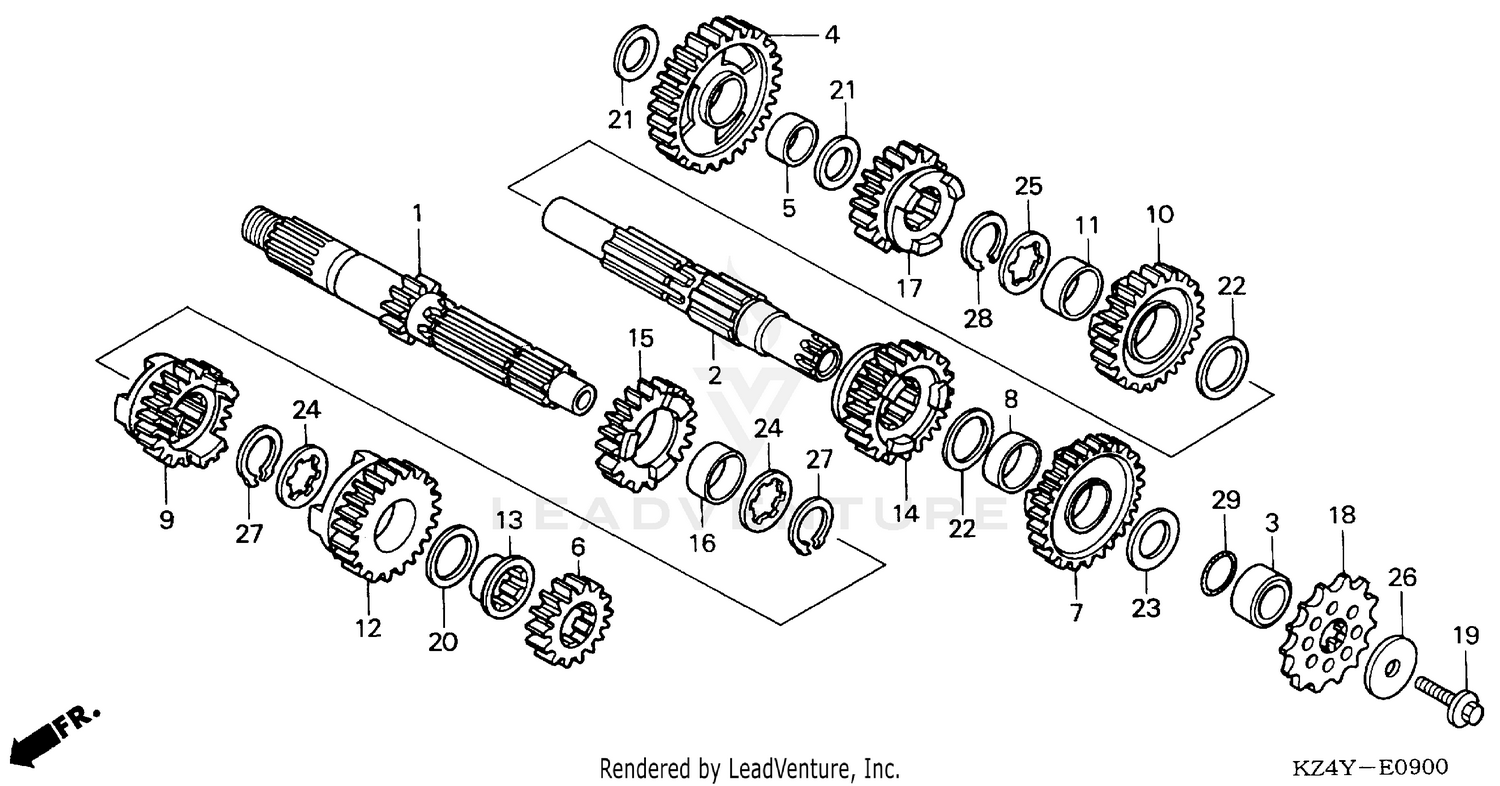

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (14T)
23210-KZ4-A90
|
$84.01 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT
23221-KZ4-A90
|
$93.88 | ||
|
Unavailable |
|||
|
#3
COLLAR, COUNTERSHAFT
23225-KS6-000
|
$19.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT LOW
23411-KZ4-J00
|
$88.20 | ||
|
Unavailable |
|||
|
#5
COLLAR (17MM)
23413-KZ4-J00
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT SECOND (15T)
23421-KZ4-L20
|
$39.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT SECOND (15T)
23421-KZ4-000
Superseded by 23421-KZ4-L20
|
$39.33 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT SECOND (28T)
23431-KZ4-J10
|
$51.84 | ||
|
Unavailable |
|||
|
#8
COLLAR (22MM)
23432-KZ4-J00
|
$9.12 | ||
|
Unavailable |
|||
|
#9
GEAR, MAINSHAFT THIRD
23441-KZ4-J00
|
$80.15 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT THIRD
23451-KZ4-J00
|
$90.43 | ||
|
Unavailable |
|||
|
#11
COLLAR, COUNTERSHAFT THIRD GEAR
23452-KZ4-J00
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, MAINSHAFT FOURTH (21T)
23461-KZ4-J10
|
$35.77 | ||
|
Unavailable |
|||
|
#13
COLLAR, MAINSHAFT FOURTH GEAR
23462-KZ4-J00
|
$24.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, COUNTERSHAFT FOURTH
23471-KZ4-J00
|
$88.20 | ||
|
Unavailable |
|||
|
#15
GEAR, MAINSHAFT FIFTH (23T)
23471-KZ4-010
|
$108.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR (20MM)
23472-KZ4-000
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, COUNTERSHAFT FIFTH
23481-KZ4-J00
|
$81.54 | ||
|
Unavailable |
|||
|
#18
SPROCKET, DRIVE (13T)
23803-KS6-700
|
$33.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (13T)
23803-KZ4-J10
Superseded by 23803-KS6-700
|
$33.55 | ||
|
Unavailable |
|||
|
#19
BOLT, UBS (8X33)
90112-413-000
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, THRUST (23.1X28X1)
90401-KZ4-J00
|
$4.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, THRUST (17.2MM)
90446-357-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, THRUST (22X30X1)
90452-KZ4-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (20X30X1.5)
90453-KZ4-000
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPLINE (20MM)
90461-444-000
|
$6.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, SPLINE (22MM)
90464-444-000
|
$6.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, SPRING (8X40)
90501-KA3-741
Superseded by 90501-HB9-003
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#27
SET-RING (20MM)
90601-360-000
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
SET-RING, COUNTER SECOND
90602-360-000
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (20MM)
91351-KA3-711
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
