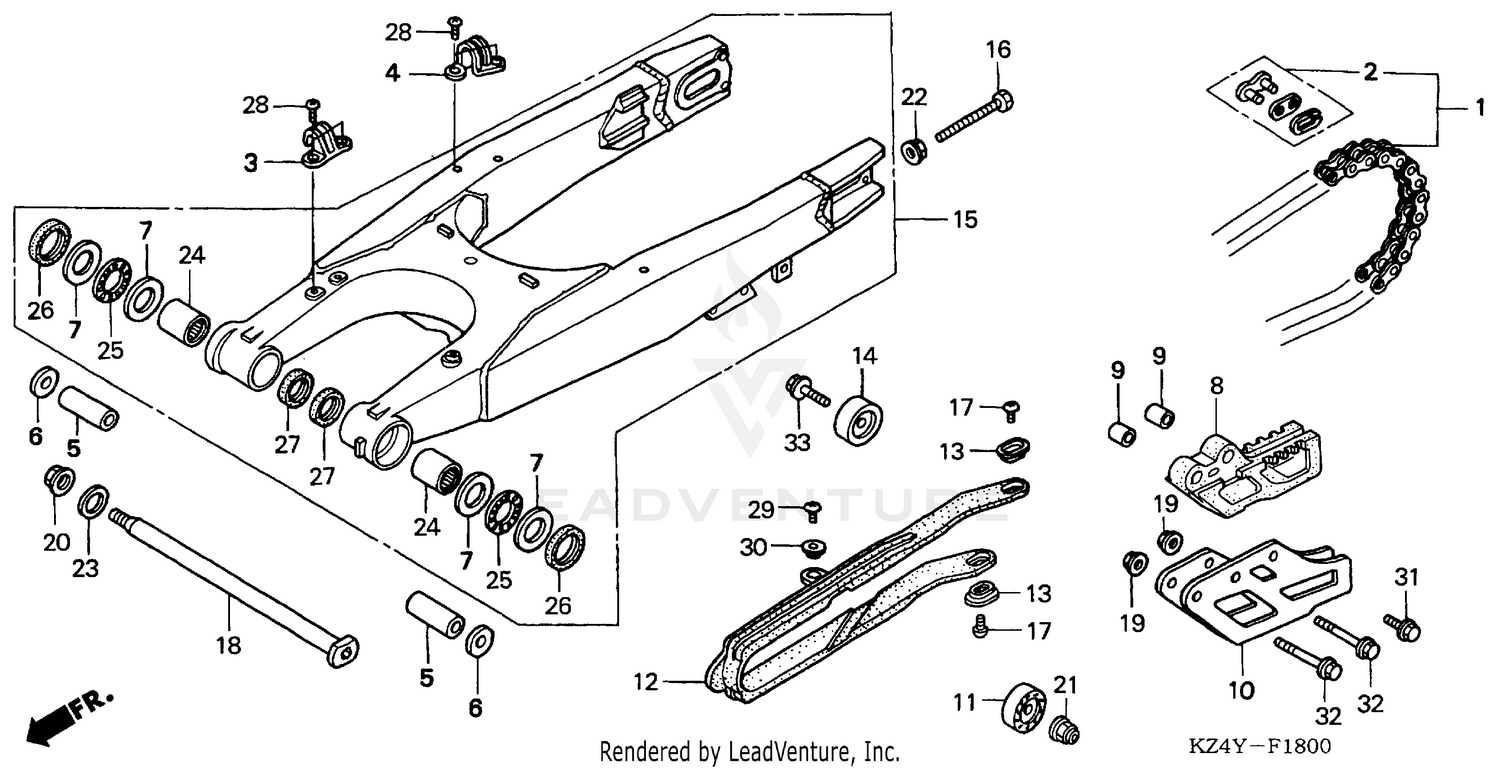

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, DRIVE (RK520TXZ-116RJ) (RK EXCEL)
40530-KZ4-J21
Superseded by 40530-MEN-A32
|
$180.85 | ||
|
Available to order. Add to View Price |
|||
|
#1
CHAIN, DRIVE (RK520KZ6-116L) (RK EXCEL)
40530-KZ4-J22
|
$122.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK (DAIDO) MASTER LINK (RK EXCEL)
40531-KZ4-B01
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK (RK EXCEL)
40531-KZ4-B02
|
$4.33 | ||
|
Unavailable |
|||
|
#3
GUIDE, RR. BRAKE HOSE
43468-KS6-700
|
$13.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GUIDE, RR. BRAKE HOSE
43468-KZ3-B00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, SWINGARM SIDE (54MM)
52141-KZ4-890
Superseded by 52142-KZ4-J40
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, SWINGARM SIDE
52142-KZ3-860
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SWINGARM SIDE
52143-KZ3-860
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, CHAIN
52146-KZ3-J10
|
$33.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, CHAIN GUIDE
52148-MAC-780
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CHAIN GUIDE
52156-ML3-910
|
$71.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROLLER, CHAIN
52175-KZ3-J10
|
$36.53 | ||
|
Unavailable |
|||
|
#12
SLIDER, CHAIN
52170-KZ4-J20
|
$60.30 | ||
|
Unavailable |
|||
|
#13
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
ROLLER, CHAIN TENSIONER
52158-KA3-831
|
$61.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SWINGARM SUB-ASSY., RR.
52200-KZ4-J20
Superseded by 52200-KZ4-J30
|
$723.55 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (8X49)
90106-KS6-700
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (5X8)
90115-KV3-700
|
$2.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, SWINGARM
90117-KZ3-B00
|
$60.38 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, U HEX. (14MM)
90305-KZ3-B01
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U (8MM)
90309-ML3-791
|
$5.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, HEX. (8MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER (26X14X2.8)
90501-GAH-000
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (26X14X2.8)
90501-GBL-730
Superseded by 90501-GAH-000
|
$8.33 | ||
|
Unavailable |
|||
|
#24
BEARING, NEEDLE (THOMPSON)
91071-MJ0-003
Superseded by 91071-MJ0-004
|
$44.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, NEEDLE THRUST
91072-KZ3-861
|
$16.31 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (30X37X4)
91253-KZ3-861
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#27
DUST SEAL (22X29X4) (ARAI)
91283-ML7-003
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN (5X8)
93500-05008-0A
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (5X8)
93500-05008-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, PLAIN (5MM)
94103-05700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X12)
96300-06012-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X12)
96400-06012-00
Superseded by 96300-06012-00
|
$1.07 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (6X50)
96400-06050-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (8X35)
96400-08035-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
